Fitting set 1 x 3.5" + 1 x 1.5" without pop-up control C-overflow modified sieve

Skip to content Jump to the navigation menu

                    Article Number
                    225079


Added to Your Shopping Cart

Spare Parts

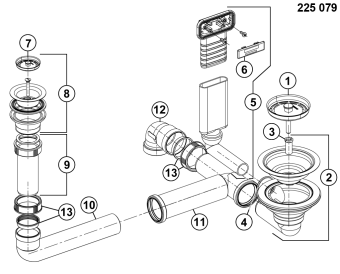

Valid From	Name
Position Number	1	Art. ID	118939	Valid From	01/2011	Name	Basket strainer 3.5" RADIAL manual closing (20 drain trenches)
Position Number	2	Art. ID	118818	Valid From	01/2011	Name	Valve 3.5" manual, white
Position Number	3	Art. ID	118446	Valid From	01/2011	Name	Hollow screw M12x1.75, length 30 mm
Position Number		Art. ID	125718	Valid From	01/2011	Name	Hollow screw key valve cup stainless steel
Position Number	4	Art. ID	118812	Valid From	01/2011	Name	Blind plug set for overflow connection valve
Position Number	5	Art. ID	119512	Valid From	01/2011	Name	Overflow C-overflow
Position Number		Art. ID	225345	Valid From	01/2011	Name	Overflow Rectangular C-overflow with ball joint (replaced by 119512)
Position Number	6	Art. ID	225091	Valid From	01/2011	Name	Cover C-overflow SteelArt stainless steel satin polish
Position Number		Art. ID	225090	Valid From	01/2011	Name	Cover C-overflow SteelArt stainless steel brushed finish
Position Number	7	Art. ID	118476	Valid From	01/2011	Name	Basket strainer 1.5" RADIAL non-closing (16 drain trenches)
Position Number	8	Art. ID	119011	Valid From	01/2011	Name	Drain valve 1.5" manual strainer basket radial, white
Position Number	9	Art. ID	119144	Valid From	01/2011	Name	Pipe flange with nut Ø 40 mm, length 250 mm
Position Number	10	Art. ID	118815	Valid From	01/2011	Name	L-connection pipe Ø 40 mm, length 50 x 250 mm
Position Number	11	Art. ID	118814	Valid From	01/2011	Name	T-piece Ø 40 mm 140/170
Position Number	12	Art. ID	118823	Valid From	01/2011	Name	Drain angle to siphon Ø 40 mm, length 42 x 70 mm
Position Number	13	Art. ID	118813	Valid From	01/2011	Name	Union nut with seal Ø 40 mm
Position Number	99	Art. ID	225086	Valid From	01/2011	Name	Retrofit set for pull-pop-up control system design modern sieve (without pull knob) Spareparts
Position Number		Art. ID	119293	Valid From	01/2011	Name	Pop-up turning unit stainless steel round
Position Number		Art. ID	225112	Valid From	01/2011	Name	Pull pop-up control round chrome plastic
Position Number		Art. ID	221339	Valid From	01/2011	Name	Pull pop-up control round chrome (metal) Spareparts
Position Number		Art. ID	221336	Valid From	01/2011	Name	Pull pop-up control round brass stainless steel finish Spareparts
Position Number		Art. ID	226540	Valid From	01/2011	Name	Pull pop-up control round stainless steel
Position Number		Art. ID	222115	Valid From	01/2011	Name	Pull pop-up control round stainless steel satin polish Spareparts
Position Number		Art. ID	222118	Valid From	01/2011	Name	Pull pop-up control round stainless steel brushed finish Spareparts
Position Number		Art. ID	221901	Valid From	01/2011	Name	Pull pop-up control LEVOS chrome Spareparts
Position Number		Art. ID	221940	Valid From	01/2011	Name	Pull pop-up control LEVOS stainless steel satin polish Spareparts
Position Number		Art. ID	221941	Valid From	01/2011	Name	Pull pop-up control LEVOS stainless steel brushed finish Spareparts
Position Number		Art. ID	221902	Valid From	01/2011	Name	Pull pop-up control QUADRIS chrome-plated Spareparts
Position Number		Art. ID	221942	Valid From	01/2011	Name	Pull pop-up control QUADRIS stainless steel satin polish Spareparts
Position Number		Art. ID	221943	Valid From	01/2011	Name	Pull pop-up control QUADRIS stainless steel brushed finish Spareparts
Position Number		Art. ID	521294	Valid From	01/2011	Name	Pull pop-up control LIVIA chrome Spareparts
Position Number		Art. ID	521295	Valid From	01/2011	Name	Pull pop-up control LIVIA antique brass Spareparts
Position Number		Art. ID	521296	Valid From	01/2011	Name	Pull pop-up control LIVIA mangan Spareparts
Position Number	100	Art. ID	515399	Valid From	01/2011	Name	BLANCO SensorControl-BSC sensor-controlled remote drain control Spareparts
