Fitting set 1 x 3.5" + 1 x 1.5" without pop-up control overflow rectangular (replaced by 225079 and 118822)

Skip to content Jump to the navigation menu

                    Article Number
                    222446


no longer available since 03/2021

Added to Your Shopping Cart

Spare Parts

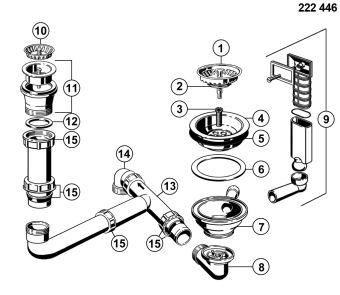

Valid From	Name
Position Number	1	Art. ID	125561	Valid From	02/2010	Name	Basket strainer 3.5" pin Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	117497	Valid From	02/2010	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number	3	Art. ID	125572	Valid From	02/2010	Name	Hollow screw M12 x 1.5 length = 28 mm VI
Position Number		Art. ID	125718	Valid From	02/2010	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	4	Art. ID	125568	Valid From	02/2010	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	5	Art. ID	125570	Valid From	02/2010	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125661	Valid From	02/2010	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	7	Art. ID	116313	Valid From	02/2010	Name	Valve top 3 1/2" with overflow 30 mm VI, white
Position Number	8	Art. ID	117515	Valid From	02/2010	Name	Valve bottom M12 overflow horizontal VI, white
Position Number	9	Art. ID	117518	Valid From	02/2010	Name	Overflow rectangular pluggable complete VI
Position Number	10	Art. ID	125926	Valid From	02/2010	Name	Basket strainer 1.5" no pin no seal Ø= 51 mm (18 drainage slots) VI
Position Number	12	Art. ID	125585	Valid From	02/2010	Name	Seal 1 1/2" 36 x 45 x 2 VI
Position Number	13	Art. ID	139784	Valid From	02/2010	Name	T-piece Ø= 40 mm x 134 mm complete VI
Position Number	14	Art. ID	118823	Valid From	02/2010	Name	Drain angle to siphon Ø 40 mm, length: 42 x 70 mm EB
Position Number		Art. ID	125670	Valid From	02/2010	Name	Drain angle to siphon 1,5" Ø 40 mm length: 70 mm (replaced by 118823 )VI
Position Number	15	Art. ID	125669	Valid From	02/2010	Name	Cap nut with seal Ø=40 mm VI
Position Number	99	Art. ID	222441	Valid From	02/2010	Name	Retrofit set 1 x 3.5'' with turning handle chrome with overflow Spareparts
Position Number		Art. ID	218941	Valid From	02/2010	Name	Retrofit set incl. pull knob plastic chromed Spareparts
Position Number		Art. ID	223162	Valid From	02/2010	Name	Retrofit set (without pull knob) VI Spareparts
Position Number		Art. ID	225112	Valid From	02/2010	Name	Pull pop-up control round plastic
Position Number		Art. ID	221339	Valid From	02/2010	Name	Pop-up control round chrome (metal) Spareparts
Position Number		Art. ID	221336	Valid From	02/2010	Name	Pop-up control round stainless steel finish Spareparts
Position Number		Art. ID	226540	Valid From	02/2010	Name	Pull up control round stainless steel
Position Number		Art. ID	222115	Valid From	02/2010	Name	Pull pop-up control round stainless steel satin polish Spareparts
Position Number		Art. ID	222118	Valid From	02/2010	Name	Pull pop-up control round stainless steel brushed finish Spareparts
Position Number		Art. ID	221901	Valid From	02/2010	Name	Pull pop-up control LEVOS chrome Spareparts
Position Number		Art. ID	221940	Valid From	02/2010	Name	Pull pop-up control LEVOS stainless steel satin polish Spareparts
Position Number		Art. ID	221941	Valid From	02/2010	Name	Pull pop-up control LEVOS stainless steel brushed finish Spareparts
Position Number		Art. ID	221902	Valid From	02/2010	Name	Pull pop-up control QUADRIS chrome Spareparts
Position Number		Art. ID	221942	Valid From	02/2010	Name	Pull pop-up control BLANCO QUADRIS stainless steel satin polish Spareparts
Position Number		Art. ID	221943	Valid From	02/2010	Name	Pull pop-up control QUADRIS stainless steel brushed finish Spareparts
Position Number		Art. ID	521294	Valid From	02/2010	Name	Pull pop-up control LIVIA chrome Spareparts
Position Number		Art. ID	521295	Valid From	02/2010	Name	Pull pop-up control LIVIA antique brass Spareparts
Position Number		Art. ID	521296	Valid From	02/2010	Name	Zug-Ablauffernbedienung LIVIA mangan Spareparts
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC Spareparts
Position Number		Art. ID	515400	Valid From	02/2010	Name	SensorControl-BSC Spareparts
Position Number		Art. ID	125555	Valid From	02/2010	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
