Fitting set 1 x 3.5" - 1 x 1.5" with pop-up control without overflow (replaced by 224048)

Skip to content Jump to the navigation menu

                    Article Number
                    223288


no longer available since 11/2010

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	125555	Valid From	07/2009	Name	Basket strainer 3.5" pop up Ø 82 mm (24 drain trenches) Spareparts
Position Number	2	Art. ID	117497	Valid From	07/2009	Name	Seal base
Position Number	3	Art. ID	125572	Valid From	07/2009	Name	Hollow screw M12x1.5, length 28 mm
Position Number		Art. ID	125718	Valid From	07/2009	Name	Hollow screw key valve cup stainless steel
Position Number	4	Art. ID	125568	Valid From	07/2009	Name	Valve cup 3.5" hollow screw stainless steel
Position Number	5	Art. ID	125570	Valid From	07/2009	Name	Seal valve cup 111.5 x 85 x 1
Position Number	6	Art. ID	125661	Valid From	07/2009	Name	Seal drain valve 105 x 90 x 4 mm
Position Number	7	Art. ID	117504	Valid From	07/2009	Name	Valve top part 3.5" without overflow connection, white
Position Number	8	Art. ID	117516	Valid From	07/2009	Name	Valve bottom part M12 with Bowden cable, white
Position Number	9	Art. ID	128628	Valid From	07/2009	Name	Bowden cable 600 mm long with nut
Position Number	10	Art. ID	119293	Valid From	07/2009	Name	Pop-up turning unit stainless steel round
Position Number		Art. ID	118321	Valid From	07/2009	Name	Pop-up turning unit stainless steel (replaced by 119293)
Position Number		Art. ID	217830	Valid From	07/2009	Name	Pop-up turning unit stainless steel thread grey (replaced by 118321)
Position Number	11	Art. ID	125926	Valid From	07/2009	Name	Basket strainer 1.5" non-closing Ø 51 mm (18 drain trenches)

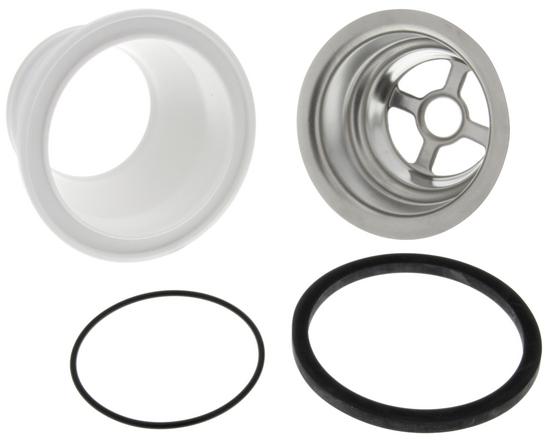

Position Number	12	Art. ID	117940	Valid From	07/2009	Name	Valve top part 1.5", gasket, valve cup stainless steel, white

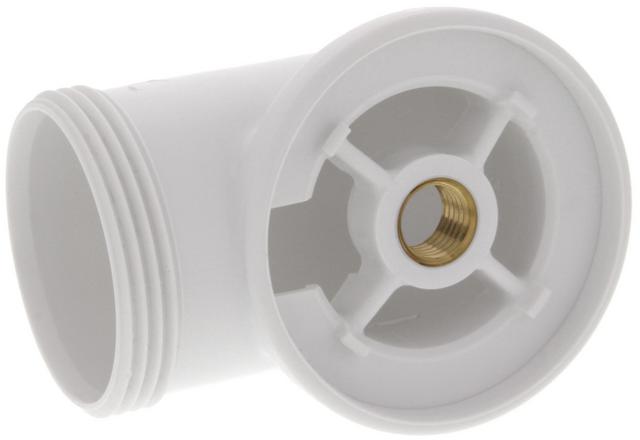

Position Number	13	Art. ID	117515	Valid From	07/2009	Name	Valve bottom part M12 outlet horizontal, white
Position Number	14	Art. ID	116729	Valid From	07/2009	Name	L-connection without thread Ø 40 mm, length 90 x 340 mm
Position Number		Art. ID	125672	Valid From	07/2009	Name	L-connection pipe Ø 40 mm, length 70 x 180 mm (replaced by 116729)
Position Number	15	Art. ID	125671	Valid From	07/2009	Name	T-piece Ø 40 mm x 230 mm complete
Position Number	16	Art. ID	118823	Valid From	07/2009	Name	Drain angle to siphon Ø 40 mm, length 42 x 70 mm
Position Number		Art. ID	125670	Valid From	07/2009	Name	Drain angle to siphon 1.5" Ø 40 mm, length 70 mm (replaced by 118823)
Position Number	17	Art. ID	125669	Valid From	07/2009	Name	Union nut with seal Ø 40 mm
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC sensor-controlled remote drain control Spareparts
Position Number		Art. ID	515400	Valid From	07/2009	Name	BLANCO SensorControl-BSC (replaced by 515399) Spareparts
