Fitting set 1 x 3.5" pop-up control round horizontal overflow (1x) (replaced by 224039)

Skip to content Jump to the navigation menu

                    Article Number
                    216428


no longer available since 09/2011

Added to Your Shopping Cart

Spare Parts

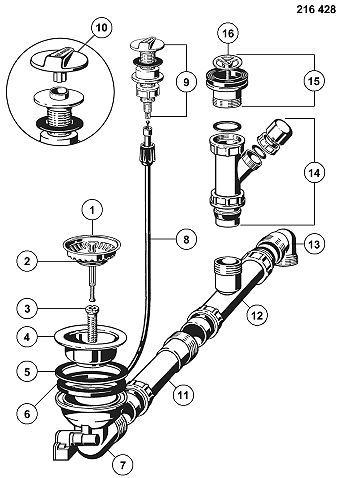

Valid From	Name
Position Number	1	Art. ID	125555	Valid From	09/2002	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	117497	Valid From	05/2008	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number		Art. ID	125556	Valid From	09/2002	Name	Disc with seal Ø=53mm (replaced by 117497) VI
Position Number	3	Art. ID	125572	Valid From	09/2002	Name	Hollow screw M12 x 1.5 length = 28 mm VI
Position Number		Art. ID	125718	Valid From	09/2002	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	4	Art. ID	125568	Valid From	09/2002	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	5	Art. ID	125570	Valid From	09/2002	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125661	Valid From	09/2002	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	7	Art. ID	125573	Valid From	09/2002	Name	Drain valve 3.5" with overflow +bowden cable, white
Position Number		Art. ID	125641	Valid From	09/2002	Name	Sealing washer for overflow d=25 mm VI

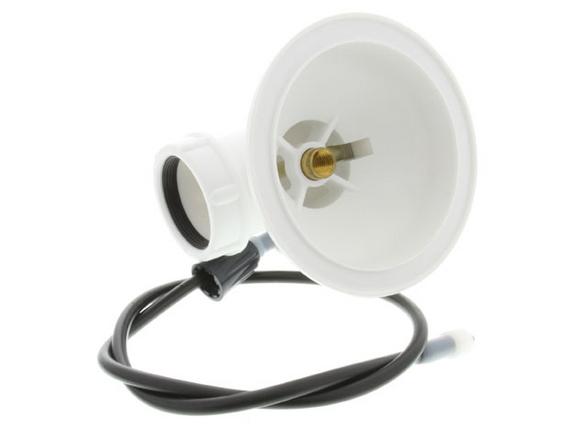

Position Number		Art. ID	127766	Valid From	09/2002	Name	Drain valve with bowden cable 600 VI (replaced by 125573 and 125641), white
Position Number	8	Art. ID	128628	Valid From	09/2002	Name	Bowden cable 600 mm with nut VI
Position Number	9	Art. ID	119293	Valid From	09/2002	Name	Pop-up control stainless steel round BL (EB)
Position Number		Art. ID	118321	Valid From	09/2002	Name	Pop-up turning unit stainless steel complete (replaced by 119293) EB
Position Number		Art. ID	217830	Valid From	09/2002	Name	Pop-up turning unit stainless steel complete grey (replaced by 118321 VI
Position Number	10	Art. ID	138077	Valid From	09/2002	Name	Handle turning unit (replaced by 217830)
Position Number	11	Art. ID	118816	Valid From	09/2002	Name	Extension pipe Ø 40 mm, length: 250 mm BL( EB)

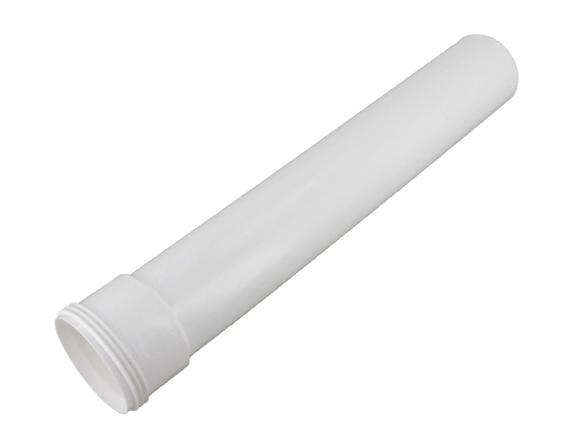

Position Number		Art. ID	116065	Valid From	09/2002	Name	Extension pipe Ø 40 mm, length: 250 mm (replaced by 118816) VI
Position Number		Art. ID	139247	Valid From	09/2002	Name	Connecting pipe with 1.5" thread Ø 40 mm, length: 110 mm (replaced by 116065)

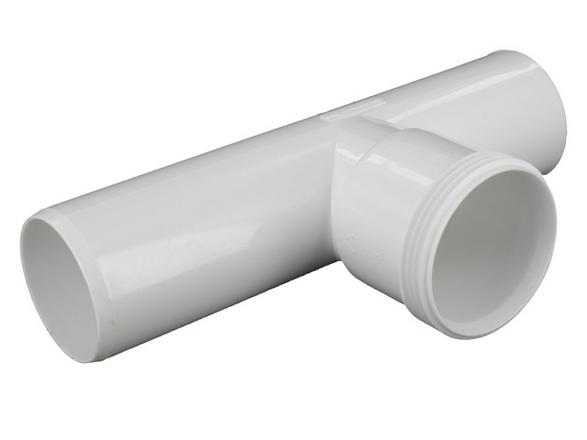

Position Number	12	Art. ID	139232	Valid From	09/2002	Name	T-piece 11/2 x 40 x 160 mm VI
Position Number	13	Art. ID	118823	Valid From	09/2002	Name	Drain angle to siphon Ø 40 mm, length: 42 x 70 mm EB
Position Number		Art. ID	125670	Valid From	09/2002	Name	Drain angle to siphon 1,5" Ø 40 mm length: 70 mm (replaced by 118823 )VI

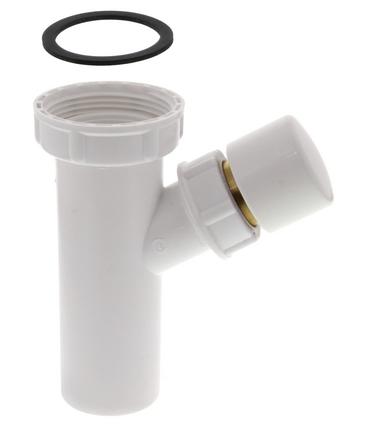

Position Number	14	Art. ID	139246	Valid From	09/2002	Name	Connecting pipe coil 1" airproof Ø 40 mm, length: 110 mm

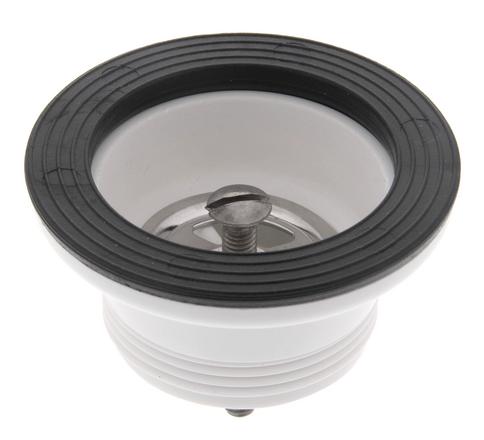

Position Number	15	Art. ID	139244	Valid From	09/2002	Name	Valve complete without sieve + overflow ros. f.screw M6 RONDO PRO, white

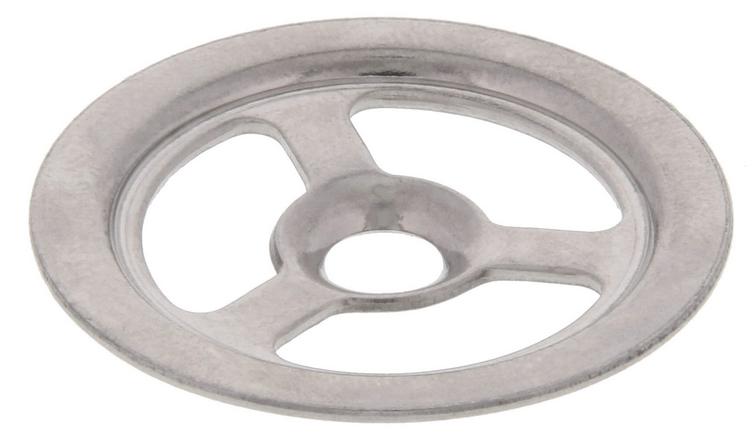

Position Number	16	Art. ID	128657	Valid From	09/2002	Name	Rosette overflow Ø= 36 mm stainless steel VI
