Fitting set 1 x 3.5" with pop-up control C-overflow

Skip to content Jump to the navigation menu

                    Article Number
                    223138


New turning unit (119293) since 22.03.2012!

Added to Your Shopping Cart

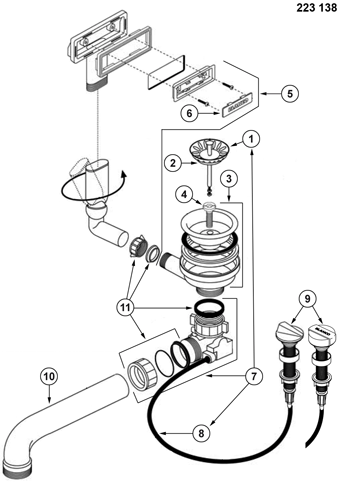

Spare Parts

Valid From	Name
Position Number	1	Art. ID	119146	Valid From	10/2008	Name	Basket strainer 3.5" pop up (18 drain trenches) Spareparts
Position Number	2	Art. ID	116116	Valid From	10/2008	Name	Seal basket Ø35/42 mm silicone (improved)
Position Number	3	Art. ID	120665	Valid From	10/2008	Name	Valve 3.5" with overflow connection thread 1/2", white
Position Number	4	Art. ID	119741	Valid From	10/2008	Name	Hollow screw thread 1/4", length 35 mm
Position Number		Art. ID	125718	Valid From	10/2008	Name	Hollow screw key valve cup stainless steel
Position Number	5	Art. ID	117553	Valid From	10/2008	Name	Overflow C-overflow rectangular length 84 mm (SILGRANIT sinks)
Position Number	6	Art. ID	117552	Valid From	10/2008	Name	Cover clip for Overflow rectangular
Position Number	7	Art. ID	118979	Valid From	10/2008	Name	Retrofit set 3,5'' eccentric with Bowden standard thread 1,5" (e.g. for PANOR) (without pull knob) AL Spareparts
Position Number	8	Art. ID	139373	Valid From	10/2008	Name	Bowden cable 700 mm long
Position Number	9	Art. ID	119293	Valid From	10/2008	Name	Pop-up turning unit stainless steel round
Position Number	10	Art. ID	116333	Valid From	10/2008	Name	Drain angle to siphon Ø 40 mm, length 55 x 245 mm
Position Number	11	Art. ID	120676	Valid From	10/2008	Name	Seal set and screws
Position Number	100	Art. ID	515399	Valid From	10/2008	Name	BLANCO SensorControl-BSC sensor-controlled remote drain control Spareparts
