Fitting set 1 x 3.5" with pop-up control overflow round/horizontal

                    Article Number
                    224039


no longer available since 04/2024

Added to Your Shopping Cart

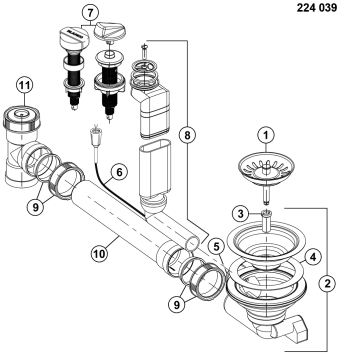

Spare Parts

Valid From	Name
Position Number	1	Art. ID	118150	Valid From	09/2011	Name	Basket strainer 3.5" pop up (18 drain trenches)
Position Number	2	Art. ID	118819	Valid From	09/2011	Name	Drain valve 3.5" with overflow connection + Bowden cable, white
Position Number	3	Art. ID	118446	Valid From	09/2011	Name	Hollow screw M12x1.75, length 30 mm
Position Number	4	Art. ID	118453	Valid From	09/2011	Name	Seal under stainless cup 108 x 86 x 1
Position Number	5	Art. ID	118812	Valid From	09/2011	Name	Blind plug set for overflow connection valve
Position Number	6	Art. ID	118451	Valid From	09/2011	Name	Bowden cable 700 mm long
Position Number	7	Art. ID	119293	Valid From	09/2011	Name	Pop-up turning unit stainless steel round
Position Number		Art. ID	118321	Valid From	09/2011	Name	Pop-up turning unit stainless steel (replaced by 119293)
Position Number	8	Art. ID	118938	Valid From	09/2011	Name	Overflow horizontal round with ball joint
Position Number	9	Art. ID	118813	Valid From	09/2011	Name	Union nut with seal Ø 40 mm
Position Number	10	Art. ID	118816	Valid From	09/2011	Name	Extension pipe Ø 40 mm, length 250 mm
Position Number	11	Art. ID	225616	Valid From	09/2011	Name	Air valve Ø 40 mm, length 107 x 261-275 mm
Position Number		Art. ID	118782	Valid From	09/2011	Name	T-piece with vent (replaced by 225616)

Usage
