Fitting set 1 x 3.5" with pull pop-up control overflow angular

Skip to content Jump to the navigation menu

                    Article Number
                    224295


Added to Your Shopping Cart

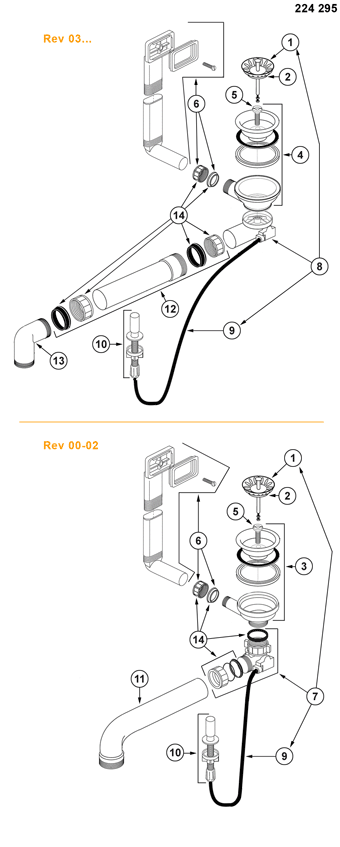

Spare Parts

Valid From	Name
Position Number	1	Art. ID	119146	Valid From	05/2009	Name	Pop-up Basket strainer 3.5" universal (18 drainage slots) AL Spareparts
Position Number	2	Art. ID	116116	Valid From	05/2009	Name	Seal for basket strainer 3.5" Ø=51 mm since 10/2006 (modified) AL
Position Number	3	Art. ID	120665 (0 / A)	Valid From	05/2009	Name	Valve 3.5'' with overflow G 0.5'' AL, white
Position Number	4	Art. ID	120666 (3 / D)	Valid From	03/2012	Name	Valve 3.5" pluggable AL, white
Position Number	5	Art. ID	119741	Valid From	05/2009	Name	Hollow screw G 1/4'' length = 35 mm AL
Position Number		Art. ID	125718	Valid From	05/2009	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	7	Art. ID	118979 (0 / A)	Valid From	05/2009	Name	Retrofit set 3,5'' eccentric with Bowden standard thread 1,5" (e.g. for PANOR) (without pull knob) AL Spareparts
Position Number	8	Art. ID	118981 (3 / D)	Valid From	03/2012	Name	Retrofit set put-on with Bowden standard (without pull knob) AL Spareparts
Position Number	9	Art. ID	139373	Valid From	05/2009	Name	Bowden cable 700 mm AL
Position Number	10	Art. ID	221339	Valid From	05/2009	Name	Pop-up control round chrome (metal) Spareparts
Position Number	11	Art. ID	116333 (0 / A)	Valid From	05/2009	Name	Drain angle to siphon Ø 40 mm, length: 55 x 245 mm AL
Position Number	12	Art. ID	118927 (3 / D)	Valid From	03/2012	Name	Extension pipe Ø 40 mm, length: 250 mm AL
Position Number	13	Art. ID	118518 (3 / D)	Valid From	03/2012	Name	Drain angle 90° Ø 40 mm, length: 53 x 59 mm AL
Position Number	14	Art. ID	120676	Valid From	05/2009	Name	Seal set DN 30/40 AL
Position Number	100	Art. ID	515399	Valid From	05/2009	Name	BLANCO SensorControl-BSC Spareparts
