Fitting set 1 x 3.5" with pull pop-up control overflow round

Skip to content Jump to the navigation menu

                    Article Number
                    224817


Added to Your Shopping Cart

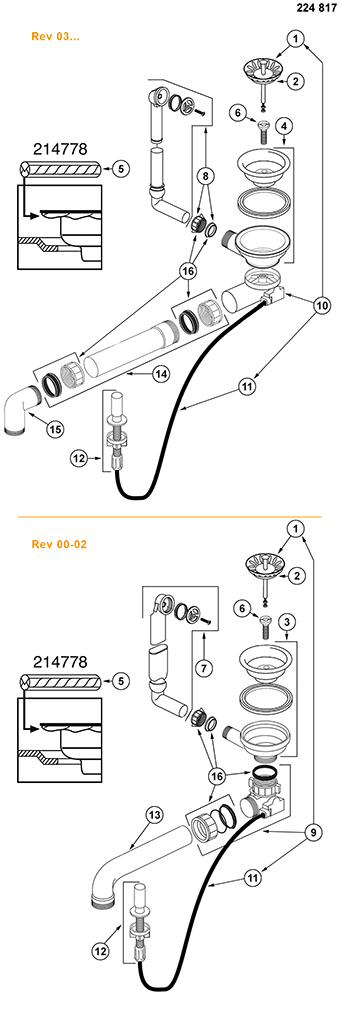

Spare Parts

Valid From	Name
Position Number	1	Art. ID	119146	Valid From	01/2011	Name	Basket strainer 3.5" pop up (18 drain trenches) Spareparts
Position Number	2	Art. ID	116116	Valid From	01/2011	Name	Seal basket Ø35/42 mm silicone (improved)
Position Number	3	Art. ID	123268 (0 / A)	Valid From	01/2011	Name	Valve 3.5" with overflow connection thread 1/2" ceramic, white
Position Number	4	Art. ID	123269 (3 / D)	Valid From	07/2011	Name	Valve 3.5" plug-in ceramic, white
Position Number	5	Art. ID	214778	Valid From	01/2011	Name	Sealing compound ceramic sinks
Position Number	6	Art. ID	118481	Valid From	01/2011	Name	Hollow screw thread 1/4", length 48 mm
Position Number		Art. ID	125718	Valid From	01/2011	Name	Hollow screw key valve cup stainless steel
Position Number	7	Art. ID	126081 (0 / A)	Valid From	01/2011	Name	Overflow set variable length round-oval with bowl Spareparts
Position Number	8	Art. ID	119969 (3 / D)	Valid From	07/2011	Name	Overflow set round-round with ball joint Spareparts
Position Number	9	Art. ID	118979 (0 / A)	Valid From	01/2011	Name	Retrofit set 3,5'' eccentric with Bowden standard thread 1,5" (e.g. for PANOR) (without pull knob) AL Spareparts
Position Number	10	Art. ID	118981 (3 / D)	Valid From	07/2011	Name	Retrofit set put-on with Bowden standard (without pull knob) AL Spareparts
Position Number	11	Art. ID	139373	Valid From	01/2011	Name	Bowden cable 700 mm long
Position Number	12	Art. ID	225112	Valid From	01/2011	Name	Pull pop-up control round chrome plastic
Position Number	13	Art. ID	116333 (0 / A)	Valid From	01/2011	Name	Drain angle to siphon Ø 40 mm, length 55 x 245 mm
Position Number	14	Art. ID	118927 (3 / D)	Valid From	07/2011	Name	Extension pipe Ø 40 mm, length 250 mm
Position Number	15	Art. ID	118518 (3 / D)	Valid From	07/2011	Name	Drain angle 90° Ø 40 mm, length 53 x 59 mm
Position Number	16	Art. ID	120676	Valid From	01/2011	Name	Seal set and screws
Position Number	100	Art. ID	515399	Valid From	01/2011	Name	BLANCO SensorControl-BSC sensor-controlled remote drain control Spareparts
