Fitting set 1 x 3.5" without pop-up control overflow rectangular (replaced by 225564)

Skip to content Jump to the navigation menu

                    Article Number
                    222454


no longer available since 12/2012

Added to Your Shopping Cart

Spare Parts

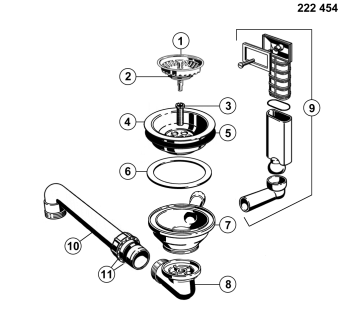

Valid From	Name
Position Number	1	Art. ID	125561	Valid From	07/2009	Name	Basket strainer 3.5" manual closing Ø 82 mm (24 drain trenches) Spareparts
Position Number	2	Art. ID	117497	Valid From	07/2009	Name	Seal base
Position Number	3	Art. ID	125572	Valid From	07/2009	Name	Hollow screw M12x1.5, length 28 mm
Position Number		Art. ID	125718	Valid From	07/2009	Name	Hollow screw key valve cup stainless steel
Position Number	4	Art. ID	125568	Valid From	07/2009	Name	Valve cup 3.5" hollow screw stainless steel
Position Number	5	Art. ID	125570	Valid From	07/2009	Name	Seal valve cup 111.5 x 85 x 1
Position Number	6	Art. ID	125661	Valid From	07/2009	Name	Seal drain valve 105 x 90 x 4 mm
Position Number	7	Art. ID	116313	Valid From	07/2009	Name	Valve top part 3.5" with overflow connection 30 mm, white
Position Number	8	Art. ID	117515	Valid From	07/2009	Name	Valve bottom part M12 outlet horizontal, white
Position Number	9	Art. ID	117518	Valid From	07/2009	Name	Overflow plug-in rectangular
Position Number	10	Art. ID	139202	Valid From	07/2009	Name	Drain angle to siphon Ø 40 mm, length 50 x 245 mm
Position Number	11	Art. ID	125669	Valid From	07/2009	Name	Union nut with seal Ø 40 mm
Position Number	99	Art. ID	222441	Valid From	07/2009	Name	Retrofit set 1 x 3.5'' with turning handle chrome with overflow Spareparts
Position Number		Art. ID	223162	Valid From	07/2009	Name	Retrofit set (without pull knob) VI Spareparts
Position Number		Art. ID	225112	Valid From	07/2009	Name	Pull pop-up control round chrome plastic
Position Number		Art. ID	221339	Valid From	07/2009	Name	Pull pop-up control round chrome (metal) Spareparts
Position Number		Art. ID	221336	Valid From	07/2009	Name	Pull pop-up control round brass stainless steel finish Spareparts
Position Number		Art. ID	226540	Valid From	07/2009	Name	Pull pop-up control round stainless steel
Position Number		Art. ID	222115	Valid From	07/2009	Name	Pull pop-up control round stainless steel satin polish Spareparts
Position Number		Art. ID	222118	Valid From	07/2009	Name	Pull pop-up control round stainless steel brushed finish Spareparts
Position Number		Art. ID	221901	Valid From	07/2009	Name	Pull pop-up control LEVOS chrome Spareparts
Position Number		Art. ID	221940	Valid From	07/2009	Name	Pull pop-up control LEVOS stainless steel satin polish Spareparts
Position Number		Art. ID	221941	Valid From	07/2009	Name	Pull pop-up control LEVOS stainless steel brushed finish Spareparts
Position Number		Art. ID	221902	Valid From	07/2009	Name	Pull pop-up control QUADRIS chrome-plated Spareparts
Position Number		Art. ID	221942	Valid From	07/2009	Name	Pull pop-up control QUADRIS stainless steel satin polish Spareparts
Position Number		Art. ID	221943	Valid From	07/2009	Name	Pull pop-up control QUADRIS stainless steel brushed finish Spareparts
Position Number		Art. ID	521294	Valid From	07/2009	Name	Pull pop-up control LIVIA chrome Spareparts
Position Number		Art. ID	521295	Valid From	07/2009	Name	Pull pop-up control LIVIA antique brass Spareparts
Position Number		Art. ID	521296	Valid From	07/2009	Name	Pull pop-up control LIVIA mangan Spareparts
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC sensor-controlled remote drain control Spareparts
Position Number		Art. ID	515400	Valid From	07/2009	Name	BLANCO SensorControl-BSC (replaced by 515399) Spareparts
Position Number		Art. ID	125555	Valid From	07/2009	Name	Basket strainer 3.5" pop up Ø 82 mm (24 drain trenches) Spareparts
