Fitting set 1 x 3.5" without pop-up control overflow round

Skip to content Jump to the navigation menu

                    Article Number
                    220752


Added to Your Shopping Cart

Spare Parts

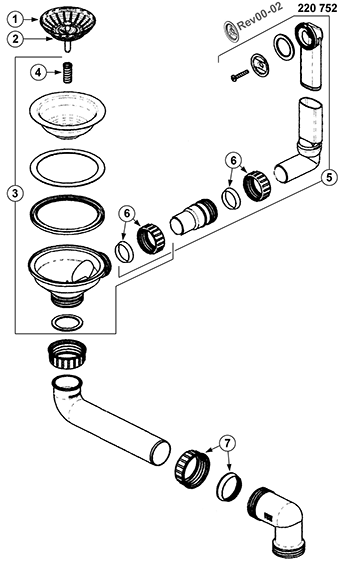

Valid From	Name
Position Number	1	Art. ID	120380 (1 / B)	Valid From	09/2019	Name	Basket strainer 3.5" manual flat MultiRay (24 drain trenches) Spareparts
Position Number		Art. ID	117563	Valid From	01/2007	Name	Basket strainer 3.5" manual closing (20 drain trenches) Spareparts
Position Number	2	Art. ID	116657	Valid From	01/2007	Name	Seal basket 3.5" Ø51 mm as of 10/2006
Position Number	3	Art. ID	121116 (1 / B)	Valid From	09/2019	Name	Valve 3.5" with overflow connection MultiRay thread 1.5", white
Position Number		Art. ID	121117	Valid From	01/2007	Name	Valve 3.5" with overflow connection thread 1.5", white
Position Number		Art. ID	116637	Valid From	01/2007	Name	Valve cup 3.5" stainless steel (replaced by 121117)
Position Number		Art. ID	116633	Valid From	01/2007	Name	Seal drain cup, rubber, black (replaced by 121117)
Position Number		Art. ID	116635	Valid From	01/2007	Name	Seal drain valve black rubber (replaced by 121117)
Position Number		Art. ID	116638	Valid From	01/2007	Name	Drain valve 3.5" with overflow connection (replaced by 121117), white
Position Number	4	Art. ID	125549	Valid From	01/2007	Name	Hollow screw M12x1.75, length 36 mm

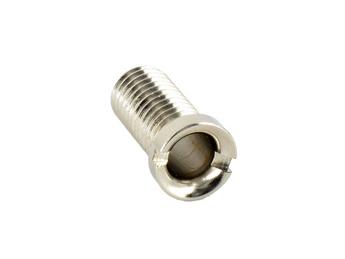

Position Number		Art. ID	125546	Valid From	01/2007	Name	Hollow screw M12x1.75, length 30 mm (replaced by 125549)
Position Number		Art. ID	125718	Valid From	01/2007	Name	Hollow screw key valve cup stainless steel
Position Number	5	Art. ID	116639	Valid From	01/2007	Name	Overflow round
Position Number	6	Art. ID	116634	Valid From	01/2007	Name	Nut with conical seal, thread 1.5"
Position Number	7	Art. ID	116641	Valid From	01/2007	Name	Nut with conical seal Ø 40 mm
Position Number	200	Art. ID	217163	Valid From	01/2007	Name	Fitting set 1 x 3.5'' with pop-up control overflow round Spareparts
