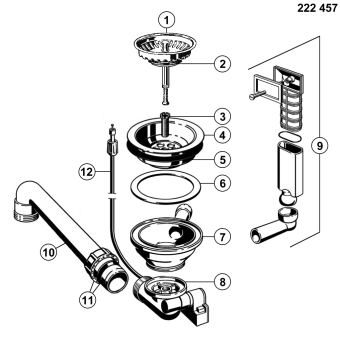

Fitting set 1 x 3.5"with bowden unit overflow rectangular without pull knob

Skip to content Jump to the navigation menu

                    Article Number
                    222457


Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	125555	Valid From	05/2008	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	117497	Valid From	05/2008	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number	3	Art. ID	125572	Valid From	05/2008	Name	Hollow screw M12 x 1.5 length = 28 mm VI
Position Number		Art. ID	125718	Valid From	05/2008	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	4	Art. ID	125568	Valid From	05/2008	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	5	Art. ID	125570	Valid From	05/2008	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125661	Valid From	05/2008	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	7	Art. ID	116313	Valid From	05/2008	Name	Valve top 3 1/2" with overflow 30 mm VI, white
Position Number	8	Art. ID	117516	Valid From	05/2008	Name	Valve bottom M12 with bowden cable VI, white
Position Number	9	Art. ID	117518	Valid From	05/2008	Name	Overflow rectangular pluggable complete VI
Position Number	10	Art. ID	139202	Valid From	05/2008	Name	Drain angle to siphon Ø 40 mm, length: 50 x 245 mm VI
Position Number	11	Art. ID	125669	Valid From	05/2008	Name	Cap nut with seal Ø=40 mm VI
Position Number	12	Art. ID	128628	Valid From	05/2008	Name	Bowden cable 600 mm with nut VI
Position Number		Art. ID	125639	Valid From	05/2008	Name	Bowden cable length = 700 mm with nut VI (replaced by 128628)
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC Spareparts
Position Number		Art. ID	515400	Valid From	05/2008	Name	SensorControl-BSC Spareparts
