Fitting set 1 x 3.5'', 1 x 1.5'' plug, with overflow angular

Skip to content Jump to the navigation menu

                    Article Number
                    503619


no longer available since 11/2015

Added to Your Shopping Cart

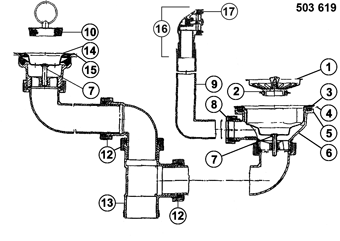

Spare Parts

Valid From	Name
Position Number	1	Art. ID	125654	Valid From	01/1985	Name	Basket strainer 3.5" no pin Ø=80 mm (24 drainage slots) VI Spareparts
Position Number		Art. ID	901989	Valid From	01/1985	Name	Basket strainer 3.5" Ø= 81 mm complete (16 drain trenches) (replaced by 125654) VI Spareparts
Position Number	2	Art. ID	117498	Valid From	01/1985	Name	Seal for basket strainer Ø = 35 / 42 mm silicon (revised version) VI
Position Number		Art. ID	901992	Valid From	01/1985	Name	Seal for basket strainer (replaced by 117498)
Position Number	3	Art. ID	128651	Valid From	01/1985	Name	Valve goblet countersink screw stainless steel VI
Position Number	4	Art. ID	125570	Valid From	01/1985	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	5	Art. ID	125661	Valid From	01/1985	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	6	Art. ID	128681	Valid From	01/1985	Name	Drain valve vertical with overflow white VI, white
Position Number	7	Art. ID	125658	Valid From	01/1985	Name	Countersink screw valve M6 Length=35 mm VI
Position Number	8	Art. ID	125668	Valid From	01/1985	Name	Cap nut Ø=25 mm with seal VI
Position Number	9	Art. ID	137216	Valid From	01/1985	Name	Overflow bow Ø 25 mm, length: 150 mm und Ø 32 mm, length: 250 mm Miele
Position Number	10	Art. ID	901998	Valid From	01/1985	Name	Plug 1.5" 45 mm 10° black with ring
Position Number	12	Art. ID	125669	Valid From	01/1985	Name	Cap nut with seal Ø=40 mm VI
Position Number	13	Art. ID	128667	Valid From	01/1985	Name	T-piece Ø= 40 mm short + equipment connection VI
Position Number	14	Art. ID	116668	Valid From	01/1985	Name	Drainage strainer 1.5" for countersink screw VI
Position Number	15	Art. ID	125638	Valid From	01/1985	Name	Seal drain valve 58 x 80 x 10 VI
Position Number	16	Art. ID	125652	Valid From	01/1985	Name	Overflow rectangular complete VI

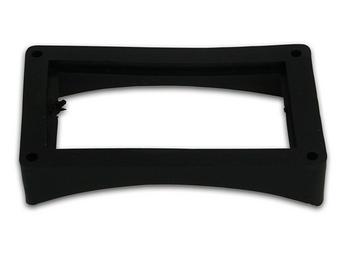

Position Number	17	Art. ID	128484	Valid From	01/1985	Name	Seal flat rectangular VI

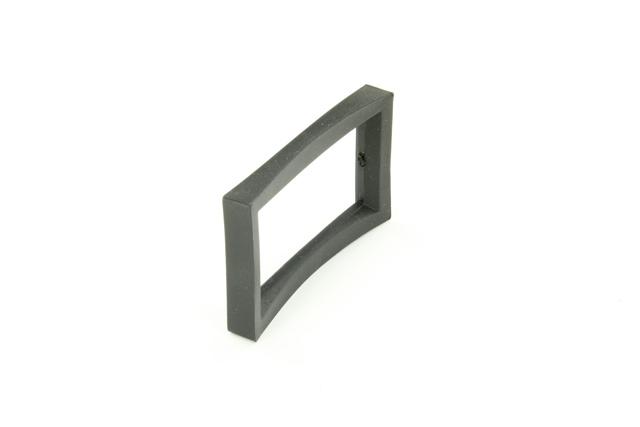

Position Number		Art. ID	128278	Valid From	01/1985	Name	Seal rectangular bended old VI
