Fitting set 1 x 3.5''-1 x 1.5''pop-up control without overflow modify sieve

Skip to content Jump to the navigation menu

                    Article Number
                    224807


New turning unit (119293) since 04.04.2012!

Added to Your Shopping Cart

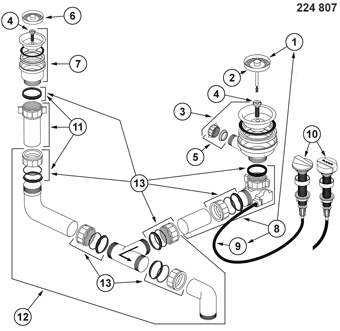

Spare Parts

Valid From	Name
Position Number	1	Art. ID	119145	Valid From	02/2010	Name	Basket strainer 3.5" RADIAL pop up (20 drain trenches) Spareparts
Position Number	2	Art. ID	116116	Valid From	02/2010	Name	Seal basket Ø35/42 mm silicone (improved)
Position Number	3	Art. ID	120665	Valid From	02/2010	Name	Valve 3.5" with overflow connection thread 1/2", white
Position Number	4	Art. ID	119741	Valid From	02/2010	Name	Hollow screw thread 1/4", length 35 mm
Position Number		Art. ID	125718	Valid From	02/2010	Name	Hollow screw key valve cup stainless steel
Position Number	5	Art. ID	116355	Valid From	02/2010	Name	Sealing nut overflow with gasket
Position Number	6	Art. ID	225214	Valid From	02/2010	Name	Basket strainer 1.5" RADIAL non-closing (18 drain trenches)
Position Number	7	Art. ID	118204	Valid From	02/2010	Name	Valve 1.5" with hollow screw, white
Position Number	8	Art. ID	118980	Valid From	02/2010	Name	Retrofit set 1.5'' eccentric with Bowden modified tamis thread 1,5" (without pull knob) AL Spareparts
Position Number	9	Art. ID	139373	Valid From	02/2010	Name	Bowden cable 700 mm long
Position Number	10	Art. ID	119293	Valid From	02/2010	Name	Pop-up turning unit stainless steel round
Position Number	11	Art. ID	120675	Valid From	02/2010	Name	Extension pipe with flange Ø 40 mm, length 150 mm
Position Number	12	Art. ID	225088	Valid From	02/2010	Name	Bowl connection 2 x 3.5"
Position Number	13	Art. ID	120676	Valid From	02/2010	Name	Seal set and screws
Position Number	100	Art. ID	515399	Valid From	02/2010	Name	BLANCO SensorControl-BSC sensor-controlled remote drain control Spareparts
