Fitting set 137866 until 09/1998

Skip to content Jump to the navigation menu

                    Article Number
                    170076


no longer available since 02/2010

Added to Your Shopping Cart

Spare Parts

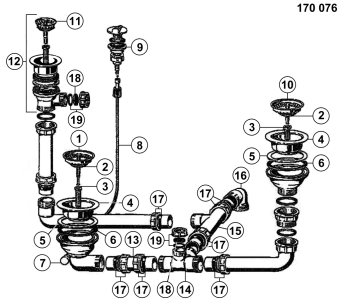

Valid From	Name
Position Number	1	Art. ID	125555	Valid From	11/1996	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	117497	Valid From	11/1996	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number		Art. ID	125556	Valid From	11/1996	Name	Disc with seal Ø=53mm (replaced by 117497) VI
Position Number	3	Art. ID	125572	Valid From	11/1996	Name	Hollow screw M12 x 1.5 length = 28 mm VI
Position Number		Art. ID	125718	Valid From	11/1996	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	4	Art. ID	125568	Valid From	11/1996	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	5	Art. ID	125570	Valid From	11/1996	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125661	Valid From	11/1996	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	7	Art. ID	125573	Valid From	11/1996	Name	Drain valve 3.5" with overflow +bowden cable, white
Position Number		Art. ID	127766	Valid From	11/1996	Name	Drain valve with bowden cable 600 VI (replaced by 125573 and 125641), white
Position Number	8	Art. ID	128628	Valid From	11/1996	Name	Bowden cable 600 mm with nut VI
Position Number		Art. ID	901983	Valid From	11/1996	Name	Bowden cable length = 530 mm (replaced by 128628)
Position Number	9	Art. ID	119293	Valid From	01/1996	Name	Pop-up control stainless steel round BL (EB)
Position Number		Art. ID	118321	Valid From	11/1996	Name	Pop-up turning unit stainless steel complete (replaced by 119293) EB
Position Number		Art. ID	217830	Valid From	11/1996	Name	Pop-up turning unit stainless steel complete grey (replaced by 118321 VI

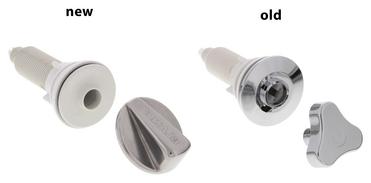

Position Number		Art. ID	137415	Valid From	11/1996	Name	Pop-up turning unit stainless steel (replaced by 217830) VI
Position Number	10	Art. ID	125561	Valid From	11/1996	Name	Basket strainer 3.5" pin Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	11	Art. ID	125567	Valid From	11/1996	Name	Basket strainer 1.5" pin, no seal (18 drainage slots) VI
Position Number	12	Art. ID	125574	Valid From	11/1996	Name	Drain valve 1.5" complete withe screw + basket, white

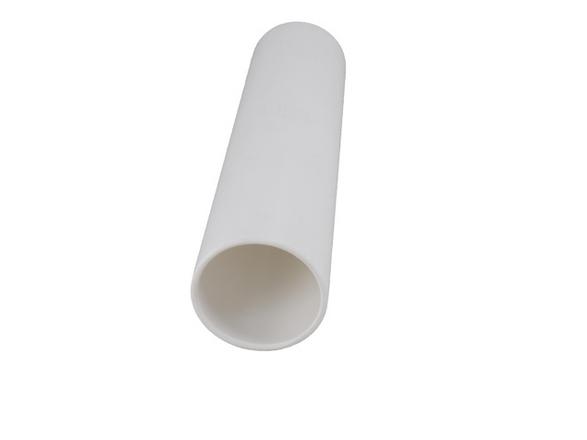

Position Number	13	Art. ID	118567	Valid From	11/1996	Name	Pipe Ø 40 mm, length: 190 mm BL (AL)

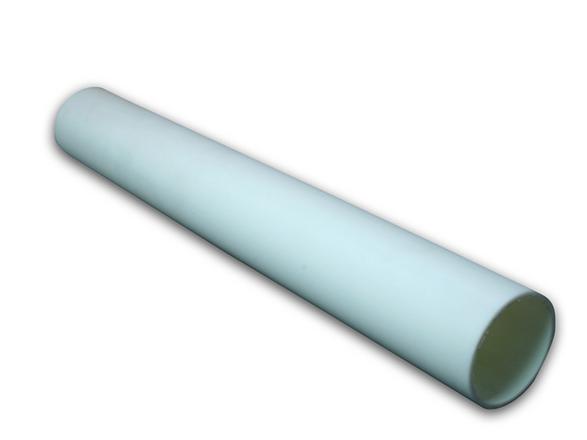

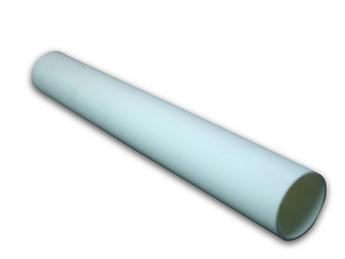

Position Number		Art. ID	127788	Valid From	11/1996	Name	Pipe Ø 40 mm, length: 245 mm (replaced by 118567) VI
Position Number	15	Art. ID	139232	Valid From	11/1996	Name	T-piece 11/2 x 40 x 160 mm VI
Position Number	16	Art. ID	118823	Valid From	11/1996	Name	Drain angle to siphon Ø 40 mm, length: 42 x 70 mm EB
Position Number		Art. ID	125670	Valid From	11/1996	Name	Drain angle to siphon 1,5" Ø 40 mm length: 70 mm (replaced by 118823 )VI
Position Number	17	Art. ID	125669	Valid From	11/1996	Name	Cap nut with seal Ø=40 mm VI
Position Number	18	Art. ID	125641	Valid From	11/1996	Name	Sealing washer for overflow d=25 mm VI
Position Number	19	Art. ID	125668	Valid From	11/1996	Name	Cap nut Ø=25 mm with seal VI
