Fitting set 2 x 3.5", 1 x 1.5" DELTA (replaced by 222598)

Skip to content Jump to the navigation menu

                    Article Number
                    137866


no longer available since 09/2008

Added to Your Shopping Cart

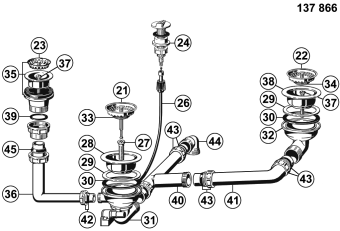

Spare Parts

Valid From	Name
Position Number	21	Art. ID	125555	Valid From	10/1998	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	22	Art. ID	125654	Valid From	10/1998	Name	Basket strainer 3.5" no pin Ø=80 mm (24 drainage slots) VI Spareparts
Position Number	23	Art. ID	125567	Valid From	01/2000	Name	Basket strainer 1.5" pin, no seal (18 drainage slots) VI
Position Number		Art. ID	125926	Valid From	10/1998	Name	Basket strainer 1.5" no pin no seal Ø= 51 mm (18 drainage slots) VI
Position Number	24	Art. ID	119293	Valid From	10/1998	Name	Pop-up control stainless steel round BL (EB)
Position Number		Art. ID	118321	Valid From	10/1998	Name	Pop-up turning unit stainless steel complete (replaced by 119293) EB
Position Number		Art. ID	217830	Valid From	10/1998	Name	Pop-up turning unit stainless steel complete grey (replaced by 118321 VI
Position Number		Art. ID	138077	Valid From	10/1998	Name	Handle turning unit (replaced by 217830)
Position Number	26	Art. ID	128628	Valid From	06/2003	Name	Bowden cable 600 mm with nut VI
Position Number		Art. ID	901983	Valid From	10/1998	Name	Bowden cable length = 530 mm (replaced by 128628)
Position Number	27	Art. ID	125572	Valid From	10/1998	Name	Hollow screw M12 x 1.5 length = 28 mm VI
Position Number		Art. ID	125718	Valid From	10/1998	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	28	Art. ID	125568	Valid From	10/1998	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	29	Art. ID	125570	Valid From	10/1998	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	30	Art. ID	125661	Valid From	10/1998	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	31	Art. ID	125573	Valid From	10/1998	Name	Drain valve 3.5" with overflow +bowden cable, white
Position Number	32	Art. ID	128814	Valid From	10/1998	Name	Drain valve 3.5" with overflowconnection VI, white
Position Number		Art. ID	125641	Valid From	10/1998	Name	Sealing washer for overflow d=25 mm VI
Position Number		Art. ID	125668	Valid From	10/1998	Name	Cap nut Ø=25 mm with seal VI
Position Number		Art. ID	125717	Valid From	10/1998	Name	Drain valve 3.5" (replaced by 125814+125641+125668) VI, white
Position Number	33	Art. ID	117497	Valid From	05/2008	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number		Art. ID	125556	Valid From	10/1998	Name	Disc with seal Ø=53mm (replaced by 117497) VI
Position Number	34	Art. ID	117498	Valid From	05/2008	Name	Seal for basket strainer Ø = 35 / 42 mm silicon (revised version) VI
Position Number		Art. ID	901992	Valid From	10/1998	Name	Seal for basket strainer (replaced by 117498)

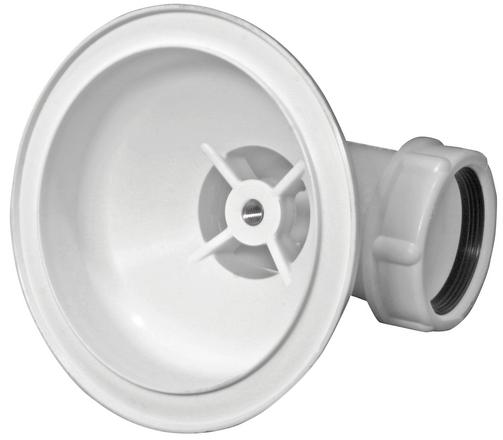

Position Number	35	Art. ID	125574	Valid From	10/1998	Name	Drain valve 1.5" complete withe screw + basket, white
Position Number	36	Art. ID	137216	Valid From	10/1998	Name	Overflow bow Ø 25 mm, length: 150 mm und Ø 32 mm, length: 250 mm Miele
Position Number	37	Art. ID	125658	Valid From	10/1998	Name	Countersink screw valve M6 Length=35 mm VI
Position Number		Art. ID	125649	Valid From	10/1998	Name	Countersink screw M6 length = 46,5 mm VI (replaced by 125658)
Position Number	38	Art. ID	128651	Valid From	10/1998	Name	Valve goblet countersink screw stainless steel VI
Position Number	39	Art. ID	125585	Valid From	10/1998	Name	Seal 1 1/2" 36 x 45 x 2 VI
Position Number	40	Art. ID	125671	Valid From	10/1998	Name	T-piece Ø=40 mm x 230 mm complete VI
Position Number	41	Art. ID	116729	Valid From	10/1998	Name	L-connection without thread Ø 40 mm, length: 90 x 340 mm VI
Position Number		Art. ID	116744	Valid From	10/1998	Name	L-connection Ø 40 mm, length: 90 x 240 mm (replaced by 116729)
Position Number	42	Art. ID	125668	Valid From	11/1998	Name	Cap nut Ø=25 mm with seal VI
Position Number	43	Art. ID	125669	Valid From	10/1998	Name	Cap nut with seal Ø=40 mm VI
Position Number	44	Art. ID	118823	Valid From	10/1998	Name	Drain angle to siphon Ø 40 mm, length: 42 x 70 mm EB
Position Number		Art. ID	125670	Valid From	10/1998	Name	Drain angle to siphon 1,5" Ø 40 mm length: 70 mm (replaced by 118823 )VI

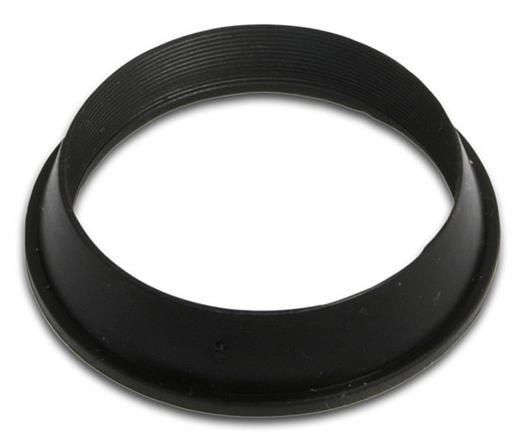

Position Number	45	Art. ID	128671	Valid From	10/1998	Name	Overflow seal from fitting set 137866
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC Spareparts
Position Number		Art. ID	515400	Valid From	10/1998	Name	SensorControl-BSC Spareparts
