Fitting set 2 x 3.5" (replaced by 138067)

Skip to content Jump to the navigation menu

                    Article Number
                    506809


no longer available since 08/2003

Added to Your Shopping Cart

Spare Parts

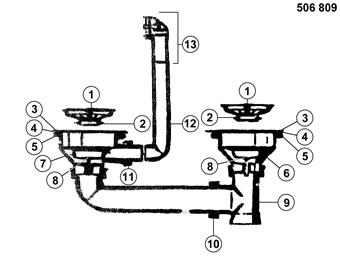

Valid From	Name
Position Number	1	Art. ID	125654	Valid From	01/1995	Name	Basket strainer 3.5" manual closing Ø 80 mm (24 drain trenches) Spareparts
Position Number		Art. ID	901989	Valid From	01/1995	Name	Basket strainer 3.5" manual closing Ø 81 mm (16 drain trenches) (replaced by 125654) Spareparts
Position Number	2	Art. ID	117498	Valid From	01/1995	Name	Seal basket Ø52 mm silicone (improved)
Position Number		Art. ID	901992	Valid From	01/1995	Name	Seal basket 117563
Position Number	3	Art. ID	128651	Valid From	01/1995	Name	Valve cup countersunk screw stainless steel
Position Number	4	Art. ID	125570	Valid From	01/1995	Name	Seal valve cup 111.5 x 85 x 1
Position Number	5	Art. ID	125661	Valid From	01/1995	Name	Seal drain valve 105 x 90 x 4 mm
Position Number	6	Art. ID	128680	Valid From	01/1995	Name	Drain valve 3.5" vertical without overflow connection white, white
Position Number	7	Art. ID	128681	Valid From	01/1995	Name	Drain valve 3.5" vertical with overflow connection white, white
Position Number	8	Art. ID	125658	Valid From	01/1995	Name	Countersink screw M6, length 35 mm
Position Number	10	Art. ID	125669	Valid From	01/1995	Name	Union nut with seal Ø 40 mm
Position Number	11	Art. ID	125668	Valid From	01/1995	Name	Union nut with seal Ø 25 mm
Position Number	12	Art. ID	125666	Valid From	01/1995	Name	Angle pipe overflow Ø 25 mm, length 150 x 220 mm
Position Number	13	Art. ID	125351	Valid From	01/1995	Name	Overflow round with drain pipe
