Fitting set 2 x 3.5" pop-up control C-overflow round modify sieve

Skip to content Jump to the navigation menu

                    Article Number
                    224710


New turning unit (119293) since 23.05.2012!

Added to Your Shopping Cart

Spare Parts

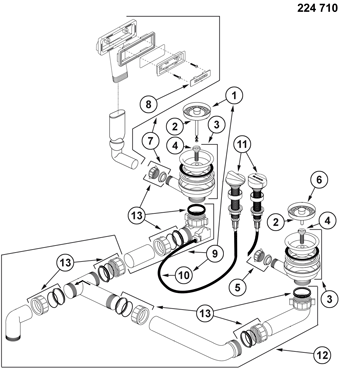

Valid From	Name
Position Number	1	Art. ID	119145	Valid From	11/2009	Name	Basket strainer 3.5" RADIAL pop up (20 drain trenches) Spareparts
Position Number	2	Art. ID	116116	Valid From	11/2009	Name	Seal basket Ø35/42 mm silicone (improved)
Position Number	3	Art. ID	120665	Valid From	11/2009	Name	Valve 3.5" with overflow connection thread 1/2", white
Position Number	4	Art. ID	119741	Valid From	11/2009	Name	Hollow screw thread 1/4", length 35 mm
Position Number		Art. ID	125718	Valid From	11/2009	Name	Hollow screw key valve cup stainless steel
Position Number	5	Art. ID	116355	Valid From	11/2009	Name	Sealing nut overflow with gasket
Position Number	6	Art. ID	225210	Valid From	11/2009	Name	Basket strainer 3.5" RADIAL manual closing (20 drain trenches) Spareparts
Position Number	7	Art. ID	118269	Valid From	11/2009	Name	Overflow C-overflow curved length 84 mm
Position Number	8	Art. ID	117552	Valid From	11/2009	Name	Cover clip for Overflow rectangular
Position Number	9	Art. ID	118980	Valid From	11/2009	Name	Retrofit set 1.5'' eccentric with Bowden modified tamis thread 1,5" (without pull knob) AL Spareparts
Position Number	10	Art. ID	139373	Valid From	11/2009	Name	Bowden cable 700 mm long
Position Number	11	Art. ID	119293	Valid From	11/2009	Name	Pop-up turning unit stainless steel round
Position Number	12	Art. ID	120674	Valid From	11/2009	Name	Piping double bowls manually Ø 40 mm
Position Number	13	Art. ID	120676	Valid From	11/2009	Name	Seal set and screws
Position Number	100	Art. ID	515399	Valid From	11/2009	Name	BLANCO SensorControl-BSC sensor-controlled remote drain control Spareparts
