Fitting set 2 x 3.5" pop-up control overflow angled, sieve modify (replaced by 225730 and 119672)

Skip to content Jump to the navigation menu

                    Article Number
                    224952


New turning unit (119293) since 23.04.2012!
no longer available since 04/2024

Added to Your Shopping Cart

Spare Parts

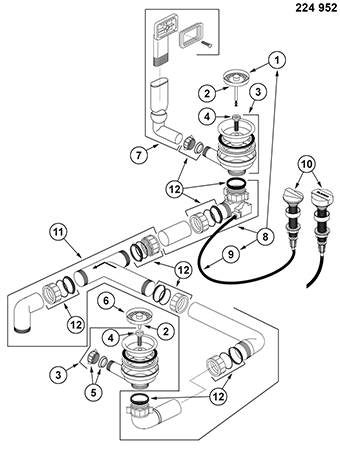

Valid From	Name
Position Number	1	Art. ID	119145	Valid From	12/2009	Name	Pop-up Basket strainer 3.5" RADIAL universal (20 drainage slots) AL Spareparts
Position Number	2	Art. ID	116116	Valid From	12/2009	Name	Seal for basket strainer 3.5" Ø=51 mm since 10/2006 (modified) AL
Position Number	3	Art. ID	120665	Valid From	12/2009	Name	Valve 3.5'' with overflow G 0.5'' AL, white
Position Number	4	Art. ID	119741	Valid From	12/2009	Name	Hollow screw G 1/4'' length = 35 mm AL
Position Number		Art. ID	125718	Valid From	12/2009	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	5	Art. ID	116355	Valid From	12/2009	Name	Sealing clip with seal for overflow AL
Position Number	6	Art. ID	225210	Valid From	12/2009	Name	Basket strainer RADIAL 3.5" with pin (20 drainage slots) AL Spareparts
Position Number	7	Art. ID	119672	Valid From	12/2009	Name	Overflow complete angular-oval ball AL
Position Number	8	Art. ID	118980	Valid From	12/2009	Name	Retrofit set 1.5'' eccentric with Bowden modified tamis thread 1,5" (without pull knob) AL Spareparts
Position Number	9	Art. ID	139373	Valid From	12/2009	Name	Bowden cable 700 mm AL
Position Number	10	Art. ID	119293	Valid From	12/2009	Name	Pop-up control stainless steel round BL (EB)
Position Number	11	Art. ID	120674	Valid From	12/2009	Name	Piping double bowls manual Ø= 40 mm AL
Position Number	12	Art. ID	120676	Valid From	12/2009	Name	Seal set DN 30/40 AL
Position Number	100	Art. ID	515399	Valid From	12/2009	Name	BLANCO SensorControl-BSC Spareparts
