Fitting set 2 x 3.5" with pop-up control C-overflow modified sieve (replaced by 234069)

Skip to content Jump to the navigation menu

                    Article Number
                    225083


no longer available since 04/2024

Added to Your Shopping Cart

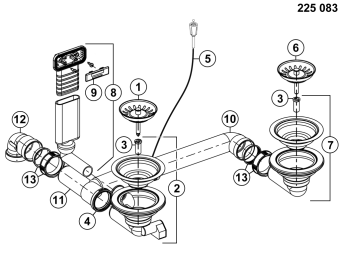

Spare Parts

Valid From	Name
Position Number	1	Art. ID	118477	Valid From	10/2010	Name	Basket strainer 3.5" RADIAL pop up (20 drain trenches)
Position Number		Art. ID	118150	Valid From	07/2010	Name	Basket strainer 3.5" pop up (18 drain trenches)
Position Number	2	Art. ID	118819	Valid From	07/2010	Name	Drain valve 3.5" with overflow connection + Bowden cable, white
Position Number	3	Art. ID	118446	Valid From	07/2010	Name	Hollow screw M12x1.75, length 30 mm
Position Number		Art. ID	125718	Valid From	07/2010	Name	Hollow screw key valve cup stainless steel
Position Number	4	Art. ID	118812	Valid From	07/2010	Name	Blind plug set for overflow connection valve
Position Number	5	Art. ID	118451	Valid From	07/2010	Name	Bowden cable 700 mm long
Position Number	6	Art. ID	118939	Valid From	10/2010	Name	Basket strainer 3.5" RADIAL manual closing (20 drain trenches)
Position Number		Art. ID	117561	Valid From	07/2010	Name	Basket strainer 3.5" manual closing (18 drain trenches) (replaced by 118939)
Position Number	7	Art. ID	118818	Valid From	07/2010	Name	Valve 3.5" manual, white
Position Number	8	Art. ID	119512	Valid From	07/2010	Name	Overflow C-overflow
Position Number		Art. ID	225345	Valid From	07/2010	Name	Overflow Rectangular C-overflow with ball joint (replaced by 119512)
Position Number	9	Art. ID	225091	Valid From	07/2010	Name	Cover C-overflow SteelArt stainless steel satin polish
Position Number		Art. ID	225090	Valid From	07/2010	Name	Cover C-overflow SteelArt stainless steel brushed finish
Position Number	10	Art. ID	118815	Valid From	07/2010	Name	L-connection pipe Ø 40 mm, length 50 x 250 mm
Position Number	11	Art. ID	118814	Valid From	07/2010	Name	T-piece Ø 40 mm 140/170
Position Number	12	Art. ID	118823	Valid From	07/2010	Name	Drain angle to siphon Ø 40 mm, length 42 x 70 mm
Position Number	13	Art. ID	118813	Valid From	07/2010	Name	Union nut with seal Ø 40 mm
Position Number	100	Art. ID	515399	Valid From	07/2010	Name	BLANCO SensorControl-BSC sensor-controlled remote drain control Spareparts
