Fitting set 2 x 3.5" with pop-up control overflow round (replaced by 224710 and 126081)

Skip to content Jump to the navigation menu

                    Article Number
                    222433


no longer available since 03/2021

Added to Your Shopping Cart

Spare Parts

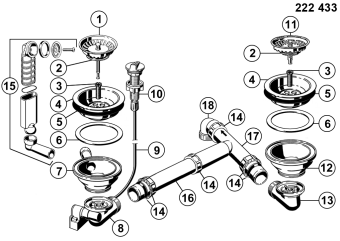

Valid From	Name
Position Number	1	Art. ID	125555	Valid From	07/2008	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	117497	Valid From	07/2008	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number	3	Art. ID	125572	Valid From	07/2008	Name	Hollow screw M12 x 1.5 length = 28 mm VI
Position Number		Art. ID	125718	Valid From	07/2008	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	4	Art. ID	125568	Valid From	07/2008	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	5	Art. ID	125570	Valid From	07/2008	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125661	Valid From	07/2008	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	7	Art. ID	116313	Valid From	07/2008	Name	Valve top 3 1/2" with overflow 30 mm VI, white
Position Number	8	Art. ID	117516	Valid From	07/2008	Name	Valve bottom M12 with bowden cable VI, white
Position Number	9	Art. ID	128628	Valid From	07/2008	Name	Bowden cable 600 mm with nut VI
Position Number	10	Art. ID	119293	Valid From	07/2008	Name	Pop-up control stainless steel round BL (EB)
Position Number		Art. ID	118321	Valid From	07/2008	Name	Pop-up turning unit stainless steel complete (replaced by 119293) EB
Position Number		Art. ID	217830	Valid From	07/2008	Name	Pop-up turning unit stainless steel complete grey (replaced by 118321 VI
Position Number	11	Art. ID	125561	Valid From	07/2008	Name	Basket strainer 3.5" pin Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	12	Art. ID	117504	Valid From	07/2008	Name	Valve top 3 1/2" without overflow VI, white
Position Number	13	Art. ID	117515	Valid From	07/2008	Name	Valve bottom M12 overflow horizontal VI, white
Position Number	14	Art. ID	125669	Valid From	07/2008	Name	Cap nut with seal Ø=40 mm VI
Position Number	15	Art. ID	117520	Valid From	07/2008	Name	Overflow round pluggable complete VI
Position Number	16	Art. ID	118567	Valid From	07/2008	Name	Pipe Ø 40 mm, length: 190 mm BL (AL)
Position Number		Art. ID	127788	Valid From	07/2008	Name	Pipe Ø 40 mm, length: 245 mm (replaced by 118567) VI
Position Number	17	Art. ID	125671	Valid From	07/2008	Name	T-piece Ø=40 mm x 230 mm complete VI
Position Number	18	Art. ID	118823	Valid From	07/2008	Name	Drain angle to siphon Ø 40 mm, length: 42 x 70 mm EB
Position Number		Art. ID	125670	Valid From	07/2008	Name	Drain angle to siphon 1,5" Ø 40 mm length: 70 mm (replaced by 118823 )VI
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC Spareparts
Position Number		Art. ID	515400	Valid From	07/2008	Name	SensorControl-BSC Spareparts
