Fitting set 2 x 3.5" with pop-up control overflow round (replaced by 224805)

Skip to content Jump to the navigation menu

                    Article Number
                    224035


no longer available since 04/2018

Added to Your Shopping Cart

Spare Parts

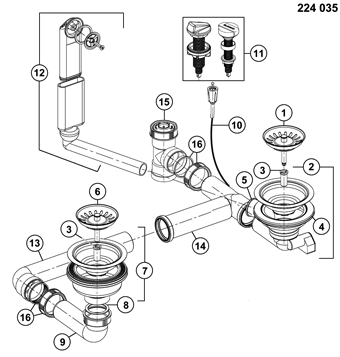

Valid From	Name
Position Number	1	Art. ID	118150	Valid From	09/2010	Name	Basket strainer 3.5" pop up (18 drain trenches)
Position Number	2	Art. ID	118819	Valid From	09/2010	Name	Drain valve 3.5" with overflow connection + Bowden cable, white
Position Number	3	Art. ID	118446	Valid From	09/2010	Name	Hollow screw M12x1.75, length 30 mm
Position Number		Art. ID	125718	Valid From	09/2010	Name	Hollow screw key valve cup stainless steel
Position Number	4	Art. ID	118453	Valid From	09/2010	Name	Seal under stainless cup 108 x 86 x 1
Position Number	5	Art. ID	118812	Valid From	09/2010	Name	Blind plug set for overflow connection valve
Position Number	6	Art. ID	118939	Valid From	09/2010	Name	Basket strainer 3.5" RADIAL manual closing (20 drain trenches)
Position Number		Art. ID	117561	Valid From	09/2010	Name	Basket strainer 3.5" manual closing (18 drain trenches) (replaced by 118939)
Position Number	7	Art. ID	120665	Valid From	09/2010	Name	Valve 3.5" with overflow connection thread 1/2", white
Position Number		Art. ID	125590	Valid From	09/2010	Name	Basket strainer 3.5" manual closing (18 drain trenches) Spareparts
Position Number		Art. ID	119014	Valid From	09/2010	Name	Drain valve 3.5" (replaced by 120665 and 125590), white

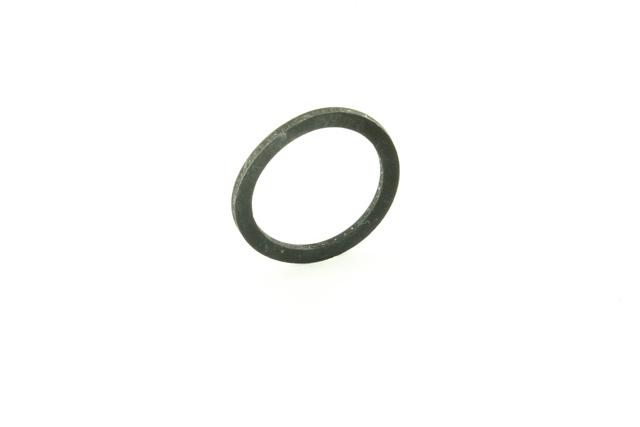

Position Number	8	Art. ID	118367	Valid From	09/2010	Name	Seal with insert
Position Number	9	Art. ID	118890	Valid From	09/2010	Name	Odor trap (space saver)
Position Number	10	Art. ID	118451	Valid From	09/2010	Name	Bowden cable 700 mm long
Position Number	11	Art. ID	119293	Valid From	09/2010	Name	Pop-up turning unit stainless steel round
Position Number		Art. ID	118321	Valid From	09/2010	Name	Pop-up turning unit stainless steel (replaced by 119293)
Position Number	12	Art. ID	118821	Valid From	09/2010	Name	Overflow round with ball joint
Position Number	13	Art. ID	118815	Valid From	09/2010	Name	L-connection pipe Ø 40 mm, length 50 x 250 mm
Position Number	14	Art. ID	118814	Valid From	09/2010	Name	T-piece Ø 40 mm 140/170
Position Number	15	Art. ID	118823	Valid From	09/2010	Name	Drain angle to siphon Ø 40 mm, length 42 x 70 mm
Position Number		Art. ID	225616	Valid From	09/2010	Name	Air valve Ø 40 mm, length 107 x 261-275 mm
Position Number		Art. ID	118782	Valid From	10/2010	Name	T-piece with vent (replaced by 225616)
Position Number	16	Art. ID	118813	Valid From	09/2010	Name	Union nut with seal Ø 40 mm
Position Number	100	Art. ID	515399	Valid From	09/2010	Name	BLANCO SensorControl-BSC sensor-controlled remote drain control Spareparts
