Fitting set 2 x 3.5" with pull pop-up control overflow round

Skip to content Jump to the navigation menu

                    Article Number
                    219595


no longer available since 03/2020

Added to Your Shopping Cart

Spare Parts

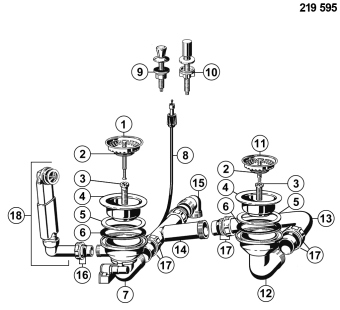

Valid From	Name
Position Number	1	Art. ID	125555	Valid From	01/2007	Name	Basket strainer 3.5" pop up Ø 82 mm (24 drain trenches) Spareparts
Position Number	2	Art. ID	117497	Valid From	05/2008	Name	Seal base
Position Number		Art. ID	125556	Valid From	01/2007	Name	Washer with gasket Ø 53 mm (replaced by 117497) VI
Position Number	3	Art. ID	125572	Valid From	01/2007	Name	Hollow screw M12x1.5, length 28 mm
Position Number		Art. ID	125718	Valid From	01/2007	Name	Hollow screw key valve cup stainless steel
Position Number	4	Art. ID	125568	Valid From	01/2007	Name	Valve cup 3.5" hollow screw stainless steel
Position Number	5	Art. ID	125570	Valid From	01/2007	Name	Seal valve cup 111.5 x 85 x 1
Position Number	6	Art. ID	125661	Valid From	01/2007	Name	Seal drain valve 105 x 90 x 4 mm
Position Number	7	Art. ID	125573	Valid From	01/2007	Name	Drain valve 3.5" with overflow connection + Bowden cable, white
Position Number	8	Art. ID	128628	Valid From	01/2007	Name	Bowden cable 600 mm long with nut
Position Number	9	Art. ID	225112	Valid From	01/2007	Name	Pull pop-up control round chrome plastic
Position Number		Art. ID	901982	Valid From	01/2007	Name	Pull pop-up control chrome (replaced by 225112)
Position Number	10	Art. ID	225112	Valid From	06/2011	Name	Pull pop-up control round chrome plastic
Position Number		Art. ID	116743	Valid From	01/2007	Name	Pull pop-up control plastic chrome (replaced by 225112)
Position Number	11	Art. ID	125561	Valid From	01/2007	Name	Basket strainer 3.5" manual closing Ø 82 mm (24 drain trenches) Spareparts
Position Number	12	Art. ID	128642	Valid From	01/2007	Name	Drain valve 3.5" hollow screw without overflow connection, white

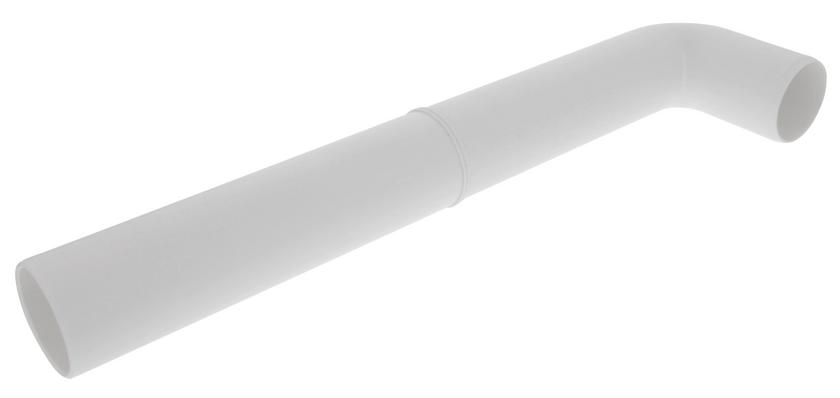

Position Number	13	Art. ID	116729	Valid From	01/2007	Name	L-connection without thread Ø 40 mm, length 90 x 340 mm

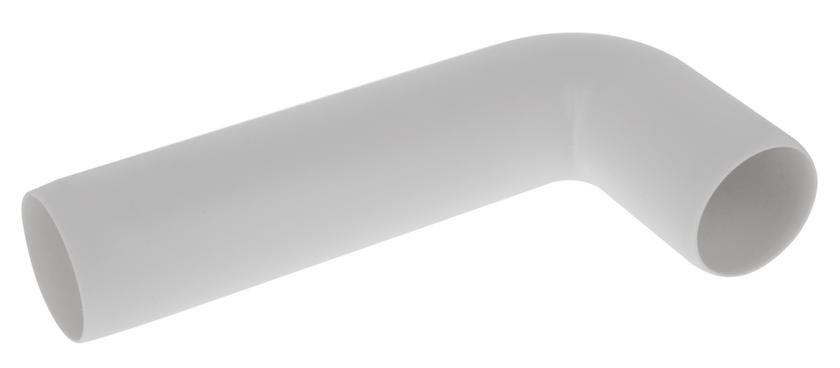

Position Number		Art. ID	125672	Valid From	01/2007	Name	L-connection pipe Ø 40 mm, length 70 x 180 mm (replaced by 116729)

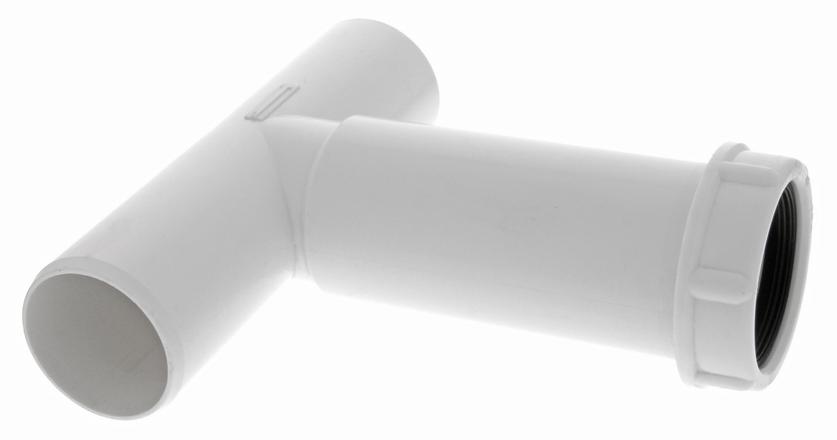

Position Number	14	Art. ID	139784	Valid From	01/2007	Name	T-piece Ø 40 mm x 134 mm complete
Position Number	15	Art. ID	118823	Valid From	01/2007	Name	Drain angle to siphon Ø 40 mm, length 42 x 70 mm
Position Number		Art. ID	125670	Valid From	01/2007	Name	Drain angle to siphon 1.5" Ø 40 mm, length 70 mm (replaced by 118823)
Position Number	16	Art. ID	125668	Valid From	01/2007	Name	Union nut with seal Ø 25 mm
Position Number	17	Art. ID	125669	Valid From	01/2007	Name	Union nut with seal Ø 40 mm
Position Number	18	Art. ID	117520	Valid From	10/2011	Name	Overflow plug-in round
Position Number		Art. ID	116672	Valid From	01/2007	Name	Overflow round ball joint (replaced by 117520)
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC sensor-controlled remote drain control Spareparts
Position Number		Art. ID	515400	Valid From	01/2007	Name	BLANCO SensorControl-BSC (replaced by 515399) Spareparts
