Fitting set 2 x 3.5" without pop-up control 2x overflow rectangular (replaced by 222447)

Skip to content Jump to the navigation menu

                    Article Number
                    218592


no longer available since 02/2010

Added to Your Shopping Cart

Spare Parts

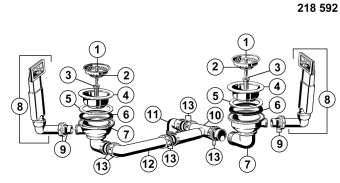

Valid From	Name
Position Number	1	Art. ID	125561	Valid From	01/2007	Name	Basket strainer 3.5" pin Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	117497	Valid From	05/2008	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number		Art. ID	125556	Valid From	01/2007	Name	Disc with seal Ø=53mm (replaced by 117497) VI
Position Number	3	Art. ID	125572	Valid From	01/2007	Name	Hollow screw M12 x 1.5 length = 28 mm VI
Position Number		Art. ID	125718	Valid From	01/2007	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	4	Art. ID	125568	Valid From	01/2007	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	5	Art. ID	125570	Valid From	01/2007	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125661	Valid From	01/2007	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	7	Art. ID	125653	Valid From	01/2007	Name	Drain valve 3.5" with overflow for hollow screw VI, white
Position Number	8	Art. ID	212298	Valid From	01/2007	Name	Overflow set rectangular with ball joint
Position Number	9	Art. ID	125668	Valid From	01/2007	Name	Cap nut Ø=25 mm with seal VI

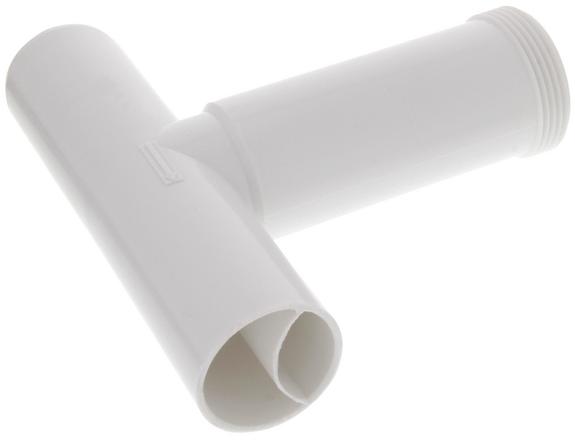

Position Number	10	Art. ID	125671	Valid From	01/2007	Name	T-piece Ø=40 mm x 230 mm complete VI
Position Number		Art. ID	116728	Valid From	01/2007	Name	T-piece 140 x 150 x D40 (replaced by 125671)
Position Number	11	Art. ID	118823	Valid From	01/2007	Name	Drain angle to siphon Ø 40 mm, length: 42 x 70 mm EB
Position Number		Art. ID	125670	Valid From	01/2007	Name	Drain angle to siphon 1,5" Ø 40 mm length: 70 mm (replaced by 118823 )VI
Position Number	12	Art. ID	116729	Valid From	01/2007	Name	L-connection without thread Ø 40 mm, length: 90 x 340 mm VI
Position Number	13	Art. ID	125669	Valid From	01/2007	Name	Cap nut with seal Ø=40 mm VI
Position Number	99	Art. ID	515980	Valid From	01/2007	Name	Retrofit set incl. pull knob round chrome VI Spareparts
Position Number		Art. ID	515981	Valid From	01/2007	Name	Retrofit set incl. pull knob round stainless steel satin polish VI Spareparts
Position Number		Art. ID	515982	Valid From	01/2007	Name	Retrofit set incl. pull knob round stainless steel brushed finish VI Spareparts
Position Number		Art. ID	515972	Valid From	01/2007	Name	Retrofit set incl. pull knob QUADRIS chrome VI Spareparts
Position Number		Art. ID	515974	Valid From	01/2007	Name	Retrofit set incl. pull knob BLANCO QUADRIS stainless steel satin polish VI Spareparts
Position Number		Art. ID	515975	Valid From	01/2007	Name	Retrofit set incl. pull knob BLANCO QUADRIS stainless steel brushed finish VI Spareparts
Position Number		Art. ID	515976	Valid From	01/2007	Name	Retroifit set incl. pull knob LEVOS chrome VI Spareparts
Position Number		Art. ID	515977	Valid From	01/2007	Name	Retrofit set incl. pull knob BLANCO LEVOS stainless steel satin polish VI Spareparts
Position Number		Art. ID	515978	Valid From	01/2007	Name	Retrofit set incl. pull knob BLANCO LEVOS stainless steel brushed finish VI Spareparts
Position Number		Art. ID	222441	Valid From	01/2007	Name	Retrofit set 1 x 3.5'' with turning handle chrome with overflow Spareparts
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC Spareparts
Position Number		Art. ID	515400	Valid From	01/2007	Name	SensorControl-BSC Spareparts
Position Number		Art. ID	125555	Valid From	01/2007	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
