Fitting set 2 x 3.5" without pop-up control 2x overflow rectangular

Skip to content Jump to the navigation menu

                    Article Number
                    222448


no longer available since 04/2024

Added to Your Shopping Cart

Spare Parts

Valid From	Name

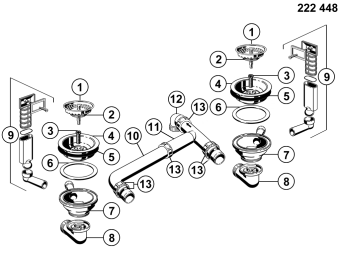

Position Number	1	Art. ID	125561	Valid From	01/2008	Name	Basket strainer 3.5" manual closing Ø 82 mm (24 drain trenches) Spareparts
Position Number	2	Art. ID	117497	Valid From	01/2008	Name	Seal base
Position Number	3	Art. ID	125572	Valid From	01/2008	Name	Hollow screw M12x1.5, length 28 mm
Position Number		Art. ID	125718	Valid From	01/2008	Name	Hollow screw key valve cup stainless steel
Position Number	4	Art. ID	125568	Valid From	01/2008	Name	Valve cup 3.5" hollow screw stainless steel
Position Number	5	Art. ID	125570	Valid From	01/2008	Name	Seal valve cup 111.5 x 85 x 1
Position Number	6	Art. ID	125661	Valid From	01/2008	Name	Seal drain valve 105 x 90 x 4 mm
Position Number	7	Art. ID	116313	Valid From	01/2008	Name	Valve top part 3.5" with overflow connection 30 mm, white
Position Number	8	Art. ID	117515	Valid From	01/2008	Name	Valve bottom part M12 outlet horizontal, white
Position Number	9	Art. ID	117518	Valid From	01/2008	Name	Overflow plug-in rectangular
Position Number	10	Art. ID	116729	Valid From	01/2008	Name	L-connection without thread Ø 40 mm, length 90 x 340 mm
Position Number		Art. ID	125672	Valid From	01/2008	Name	L-connection pipe Ø 40 mm, length 70 x 180 mm (replaced by 116729)
Position Number	11	Art. ID	125671	Valid From	01/2008	Name	T-piece Ø 40 mm x 230 mm complete
Position Number	12	Art. ID	118823	Valid From	01/2008	Name	Drain angle to siphon Ø 40 mm, length 42 x 70 mm
Position Number		Art. ID	125670	Valid From	01/2008	Name	Drain angle to siphon 1.5" Ø 40 mm, length 70 mm (replaced by 118823)
Position Number	13	Art. ID	125669	Valid From	01/2008	Name	Union nut with seal Ø 40 mm
Position Number	99	Art. ID	515980	Valid From	01/2008	Name	Retrofit set incl. pull knob round chrome VI Spareparts
Position Number		Art. ID	515981	Valid From	01/2008	Name	Retrofit set incl. pull knob round stainless steel satin polish VI Spareparts
Position Number		Art. ID	515982	Valid From	01/2008	Name	Retrofit set incl. pull knob round stainless steel brushed finish VI Spareparts
Position Number		Art. ID	515972	Valid From	01/2008	Name	Retrofit set incl. pull knob QUADRIS chrome VI Spareparts
Position Number		Art. ID	515974	Valid From	01/2008	Name	Retrofit set incl. pull knob BLANCO QUADRIS stainless steel satin polish VI Spareparts
Position Number		Art. ID	515975	Valid From	01/2008	Name	Retrofit set incl. pull knob BLANCO QUADRIS stainless steel brushed finish VI Spareparts
Position Number		Art. ID	515976	Valid From	01/2008	Name	Retroifit set incl. pull knob LEVOS chrome VI Spareparts
Position Number		Art. ID	515977	Valid From	01/2008	Name	Retrofit set incl. pull knob BLANCO LEVOS stainless steel satin polish VI Spareparts
Position Number		Art. ID	515978	Valid From	01/2008	Name	Retrofit set incl. pull knob BLANCO LEVOS stainless steel brushed finish VI Spareparts
Position Number		Art. ID	222441	Valid From	01/2008	Name	Retrofit set 1 x 3.5'' with turning handle chrome with overflow Spareparts
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC sensor-controlled remote drain control Spareparts
Position Number		Art. ID	515400	Valid From	01/2008	Name	BLANCO SensorControl-BSC (replaced by 515399) Spareparts
Position Number		Art. ID	125555	Valid From	01/2008	Name	Basket strainer 3.5" pop up Ø 82 mm (24 drain trenches) Spareparts
