Fitting set 214424 until 01/2006 2x pop-up control (replaced by 214424)

Skip to content Jump to the navigation menu

                    Article Number
                    116357


no longer available since 06/2009

Added to Your Shopping Cart

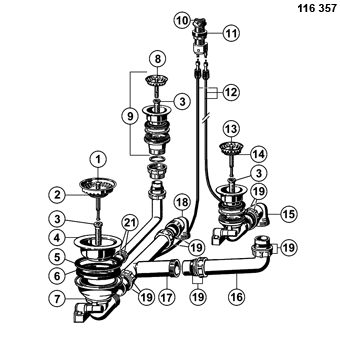

Spare Parts

Valid From	Name
Position Number	1	Art. ID	125555	Valid From	01/2002	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	117497	Valid From	01/2002	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number		Art. ID	125556	Valid From	01/2002	Name	Disc with seal Ø=53mm (replaced by 117497) VI
Position Number	3	Art. ID	125572	Valid From	01/2002	Name	Hollow screw M12 x 1.5 length = 28 mm VI
Position Number		Art. ID	125718	Valid From	01/2002	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	4	Art. ID	125568	Valid From	01/2002	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	5	Art. ID	125570	Valid From	01/2002	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125661	Valid From	01/2002	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	7	Art. ID	125573	Valid From	01/2002	Name	Drain valve 3.5" with overflow +bowden cable, white
Position Number	8	Art. ID	125567	Valid From	01/2002	Name	Basket strainer 1.5" pin, no seal (18 drainage slots) VI
Position Number	9	Art. ID	125574	Valid From	01/2002	Name	Drain valve 1.5" complete withe screw + basket, white
Position Number	10	Art. ID	125543	Valid From	01/2002	Name	Turning handle for double turning unit chrome (replaced by 137973)
Position Number	11	Art. ID	137973	Valid From	01/2002	Name	Double turning unit chrome VI Spareparts
Position Number	12	Art. ID	128628	Valid From	01/2002	Name	Bowden cable 600 mm with nut VI
Position Number		Art. ID	901983	Valid From	01/2002	Name	Bowden cable length = 530 mm (replaced by 128628)
Position Number	13	Art. ID	125565	Valid From	01/2002	Name	Basket strainer 1.5" pop-up Ø=51mm (18 drainage slots) VI Spareparts
Position Number	14	Art. ID	117498	Valid From	01/2002	Name	Seal for basket strainer Ø = 35 / 42 mm silicon (revised version) VI
Position Number		Art. ID	901992	Valid From	01/2002	Name	Seal for basket strainer (replaced by 117498)
Position Number	15	Art. ID	139228	Valid From	01/2002	Name	L-outflow pipe Ø 40 mm, length: 50 x 245 mm VI
Position Number		Art. ID	139218	Valid From	01/2002	Name	L-connection pipe nut Ø 40 mm, length: 60 x 60 mm (replaced by 139228) VI
Position Number	16	Art. ID	116729	Valid From	01/2002	Name	L-connection without thread Ø 40 mm, length: 90 x 340 mm VI
Position Number		Art. ID	116744	Valid From	01/2002	Name	L-connection Ø 40 mm, length: 90 x 240 mm (replaced by 116729)
Position Number	17	Art. ID	125671	Valid From	01/2002	Name	T-piece Ø=40 mm x 230 mm complete VI
Position Number	18	Art. ID	118823	Valid From	01/2002	Name	Drain angle to siphon Ø 40 mm, length: 42 x 70 mm EB
Position Number		Art. ID	125670	Valid From	01/2002	Name	Drain angle to siphon 1,5" Ø 40 mm length: 70 mm (replaced by 118823 )VI
Position Number	19	Art. ID	125669	Valid From	01/2002	Name	Cap nut with seal Ø=40 mm VI
Position Number	21	Art. ID	125668	Valid From	01/2002	Name	Cap nut Ø=25 mm with seal VI
