Fitting set 2x3.5" double pop-up-contol overflow angular

                    Article Number
                    224355


Added to Your Shopping Cart

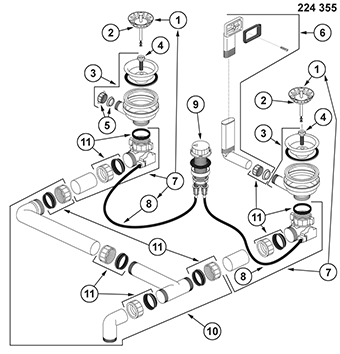

Spare Parts

Valid From	Name
Position Number	1	Art. ID	119146	Valid From	11/2013	Name	Basket strainer 3.5" pop up (18 drain trenches) Spareparts
Position Number	2	Art. ID	116116	Valid From	11/2013	Name	Seal basket Ø35/42 mm silicone (improved)
Position Number	3	Art. ID	120665	Valid From	11/2013	Name	Valve 3.5" with overflow connection thread 1/2", white
Position Number	4	Art. ID	119741	Valid From	11/2013	Name	Hollow screw thread 1/4", length 35 mm
Position Number		Art. ID	125718	Valid From	11/2013	Name	Hollow screw key valve cup stainless steel
Position Number	5	Art. ID	116355	Valid From	11/2013	Name	Sealing nut overflow with gasket
Position Number	6	Art. ID	120663	Valid From	11/2013	Name	Overflow set rectangular-oval fixed
Position Number	7	Art. ID	118979	Valid From	11/2013	Name	Retrofit set 3,5'' eccentric with Bowden standard thread 1,5" (e.g. for PANOR) (without pull knob) AL Spareparts
Position Number	8	Art. ID	139373	Valid From	11/2013	Name	Bowden cable 700 mm long
Position Number	9	Art. ID	118835	Valid From	11/2013	Name	Double turning unit chrome
Position Number	10	Art. ID	225088	Valid From	11/2013	Name	Bowl connection 2 x 3.5"
Position Number	11	Art. ID	120676	Valid From	11/2013	Name	Seal set and screws
