Fitting set 3.5" + 1.5" upgradeable to pop-up control (replaced by 230149)

Skip to content Jump to the navigation menu

                    Article Number
                    506582


no longer available since 09/2003

Added to Your Shopping Cart

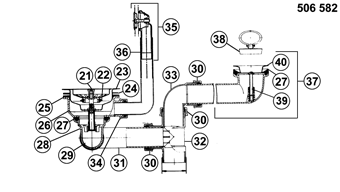

Spare Parts

Valid From	Name
Position Number	21	Art. ID	901991	Valid From	01/1991	Name	Basket strainer 3.5" pin Ø= 80 mm complete (16 drainage slots) VI Spareparts
Position Number	22	Art. ID	117498	Valid From	01/1991	Name	Seal for basket strainer Ø = 35 / 42 mm silicon (revised version) VI
Position Number		Art. ID	901992	Valid From	01/1991	Name	Seal for basket strainer (replaced by 117498)
Position Number	23	Art. ID	125659	Valid From	01/1991	Name	Valve goblet for hollow screw 3.5" stainless steel VI
Position Number	24	Art. ID	125570	Valid From	01/1991	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	25	Art. ID	125571	Valid From	01/1991	Name	Seal drain valve 108 x 84 x 3 VI
Position Number	26	Art. ID	128362	Valid From	01/1991	Name	Valve top with overflow until 6/96 VI, white
Position Number	27	Art. ID	125638	Valid From	01/1991	Name	Seal drain valve 58 x 80 x 10 VI
Position Number	28	Art. ID	901995	Valid From	01/1991	Name	Hollow screw M12x1,5 length = 43 mm VI
Position Number		Art. ID	125718	Valid From	01/1991	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	29	Art. ID	127793	Valid From	01/1991	Name	Valve angle 1,5" VI, white
Position Number	30	Art. ID	125669	Valid From	01/1991	Name	Cap nut with seal Ø=40 mm VI
Position Number	31	Art. ID	116729	Valid From	01/1991	Name	L-connection without thread Ø 40 mm, length: 90 x 340 mm VI
Position Number		Art. ID	125672	Valid From	01/1991	Name	L-connecting pipe Ø 40 mm, length: 70 x 180 mm (replaced by 116729) VI
Position Number	32	Art. ID	128667	Valid From	01/1991	Name	T-piece Ø= 40 mm short + equipment connection VI
Position Number	33	Art. ID	139228	Valid From	01/1991	Name	L-outflow pipe Ø 40 mm, length: 50 x 245 mm VI
Position Number		Art. ID	139218	Valid From	01/1991	Name	L-connection pipe nut Ø 40 mm, length: 60 x 60 mm (replaced by 139228) VI
Position Number	34	Art. ID	125668	Valid From	01/1991	Name	Cap nut Ø=25 mm with seal VI
Position Number	35	Art. ID	125351	Valid From	01/1991	Name	Overflow round complete with outflow pipe VI
Position Number	36	Art. ID	125666	Valid From	01/1991	Name	Angled pipe overflow Ø 25 mm, length: 150 x 220 mm VI
Position Number	37	Art. ID	116068	Valid From	01/1991	Name	Pipe, seal, plug VI, white
Position Number	38	Art. ID	901998	Valid From	01/1991	Name	Plug 1.5" 45 mm 10° black with ring
Position Number	39	Art. ID	125658	Valid From	01/1991	Name	Countersink screw valve M6 Length=35 mm VI
Position Number	40	Art. ID	116668	Valid From	01/1991	Name	Drainage strainer 1.5" for countersink screw VI
Position Number	99	Art. ID	222441	Valid From	01/1991	Name	Retrofit set 1 x 3.5'' with turning handle chrome with overflow Spareparts
Position Number		Art. ID	218941	Valid From	01/1991	Name	Retrofit set incl. pull knob plastic chromed Spareparts
Position Number		Art. ID	223162	Valid From	01/1991	Name	Retrofit set (without pull knob) VI Spareparts
Position Number		Art. ID	225112	Valid From	01/1991	Name	Pull pop-up control round plastic
Position Number		Art. ID	221339	Valid From	01/1991	Name	Pop-up control round chrome (metal) Spareparts
Position Number		Art. ID	221336	Valid From	01/1991	Name	Pop-up control round stainless steel finish Spareparts
Position Number		Art. ID	226540	Valid From	01/1991	Name	Pull up control round stainless steel
Position Number		Art. ID	222115	Valid From	01/1991	Name	Pull pop-up control round stainless steel satin polish Spareparts
Position Number		Art. ID	222118	Valid From	01/1991	Name	Pull pop-up control round stainless steel brushed finish Spareparts
Position Number		Art. ID	221901	Valid From	01/1991	Name	Pull pop-up control LEVOS chrome Spareparts
Position Number		Art. ID	221940	Valid From	01/1991	Name	Pull pop-up control LEVOS stainless steel satin polish Spareparts
Position Number		Art. ID	221941	Valid From	01/1991	Name	Pull pop-up control LEVOS stainless steel brushed finish Spareparts
Position Number		Art. ID	221902	Valid From	01/1991	Name	Pull pop-up control QUADRIS chrome Spareparts
Position Number		Art. ID	221942	Valid From	01/1991	Name	Pull pop-up control BLANCO QUADRIS stainless steel satin polish Spareparts
Position Number		Art. ID	221943	Valid From	01/1991	Name	Pull pop-up control QUADRIS stainless steel brushed finish Spareparts
Position Number		Art. ID	521294	Valid From	01/1991	Name	Pull pop-up control LIVIA chrome Spareparts
Position Number		Art. ID	521295	Valid From	01/1991	Name	Pull pop-up control LIVIA antique brass Spareparts
Position Number		Art. ID	521296	Valid From	01/1991	Name	Zug-Ablauffernbedienung LIVIA mangan Spareparts
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC Spareparts
