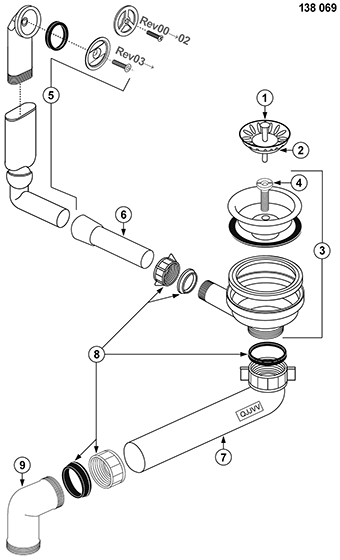

Fitting set 3.5" CLASSIC,DANA,PLUS,TIPO,WAVE without pop-up control round overflow

Skip to content Jump to the navigation menu

                    Article Number
                    138069


Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	125590	Valid From	01/1995	Name	Basket strainer 3.5" pin (18 drainage slots) AL Spareparts
Position Number	2	Art. ID	116116	Valid From	01/1995	Name	Seal for basket strainer 3.5" Ø=51 mm since 10/2006 (modified) AL
Position Number	3	Art. ID	120665	Valid From	01/1995	Name	Valve 3.5'' with overflow G 0.5'' AL, white
Position Number	4	Art. ID	119741	Valid From	01/1995	Name	Hollow screw G 1/4'' length = 35 mm AL
Position Number		Art. ID	125718	Valid From	01/1995	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	5	Art. ID	126081	Valid From	01/1995	Name	Overflow set round/oval extendable bowl AL Spareparts
Position Number	6	Art. ID	125614	Valid From	01/1995	Name	Extension pipe overflow Ø 30 mm, length: 130 mm AL
Position Number	7	Art. ID	116332	Valid From	01/1995	Name	L-connection pipe with nut Ø = 40 mm, length: 25 x 280 mm AL
Position Number	8	Art. ID	120676	Valid From	01/1995	Name	Seal set DN 30/40 AL
Position Number	9	Art. ID	118518	Valid From	01/1995	Name	Drain angle 90° Ø 40 mm, length: 53 x 59 mm AL
Position Number	99	Art. ID	118979	Valid From	01/1995	Name	Retrofit set 3,5'' eccentric with Bowden standard thread 1,5" (e.g. for PANOR) (without pull knob) AL Spareparts
Position Number		Art. ID	119293	Valid From	01/1995	Name	Pop-up control stainless steel round BL (EB)
Position Number		Art. ID	225112	Valid From	01/1995	Name	Pull pop-up control round plastic
Position Number		Art. ID	221339	Valid From	01/1995	Name	Pop-up control round chrome (metal) Spareparts
Position Number		Art. ID	221336	Valid From	01/1995	Name	Pop-up control round stainless steel finish Spareparts
Position Number		Art. ID	226540	Valid From	01/1995	Name	Pull up control round stainless steel
Position Number		Art. ID	222115	Valid From	01/1995	Name	Pull pop-up control round stainless steel satin polish Spareparts
Position Number		Art. ID	222118	Valid From	01/1995	Name	Pull pop-up control round stainless steel brushed finish Spareparts
Position Number		Art. ID	221901	Valid From	01/1995	Name	Pull pop-up control LEVOS chrome Spareparts
Position Number		Art. ID	221940	Valid From	01/1995	Name	Pull pop-up control LEVOS stainless steel satin polish Spareparts
Position Number		Art. ID	221941	Valid From	01/1995	Name	Pull pop-up control LEVOS stainless steel brushed finish Spareparts
Position Number		Art. ID	221902	Valid From	01/1995	Name	Pull pop-up control QUADRIS chrome Spareparts
Position Number		Art. ID	221942	Valid From	01/1995	Name	Pull pop-up control BLANCO QUADRIS stainless steel satin polish Spareparts
Position Number		Art. ID	221943	Valid From	01/1995	Name	Pull pop-up control QUADRIS stainless steel brushed finish Spareparts
Position Number		Art. ID	521294	Valid From	01/1995	Name	Pull pop-up control LIVIA chrome Spareparts
Position Number		Art. ID	521295	Valid From	01/1995	Name	Pull pop-up control LIVIA antique brass Spareparts
Position Number		Art. ID	521296	Valid From	01/1995	Name	Zug-Ablauffernbedienung LIVIA mangan Spareparts
Position Number	100	Art. ID	515399	Valid From	01/1995	Name	BLANCO SensorControl-BSC Spareparts
