Fitting set 3.5" pop-up control (replaced by 213084) AL

Skip to content Jump to the navigation menu

                    Article Number
                    138079


no longer available since 03/2000

Added to Your Shopping Cart

Spare Parts

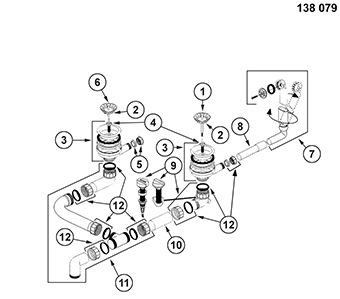

Valid From	Name
Position Number	1	Art. ID	119146	Valid From	06/1996	Name	Pop-up Basket strainer 3.5" universal (18 drainage slots) AL Spareparts
Position Number	2	Art. ID	116116	Valid From	06/1996	Name	Seal for basket strainer 3.5" Ø=51 mm since 10/2006 (modified) AL
Position Number	3	Art. ID	120665	Valid From	06/1996	Name	Valve 3.5'' with overflow G 0.5'' AL, white
Position Number	4	Art. ID	119741	Valid From	06/1996	Name	Hollow screw G 1/4'' length = 35 mm AL
Position Number		Art. ID	125718	Valid From	06/1996	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	5	Art. ID	116355	Valid From	06/1996	Name	Sealing clip with seal for overflow AL
Position Number	6	Art. ID	125590	Valid From	06/1996	Name	Basket strainer 3.5" pin (18 drainage slots) AL Spareparts
Position Number	7	Art. ID	126081	Valid From	06/1996	Name	Overflow set round/oval extendable bowl AL Spareparts
Position Number	8	Art. ID	125614	Valid From	06/1996	Name	Extension pipe overflow Ø 30 mm, length: 130 mm AL
Position Number	9	Art. ID	120338	Valid From	06/1996	Name	Bowden cable 700 mm withTurning unit and angle cleat AL
Position Number	10	Art. ID	118567	Valid From	06/1996	Name	Pipe Ø 40 mm, length: 190 mm BL (AL)
Position Number	11	Art. ID	120674	Valid From	06/1996	Name	Piping double bowls manual Ø= 40 mm AL
Position Number	12	Art. ID	120676	Valid From	06/1996	Name	Seal set DN 30/40 AL
Position Number	100	Art. ID	515399	Valid From	06/1996	Name	BLANCO SensorControl-BSC Spareparts
