Fitting set 3.5" pop-up control + 1.5" manual AXIA 6 S (replaced by 222432)

Skip to content Jump to the navigation menu

                    Article Number
                    214781


no longer available since 06/2008

Added to Your Shopping Cart

Ersatzteile

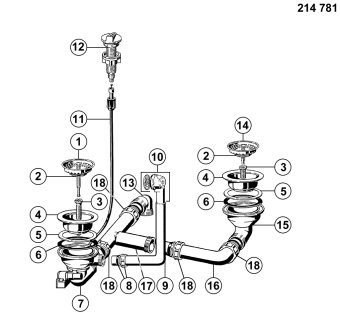

Valid From	Name
Position Number	1	Art. ID	125555	Valid From	07/2001	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	117497	Valid From	07/2001	Name	Dichtung für Siebkörbchen Ø=52 mm Silikon (verbesserte Ausführung) VI
Position Number		Art. ID	125556	Valid From	07/2001	Name	Disc with seal Ø=53mm (replaced by 117497) VI
Position Number	3	Art. ID	125572	Valid From	07/2001	Name	Hollow screw M12 x 1.5 length = 28 mm VI
Position Number		Art. ID	125718	Valid From	07/2001	Name	Hohlschraubenschlüssel Ventilkelch Edelstahl
Position Number	4	Art. ID	125568	Valid From	07/2001	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	5	Art. ID	125570	Valid From	07/2001	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125661	Valid From	07/2001	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	7	Art. ID	125573	Valid From	07/2001	Name	Ablaufventil 3,5" mit Überlauf + Bowdenzug, weiß
Position Number	8	Art. ID	125668	Valid From	07/2001	Name	Überwurfmutter mit Dichtung Ø=25 mm VI
Position Number	9	Art. ID	125666	Valid From	07/2001	Name	Angled pipe overflow Ø 25 mm, length: 150 x 220 mm VI
Position Number	10	Art. ID	125351	Valid From	07/2001	Name	Überlauf rund komplett mit Ablaufrohr VI
Position Number	11	Art. ID	128628	Valid From	07/2001	Name	Bowden cable 600 mm with nut VI
Position Number		Art. ID	901983	Valid From	07/2001	Name	Bowdenzug Länge= 530 mm (ersetzt durch 128628)
Position Number	12	Art. ID	119293	Valid From	07/2001	Name	Pop-up control stainless steel round BL (EB)
Position Number		Art. ID	118321	Valid From	07/2001	Name	Pop-up turning unit stainless steel complete (replaced by 119293) EB
Position Number		Art. ID	217830	Valid From	07/2001	Name	Drehbetätigung Edelstahl komplett grau (ersetzt durch 118321) VI
Position Number	13	Art. ID	118823	Valid From	07/2001	Name	Drain angle to siphon Ø 40 mm, length: 42 x 70 mm EB
Position Number		Art. ID	125670	Valid From	07/2001	Name	Ablaufwinkel zum Siphon 1,5" Ø=40 mm, Länge: 70 mm (ersetzt durch 118823) VI
Position Number	14	Art. ID	125561	Valid From	07/2001	Name	Basket strainer 3.5" pin Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	15	Art. ID	128642	Valid From	07/2001	Name	Drain valve for hollow screw without overflow VI, white
Position Number	16	Art. ID	116729	Valid From	07/2001	Name	L-connection without thread Ø 40 mm, length: 90 x 340 mm VI
Position Number		Art. ID	125672	Valid From	07/2001	Name	L-connecting pipe Ø 40 mm, length: 70 x 180 mm (replaced by 116729) VI
Position Number	17	Art. ID	125671	Valid From	07/2001	Name	T-piece Ø=40 mm x 230 mm complete VI
Position Number	18	Art. ID	125669	Valid From	07/2001	Name	Cap nut with seal Ø=40 mm VI
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC Spareparts
Position Number		Art. ID	515400	Valid From	07/2001	Name	SensorControl-BSC Spareparts
