Fitting set 3.5" pop-up control + 2x 1.5 manual DELTA ceramic (replaced by 224819)

Skip to content Jump to the navigation menu

                    Article Number
                    215003


no longer available since 03/2011

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	125555	Valid From	10/2002	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	117497	Valid From	05/2008	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number		Art. ID	125556	Valid From	10/2002	Name	Disc with seal Ø=53mm (replaced by 117497) VI
Position Number	3	Art. ID	901995	Valid From	10/2002	Name	Hollow screw M12x1,5 length = 43 mm VI
Position Number		Art. ID	125718	Valid From	10/2002	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	4	Art. ID	125568	Valid From	10/2002	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	5	Art. ID	125570	Valid From	10/2002	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125661	Valid From	10/2002	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	7	Art. ID	125573	Valid From	10/2002	Name	Drain valve 3.5" with overflow +bowden cable, white
Position Number	8	Art. ID	125669	Valid From	10/2002	Name	Cap nut with seal Ø=40 mm VI

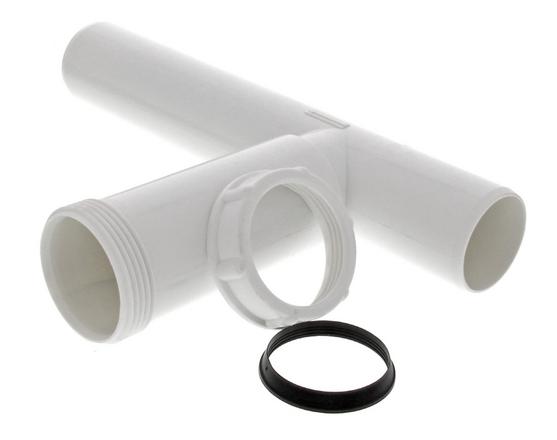

Position Number	9	Art. ID	125671	Valid From	10/2002	Name	T-piece Ø=40 mm x 230 mm complete VI

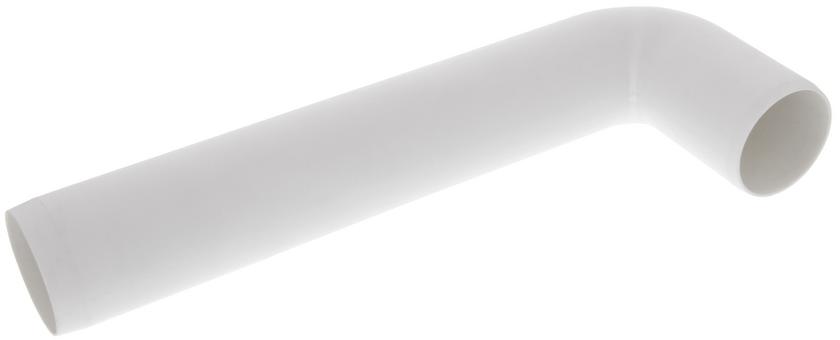

Position Number	10	Art. ID	116729	Valid From	10/2002	Name	L-connection without thread Ø 40 mm, length: 90 x 340 mm VI

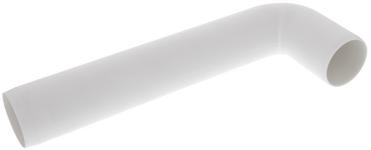

Position Number		Art. ID	116744	Valid From	10/2002	Name	L-connection Ø 40 mm, length: 90 x 240 mm (replaced by 116729)
Position Number	12	Art. ID	125566	Valid From	10/2002	Name	Basket strainer 1.5" pin (18 drainage slots) VI Spareparts
Position Number	13	Art. ID	117498	Valid From	05/2008	Name	Seal for basket strainer Ø = 35 / 42 mm silicon (revised version) VI
Position Number		Art. ID	901992	Valid From	10/2002	Name	Seal for basket strainer (replaced by 117498)
Position Number	14	Art. ID	128628	Valid From	10/2002	Name	Bowden cable 600 mm with nut VI
Position Number	15	Art. ID	119293	Valid From	10/2002	Name	Pop-up control stainless steel round BL (EB)
Position Number		Art. ID	118321	Valid From	10/2002	Name	Pop-up turning unit stainless steel complete (replaced by 119293) EB
Position Number		Art. ID	217830	Valid From	10/2002	Name	Pop-up turning unit stainless steel complete grey (replaced by 118321 VI
Position Number	16	Art. ID	125668	Valid From	01/2000	Name	Cap nut Ø=25 mm with seal VI

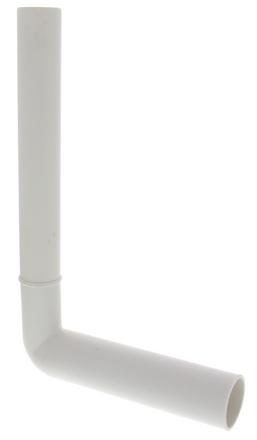

Position Number	17	Art. ID	139208	Valid From	10/2002	Name	Overflow pipe Ø 25 mm, length: 210 mm and Ø 32 mm, length: 130mm

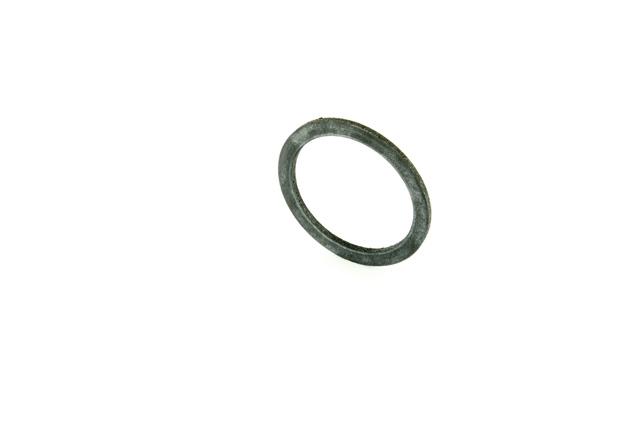

Position Number	18	Art. ID	125585	Valid From	10/2002	Name	Seal 1 1/2" 36 x 45 x 2 VI
Position Number	19	Art. ID	125658	Valid From	10/2002	Name	Countersink screw valve M6 Length=35 mm VI

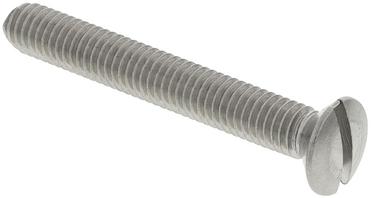

Position Number		Art. ID	125649	Valid From	10/2002	Name	Countersink screw M6 length = 46,5 mm VI (replaced by 125658)
Position Number	21	Art. ID	125926	Valid From	10/2002	Name	Basket strainer 1.5" no pin no seal Ø= 51 mm (18 drainage slots) VI

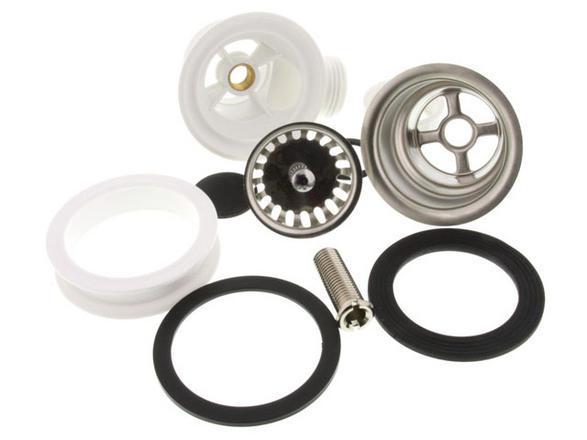

Position Number	22	Art. ID	125574	Valid From	10/2002	Name	Drain valve 1.5" complete withe screw + basket, white
Position Number	23	Art. ID	214778	Valid From	10/2002	Name	Sealing mass for ceramic sinks
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC Spareparts
Position Number		Art. ID	515400	Valid From	10/2002	Name	SensorControl-BSC Spareparts
