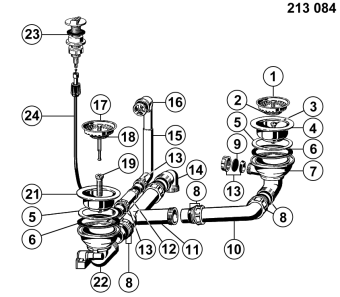

Fitting set 3.5" pop-up control + 3.5" manual (replaced by 224035, 224036 or 224805)

Skip to content Jump to the navigation menu

                    Article Number
                    213084


no longer available since 10/2010

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	125654	Valid From	01/2000	Name	Basket strainer 3.5" no pin Ø=80 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	117498	Valid From	05/2008	Name	Seal for basket strainer Ø = 35 / 42 mm silicon (revised version) VI
Position Number		Art. ID	901992	Valid From	01/2000	Name	Seal for basket strainer (replaced by 117498)
Position Number	3	Art. ID	125658	Valid From	01/2000	Name	Countersink screw valve M6 Length=35 mm VI
Position Number	4	Art. ID	128651	Valid From	01/2000	Name	Valve goblet countersink screw stainless steel VI
Position Number	5	Art. ID	125570	Valid From	01/2000	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125661	Valid From	01/2000	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	7	Art. ID	128814	Valid From	01/2000	Name	Drain valve 3.5" with overflowconnection VI, white
Position Number	8	Art. ID	125669	Valid From	01/2000	Name	Cap nut with seal Ø=40 mm VI
Position Number	9	Art. ID	125641	Valid From	01/2000	Name	Sealing washer for overflow d=25 mm VI
Position Number	10	Art. ID	116729	Valid From	01/2000	Name	L-connection without thread Ø 40 mm, length: 90 x 340 mm VI
Position Number		Art. ID	125672	Valid From	01/2000	Name	L-connecting pipe Ø 40 mm, length: 70 x 180 mm (replaced by 116729) VI
Position Number	11	Art. ID	125671	Valid From	01/2000	Name	T-piece Ø=40 mm x 230 mm complete VI

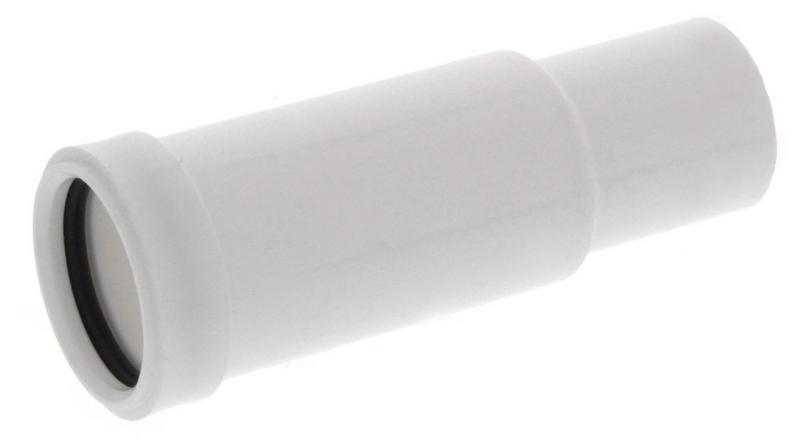

Position Number	12	Art. ID	125552	Valid From	01/2000	Name	Extension pipe for overflow bow Ø 25 mm, length: 90 mm

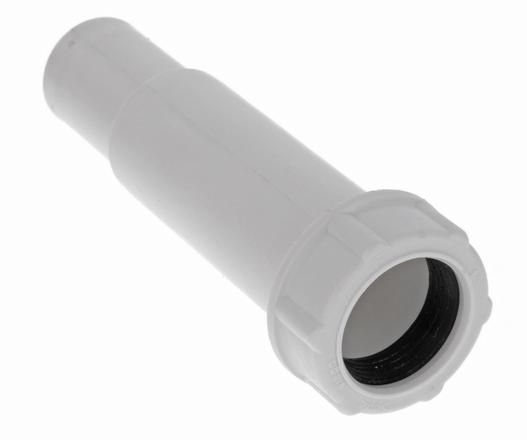

Position Number		Art. ID	125667	Valid From	01/2000	Name	Extension overflow Ø 25 mm, length: 115 mm (replaced by 125552) VI
Position Number	13	Art. ID	125668	Valid From	01/2000	Name	Cap nut Ø=25 mm with seal VI
Position Number	14	Art. ID	118823	Valid From	01/2000	Name	Drain angle to siphon Ø 40 mm, length: 42 x 70 mm EB
Position Number		Art. ID	125670	Valid From	01/2000	Name	Drain angle to siphon 1,5" Ø 40 mm length: 70 mm (replaced by 118823 )VI
Position Number	15	Art. ID	125666	Valid From	01/2000	Name	Angled pipe overflow Ø 25 mm, length: 150 x 220 mm VI
Position Number	16	Art. ID	125351	Valid From	01/2000	Name	Overflow round complete with outflow pipe VI
Position Number	17	Art. ID	125555	Valid From	01/2000	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	18	Art. ID	117497	Valid From	05/2008	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number		Art. ID	125556	Valid From	01/2000	Name	Disc with seal Ø=53mm (replaced by 117497) VI
Position Number	19	Art. ID	125572	Valid From	01/2000	Name	Hollow screw M12 x 1.5 length = 28 mm VI
Position Number		Art. ID	125718	Valid From	01/2000	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	21	Art. ID	125568	Valid From	01/2000	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	22	Art. ID	125573	Valid From	01/2000	Name	Drain valve 3.5" with overflow +bowden cable, white
Position Number	23	Art. ID	119293	Valid From	01/2000	Name	Pop-up control stainless steel round BL (EB)
Position Number		Art. ID	118321	Valid From	01/2000	Name	Pop-up turning unit stainless steel complete (replaced by 119293) EB
Position Number		Art. ID	217830	Valid From	01/2000	Name	Pop-up turning unit stainless steel complete grey (replaced by 118321 VI
Position Number		Art. ID	137415	Valid From	01/2000	Name	Pop-up turning unit stainless steel (replaced by 217830) VI
Position Number		Art. ID	138077	Valid From	01/2000	Name	Handle turning unit (replaced by 217830)
Position Number	24	Art. ID	128628	Valid From	01/2000	Name	Bowden cable 600 mm with nut VI
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC Spareparts
Position Number		Art. ID	515400	Valid From	01/2000	Name	SensorControl-BSC Spareparts
