Fitting set 3.5" pop-up control + 3.5" manual (replaced by 224036)

Skip to content Jump to the navigation menu

                    Article Number
                    116358


no longer available since 06/2009

Added to Your Shopping Cart

Spare Parts

Valid From	Name

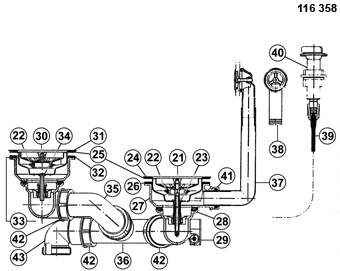

Position Number	21	Art. ID	901990	Valid From	01/1989	Name	Basket strainer 3.5" pop-up Ø= 80 mm complete (16 drainage slots) VI Spareparts
Position Number	22	Art. ID	117498	Valid From	01/1989	Name	Seal for basket strainer Ø = 35 / 42 mm silicon (revised version) VI
Position Number		Art. ID	901992	Valid From	01/1989	Name	Seal for basket strainer (replaced by 117498)
Position Number	23	Art. ID	901995	Valid From	01/1989	Name	Hollow screw M12x1,5 length = 43 mm VI
Position Number		Art. ID	125718	Valid From	01/1989	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	24	Art. ID	125659	Valid From	01/1989	Name	Valve goblet for hollow screw 3.5" stainless steel VI
Position Number	25	Art. ID	125570	Valid From	01/1989	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	26	Art. ID	125571	Valid From	01/1989	Name	Seal drain valve 108 x 84 x 3 VI
Position Number	27	Art. ID	128362	Valid From	01/1989	Name	Valve top with overflow until 6/96 VI, white
Position Number	28	Art. ID	125638	Valid From	01/1989	Name	Seal drain valve 58 x 80 x 10 VI
Position Number	29	Art. ID	125642	Valid From	01/1989	Name	90-degree-bow with bowden cable 600 VI, white
Position Number	30	Art. ID	125654	Valid From	01/1989	Name	Basket strainer 3.5" no pin Ø=80 mm (24 drainage slots) VI Spareparts
Position Number		Art. ID	901989	Valid From	01/1989	Name	Basket strainer 3.5" Ø= 81 mm complete (16 drain trenches) (replaced by 125654) VI Spareparts
Position Number	31	Art. ID	128651	Valid From	01/1989	Name	Valve goblet countersink screw stainless steel VI
Position Number	32	Art. ID	125661	Valid From	01/1989	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	33	Art. ID	128814	Valid From	01/1989	Name	Drain valve 3.5" with overflowconnection VI, white
Position Number		Art. ID	125641	Valid From	01/1989	Name	Sealing washer for overflow d=25 mm VI
Position Number		Art. ID	125717	Valid From	01/1989	Name	Drain valve 3.5" (replaced by 125814+125641+125668) VI, white
Position Number	34	Art. ID	125658	Valid From	01/1989	Name	Countersink screw valve M6 Length=35 mm VI
Position Number	35	Art. ID	116729	Valid From	01/1989	Name	L-connection without thread Ø 40 mm, length: 90 x 340 mm VI
Position Number		Art. ID	125672	Valid From	01/1989	Name	L-connecting pipe Ø 40 mm, length: 70 x 180 mm (replaced by 116729) VI
Position Number	36	Art. ID	139232	Valid From	01/1989	Name	T-piece 11/2 x 40 x 160 mm VI
Position Number	37	Art. ID	125666	Valid From	01/1989	Name	Angled pipe overflow Ø 25 mm, length: 150 x 220 mm VI
Position Number	38	Art. ID	125351	Valid From	01/1989	Name	Overflow round complete with outflow pipe VI
Position Number	39	Art. ID	128628	Valid From	01/1989	Name	Bowden cable 600 mm with nut VI
Position Number		Art. ID	901983	Valid From	01/1989	Name	Bowden cable length = 530 mm (replaced by 128628)
Position Number	40	Art. ID	119293	Valid From	01/1989	Name	Pop-up control stainless steel round BL (EB)
Position Number		Art. ID	118321	Valid From	01/1989	Name	Pop-up turning unit stainless steel complete (replaced by 119293) EB
Position Number		Art. ID	217830	Valid From	01/1989	Name	Pop-up turning unit stainless steel complete grey (replaced by 118321 VI
Position Number		Art. ID	138077	Valid From	01/1989	Name	Handle turning unit (replaced by 217830)
Position Number		Art. ID	137415	Valid From	01/1989	Name	Pop-up turning unit stainless steel (replaced by 217830) VI
Position Number	41	Art. ID	125668	Valid From	01/1989	Name	Cap nut Ø=25 mm with seal VI
Position Number	42	Art. ID	125669	Valid From	01/1989	Name	Cap nut with seal Ø=40 mm VI
Position Number	43	Art. ID	118823	Valid From	01/1989	Name	Drain angle to siphon Ø 40 mm, length: 42 x 70 mm EB
Position Number		Art. ID	125670	Valid From	01/1989	Name	Drain angle to siphon 1,5" Ø 40 mm length: 70 mm (replaced by 118823 )VI
