Fitting set 3.5" pop-up control + 3.5" manual (replaced by 224036)

Skip to content Jump to the navigation menu

                    Article Number
                    506814


no longer available since 12/2008

Added to Your Shopping Cart

Spare Parts

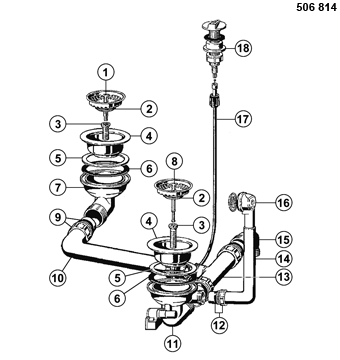

Valid From	Name
Position Number	1	Art. ID	125561	Valid From	01/1989	Name	Basket strainer 3.5" pin Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	117497	Valid From	05/2008	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number		Art. ID	125556	Valid From	01/1989	Name	Disc with seal Ø=53mm (replaced by 117497) VI
Position Number	3	Art. ID	125572	Valid From	01/1989	Name	Hollow screw M12 x 1.5 length = 28 mm VI
Position Number		Art. ID	125718	Valid From	01/1989	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	4	Art. ID	125568	Valid From	01/1989	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	5	Art. ID	125570	Valid From	01/1989	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125661	Valid From	01/1989	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	7	Art. ID	128642	Valid From	01/1989	Name	Drain valve for hollow screw without overflow VI, white
Position Number	8	Art. ID	125555	Valid From	01/1989	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	9	Art. ID	125669	Valid From	01/1989	Name	Cap nut with seal Ø=40 mm VI
Position Number	10	Art. ID	116729	Valid From	01/1989	Name	L-connection without thread Ø 40 mm, length: 90 x 340 mm VI
Position Number		Art. ID	125672	Valid From	01/1989	Name	L-connecting pipe Ø 40 mm, length: 70 x 180 mm (replaced by 116729) VI
Position Number	11	Art. ID	125573	Valid From	01/1989	Name	Drain valve 3.5" with overflow +bowden cable, white
Position Number	12	Art. ID	125668	Valid From	01/1989	Name	Cap nut Ø=25 mm with seal VI
Position Number	13	Art. ID	139232	Valid From	01/1989	Name	T-piece 11/2 x 40 x 160 mm VI
Position Number	14	Art. ID	125666	Valid From	01/1989	Name	Angled pipe overflow Ø 25 mm, length: 150 x 220 mm VI
Position Number	15	Art. ID	118823	Valid From	01/1989	Name	Drain angle to siphon Ø 40 mm, length: 42 x 70 mm EB
Position Number		Art. ID	125670	Valid From	01/1989	Name	Drain angle to siphon 1,5" Ø 40 mm length: 70 mm (replaced by 118823 )VI
Position Number	16	Art. ID	125351	Valid From	01/1989	Name	Overflow round complete with outflow pipe VI
Position Number	17	Art. ID	128628	Valid From	06/2003	Name	Bowden cable 600 mm with nut VI
Position Number		Art. ID	901983	Valid From	01/1989	Name	Bowden cable length = 530 mm (replaced by 128628)
Position Number	18	Art. ID	119293	Valid From	01/1989	Name	Pop-up control stainless steel round BL (EB)
Position Number		Art. ID	118321	Valid From	01/1989	Name	Pop-up turning unit stainless steel complete (replaced by 119293) EB
Position Number		Art. ID	217830	Valid From	01/1989	Name	Pop-up turning unit stainless steel complete grey (replaced by 118321 VI
Position Number		Art. ID	137415	Valid From	01/1989	Name	Pop-up turning unit stainless steel (replaced by 217830) VI
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC Spareparts
Position Number		Art. ID	515400	Valid From	01/1989	Name	SensorControl-BSC Spareparts
