Fitting set 3.5" pop-up control +1.5" manual without overflow (replaced by 224810)

Skip to content Jump to the navigation menu

                    Article Number
                    137101


no longer available since 12/2009

Added to Your Shopping Cart

Spare Parts

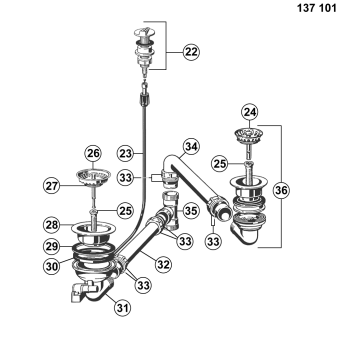

Valid From	Name
Position Number	22	Art. ID	119293	Valid From	01/1997	Name	Pop-up control stainless steel round BL (EB)
Position Number		Art. ID	118321	Valid From	01/1997	Name	Pop-up turning unit stainless steel complete (replaced by 119293) EB
Position Number		Art. ID	217830	Valid From	01/1997	Name	Pop-up turning unit stainless steel complete grey (replaced by 118321 VI
Position Number		Art. ID	138077	Valid From	01/1997	Name	Handle turning unit (replaced by 217830)
Position Number	23	Art. ID	128628	Valid From	01/1997	Name	Bowden cable 600 mm with nut VI
Position Number		Art. ID	901983	Valid From	01/1997	Name	Bowden cable length = 530 mm (replaced by 128628)
Position Number	24	Art. ID	125567	Valid From	01/1997	Name	Basket strainer 1.5" pin, no seal (18 drainage slots) VI
Position Number	25	Art. ID	901995	Valid From	01/1997	Name	Hollow screw M12x1,5 length = 43 mm VI
Position Number		Art. ID	125718	Valid From	01/1997	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	26	Art. ID	125555	Valid From	01/1997	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	27	Art. ID	117497	Valid From	01/1997	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number		Art. ID	125556	Valid From	01/1997	Name	Disc with seal Ø=53mm (replaced by 117497) VI
Position Number	28	Art. ID	125568	Valid From	01/1997	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	29	Art. ID	125570	Valid From	01/1997	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	30	Art. ID	125661	Valid From	01/1997	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	31	Art. ID	125573	Valid From	01/1997	Name	Drain valve 3.5" with overflow +bowden cable, white
Position Number		Art. ID	125641	Valid From	01/1997	Name	Sealing washer for overflow d=25 mm VI
Position Number		Art. ID	127766	Valid From	01/1997	Name	Drain valve with bowden cable 600 VI (replaced by 125573 and 125641), white
Position Number	32	Art. ID	118567	Valid From	01/1997	Name	Pipe Ø 40 mm, length: 190 mm BL (AL)
Position Number		Art. ID	127788	Valid From	01/1997	Name	Pipe Ø 40 mm, length: 245 mm (replaced by 118567) VI
Position Number	33	Art. ID	125669	Valid From	01/1997	Name	Cap nut with seal Ø=40 mm VI
Position Number	34	Art. ID	116729	Valid From	01/1997	Name	L-connection without thread Ø 40 mm, length: 90 x 340 mm VI
Position Number		Art. ID	125672	Valid From	01/1997	Name	L-connecting pipe Ø 40 mm, length: 70 x 180 mm (replaced by 116729) VI
Position Number	35	Art. ID	128667	Valid From	01/1997	Name	T-piece Ø= 40 mm short + equipment connection VI
Position Number	36	Art. ID	139201	Valid From	01/1997	Name	Valve 1.5" for hollow screw complete Viega, white
