Fitting set 3.5" pop-up control CLASSIC,LINE,TOGA,VIVA (replaced by 223165/217070) VI

Skip to content Jump to the navigation menu

                    Article Number
                    137992


no longer available since 04/2009

Added to Your Shopping Cart

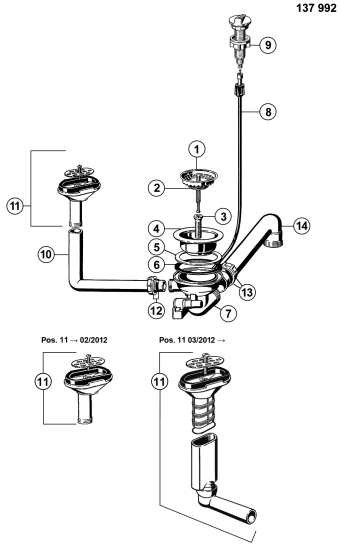

Spare Parts

Valid From	Name
Position Number	1	Art. ID	125555	Valid From	06/1996	Name	Basket strainer 3.5" pop up Ø 82 mm (24 drain trenches) Spareparts
Position Number	2	Art. ID	117497	Valid From	02/2008	Name	Seal base
Position Number		Art. ID	125556	Valid From	06/1996	Name	Washer with gasket Ø 53 mm (replaced by 117497) VI
Position Number	3	Art. ID	125572	Valid From	06/1996	Name	Hollow screw M12x1.5, length 28 mm
Position Number		Art. ID	125718	Valid From	06/1996	Name	Hollow screw key valve cup stainless steel
Position Number	4	Art. ID	125568	Valid From	06/1996	Name	Valve cup 3.5" hollow screw stainless steel
Position Number	5	Art. ID	125570	Valid From	06/1996	Name	Seal valve cup 111.5 x 85 x 1
Position Number	6	Art. ID	125661	Valid From	06/1996	Name	Seal drain valve 105 x 90 x 4 mm
Position Number	7	Art. ID	125573	Valid From	06/1996	Name	Drain valve 3.5" with overflow connection + Bowden cable, white
Position Number	8	Art. ID	128628	Valid From	06/2003	Name	Bowden cable 600 mm long with nut
Position Number		Art. ID	901983	Valid From	06/1996	Name	Bowden cable length 530 mm (replaced by 128628)
Position Number	9	Art. ID	119293	Valid From	06/1996	Name	Pop-up turning unit stainless steel round
Position Number		Art. ID	118321	Valid From	06/1996	Name	Pop-up turning unit stainless steel (replaced by 119293)
Position Number		Art. ID	217830	Valid From	06/1996	Name	Pop-up turning unit stainless steel thread grey (replaced by 118321)
Position Number		Art. ID	137415	Valid From	06/1996	Name	Pop-up turning unit stainless steel (replaced by 217830)
Position Number	10	Art. ID	137216	Valid From	06/1996	Name	Overflow bend Ø 25 mm, length 150 mm and Ø 32 mm, length 250 mm Miele
Position Number	11	Art. ID	117519	Valid From	02/2012	Name	Overflow long plug-in oval

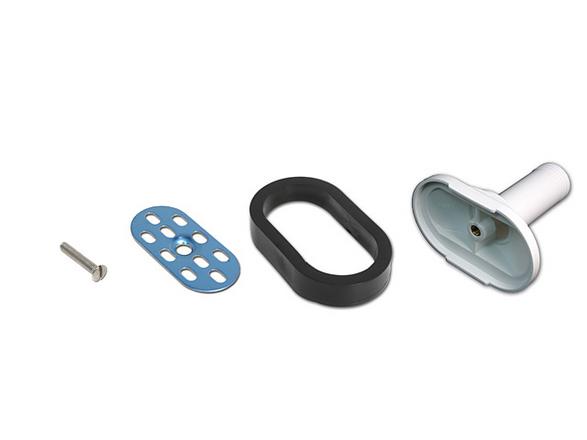

Position Number		Art. ID	125643	Valid From	06/1996	Name	Overflow V-shaped oval (replaced by 117519)
Position Number	12	Art. ID	125668	Valid From	06/1996	Name	Union nut with seal Ø 25 mm
Position Number	13	Art. ID	125669	Valid From	06/1996	Name	Union nut with seal Ø 40 mm
Position Number	14	Art. ID	139202	Valid From	06/1996	Name	Drain angle to siphon Ø 40 mm, length 50 x 245 mm
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC sensor-controlled remote drain control Spareparts
Position Number		Art. ID	515400	Valid From	06/1996	Name	BLANCO SensorControl-BSC (replaced by 515399) Spareparts
