Fitting set 3.5" pop-up control CLASSIC 5 S (replaced by 215261)

Skip to content Jump to the navigation menu

                    Article Number
                    137965


no longer available since 03/2004

Added to Your Shopping Cart

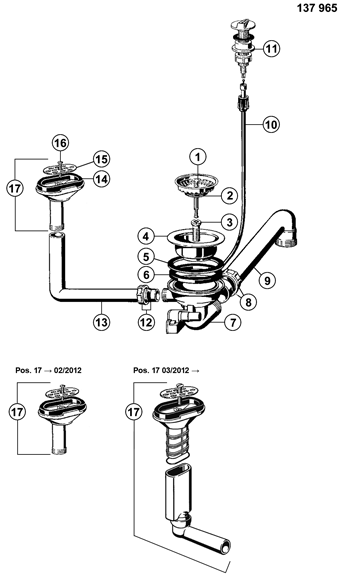

Spare Parts

Valid From	Name
Position Number	1	Art. ID	125555	Valid From	06/1996	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	125556	Valid From	06/1996	Name	Disc with seal Ø=53mm (replaced by 117497) VI
Position Number		Art. ID	117497	Valid From	06/1996	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number	3	Art. ID	125572	Valid From	06/1996	Name	Hollow screw M12 x 1.5 length = 28 mm VI
Position Number		Art. ID	125718	Valid From	06/1996	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	4	Art. ID	125568	Valid From	06/1996	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	5	Art. ID	125570	Valid From	06/1996	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125661	Valid From	06/1996	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	7	Art. ID	125573	Valid From	06/1996	Name	Drain valve 3.5" with overflow +bowden cable, white
Position Number	8	Art. ID	125669	Valid From	06/1996	Name	Cap nut with seal Ø=40 mm VI
Position Number	9	Art. ID	139202	Valid From	06/1996	Name	Drain angle to siphon Ø 40 mm, length: 50 x 245 mm VI
Position Number	10	Art. ID	128628	Valid From	06/1996	Name	Bowden cable 600 mm with nut VI
Position Number	11	Art. ID	119293	Valid From	06/1996	Name	Pop-up control stainless steel round BL (EB)
Position Number		Art. ID	118321	Valid From	06/1996	Name	Pop-up turning unit stainless steel complete (replaced by 119293) EB
Position Number		Art. ID	217830	Valid From	06/1996	Name	Pop-up turning unit stainless steel complete grey (replaced by 118321 VI
Position Number		Art. ID	137415	Valid From	06/1996	Name	Pop-up turning unit stainless steel (replaced by 217830) VI

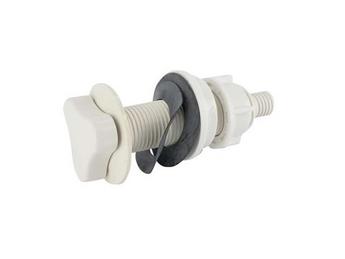

Position Number		Art. ID	137416	Valid From	06/1996	Name	Pop-up turning unit head white VI (replaced by 119293)

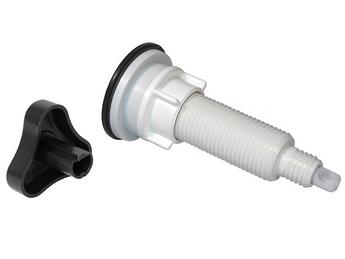

Position Number		Art. ID	137417	Valid From	06/1996	Name	Pop-up turning unit head black VI (replaced by 217830)

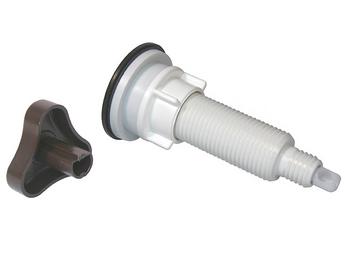

Position Number		Art. ID	137418	Valid From	06/1996	Name	Pop-up turning unit head brown VI (replaced by 217830)

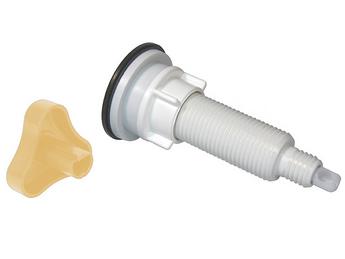

Position Number		Art. ID	137419	Valid From	06/1996	Name	Pop-up turning unit cappuccino (replaced by 217830) VI
Position Number	12	Art. ID	125668	Valid From	06/1996	Name	Cap nut Ø=25 mm with seal VI
Position Number	13	Art. ID	137216	Valid From	06/1996	Name	Overflow bow Ø 25 mm, length: 150 mm und Ø 32 mm, length: 250 mm Miele

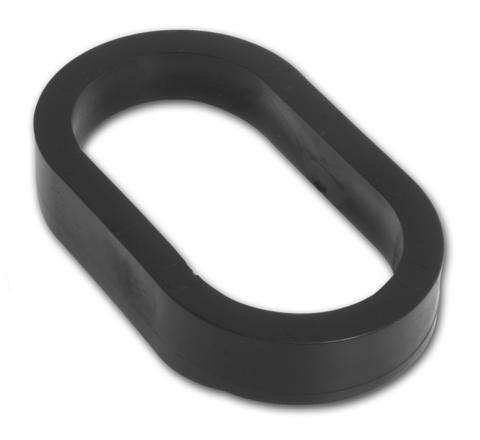

Position Number	14	Art. ID	125580	Valid From	06/1996	Name	Seal oval (replaced by 125643) VI
Position Number	15	Art. ID	901997	Valid From	06/1996	Name	Overflow sieve stlainless steel oval 34x71 mm (replaced by 125643 or 116674 or 117496)
Position Number	16	Art. ID	125658	Valid From	06/1996	Name	Countersink screw valve M6 Length=35 mm VI
Position Number		Art. ID	125649	Valid From	06/1996	Name	Countersink screw M6 length = 46,5 mm VI (replaced by 125658)
Position Number	17	Art. ID	117519	Valid From	02/2012	Name	Overflow oval long pluggable complete VI
Position Number		Art. ID	125643	Valid From	06/1996	Name	Overflow oval V-form (replaced by 117519) VI
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC Spareparts
Position Number		Art. ID	515400	Valid From	06/1996	Name	SensorControl-BSC Spareparts
