Fitting set 3.5" pop-up control overflow oval (replaced by 224809)

Skip to content Jump to the navigation menu

                    Article Number
                    214780


no longer available since 12/2009

Added to Your Shopping Cart

Spare Parts

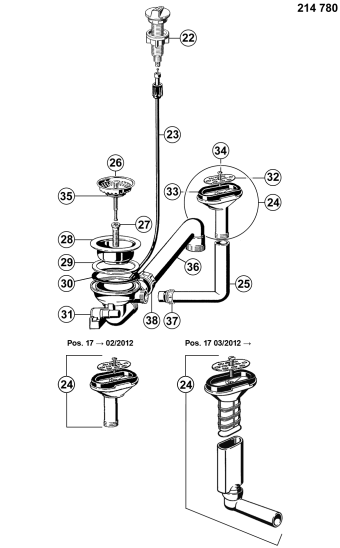

Valid From	Name
Position Number	22	Art. ID	119293	Valid From	07/2001	Name	Pop-up control stainless steel round BL (EB)
Position Number		Art. ID	118321	Valid From	07/2001	Name	Pop-up turning unit stainless steel complete (replaced by 119293) EB
Position Number		Art. ID	217830	Valid From	07/2001	Name	Pop-up turning unit stainless steel complete grey (replaced by 118321 VI
Position Number		Art. ID	138077	Valid From	07/2001	Name	Handle turning unit (replaced by 217830)
Position Number	23	Art. ID	128628	Valid From	07/2001	Name	Bowden cable 600 mm with nut VI
Position Number		Art. ID	901983	Valid From	07/2001	Name	Bowden cable length = 530 mm (replaced by 128628)
Position Number	24	Art. ID	117519	Valid From	07/2001	Name	Overflow oval long pluggable complete VI

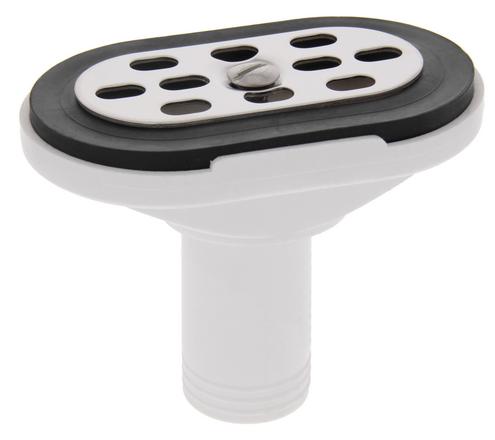

Position Number		Art. ID	116674	Valid From	07/2001	Name	Overflow short complete oval / round (replaced by 117519) VI
Position Number	25	Art. ID	137216	Valid From	07/2001	Name	Overflow bow Ø 25 mm, length: 150 mm und Ø 32 mm, length: 250 mm Miele
Position Number	26	Art. ID	125555	Valid From	07/2001	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	27	Art. ID	125572	Valid From	07/2001	Name	Hollow screw M12 x 1.5 length = 28 mm VI
Position Number		Art. ID	125718	Valid From	07/2001	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	28	Art. ID	125568	Valid From	07/2001	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	29	Art. ID	125570	Valid From	07/2001	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	30	Art. ID	125661	Valid From	07/2001	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	31	Art. ID	125573	Valid From	07/2001	Name	Drain valve 3.5" with overflow +bowden cable, white
Position Number	32	Art. ID	901997	Valid From	07/2001	Name	Overflow sieve stlainless steel oval 34x71 mm (replaced by 125643 or 116674 or 117496)

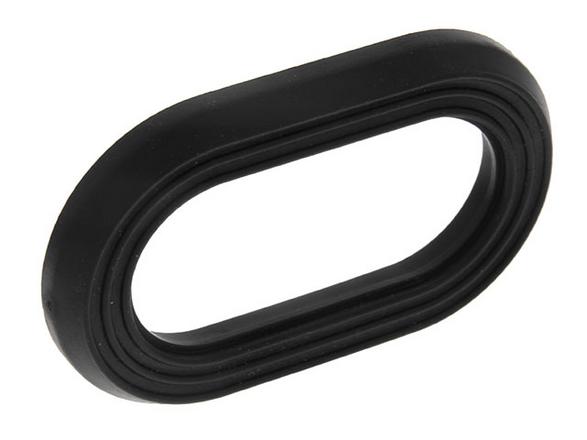

Position Number	33	Art. ID	116604	Valid From	07/2001	Name	Seal oval (replaced by 116674 or 117496)
Position Number	34	Art. ID	125658	Valid From	07/2001	Name	Countersink screw valve M6 Length=35 mm VI
Position Number		Art. ID	125649	Valid From	07/2001	Name	Countersink screw M6 length = 46,5 mm VI (replaced by 125658)
Position Number	35	Art. ID	117497	Valid From	07/2001	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number		Art. ID	125556	Valid From	07/2001	Name	Disc with seal Ø=53mm (replaced by 117497) VI
Position Number	36	Art. ID	139202	Valid From	07/2001	Name	Drain angle to siphon Ø 40 mm, length: 50 x 245 mm VI
Position Number	37	Art. ID	125668	Valid From	07/2001	Name	Cap nut Ø=25 mm with seal VI
Position Number	38	Art. ID	125669	Valid From	07/2001	Name	Cap nut with seal Ø=40 mm VI
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC Spareparts
Position Number		Art. ID	515400	Valid From	07/2001	Name	SensorControl-BSC Spareparts
