Fitting set 3.5" pop-up control turning handle white

Skip to content Jump to the navigation menu

                    Article Number
                    507357


no longer available since 03/2009

Added to Your Shopping Cart

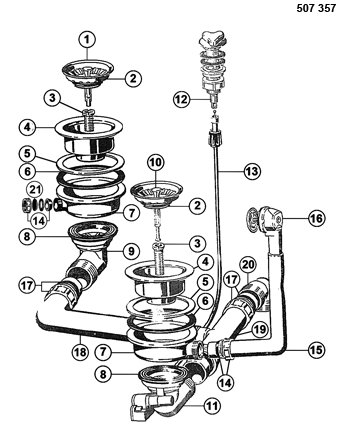

Spare Parts

Valid From	Name
Position Number	1	Art. ID	901991	Valid From	01/1991	Name	Basket strainer 3.5" pin Ø= 80 mm complete (16 drainage slots) VI Spareparts
Position Number	2	Art. ID	117498	Valid From	01/1991	Name	Seal for basket strainer Ø = 35 / 42 mm silicon (revised version) VI
Position Number		Art. ID	901992	Valid From	01/1991	Name	Seal for basket strainer (replaced by 117498)
Position Number	3	Art. ID	901995	Valid From	01/1991	Name	Hollow screw M12x1,5 length = 43 mm VI
Position Number		Art. ID	125718	Valid From	01/1991	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	4	Art. ID	125659	Valid From	01/1991	Name	Valve goblet for hollow screw 3.5" stainless steel VI
Position Number	5	Art. ID	125570	Valid From	01/1991	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125571	Valid From	01/1991	Name	Seal drain valve 108 x 84 x 3 VI
Position Number	7	Art. ID	128362	Valid From	01/1991	Name	Valve top with overflow until 6/96 VI, white
Position Number	8	Art. ID	125638	Valid From	01/1991	Name	Seal drain valve 58 x 80 x 10 VI
Position Number	9	Art. ID	127793	Valid From	01/1991	Name	Valve angle 1,5" VI, white
Position Number	10	Art. ID	901990	Valid From	01/1991	Name	Basket strainer 3.5" pop-up Ø= 80 mm complete (16 drainage slots) VI Spareparts
Position Number	11	Art. ID	125642	Valid From	01/1991	Name	90-degree-bow with bowden cable 600 VI, white
Position Number	12	Art. ID	119293	Valid From	01/1991	Name	Pop-up control stainless steel round BL (EB)
Position Number		Art. ID	137416	Valid From	01/1991	Name	Pop-up turning unit head white VI (replaced by 119293)
Position Number	13	Art. ID	128628	Valid From	01/1991	Name	Bowden cable 600 mm with nut VI
Position Number		Art. ID	901983	Valid From	01/1991	Name	Bowden cable length = 530 mm (replaced by 128628)
Position Number	14	Art. ID	125668	Valid From	01/1991	Name	Cap nut Ø=25 mm with seal VI
Position Number	15	Art. ID	125666	Valid From	01/1991	Name	Angled pipe overflow Ø 25 mm, length: 150 x 220 mm VI
Position Number	16	Art. ID	125351	Valid From	01/1991	Name	Overflow round complete with outflow pipe VI
Position Number	17	Art. ID	125669	Valid From	01/1991	Name	Cap nut with seal Ø=40 mm VI
Position Number	18	Art. ID	116729	Valid From	01/1991	Name	L-connection without thread Ø 40 mm, length: 90 x 340 mm VI
Position Number		Art. ID	116744	Valid From	01/1991	Name	L-connection Ø 40 mm, length: 90 x 240 mm (replaced by 116729)
Position Number	19	Art. ID	139232	Valid From	01/1991	Name	T-piece 11/2 x 40 x 160 mm VI
Position Number	20	Art. ID	118823	Valid From	01/1991	Name	Drain angle to siphon Ø 40 mm, length: 42 x 70 mm EB
Position Number		Art. ID	125670	Valid From	01/1991	Name	Drain angle to siphon 1,5" Ø 40 mm length: 70 mm (replaced by 118823 )VI
Position Number	21	Art. ID	125641	Valid From	01/1991	Name	Sealing washer for overflow d=25 mm VI
