Fitting set 3.5" with Bowden +1.5" manual Strato 6 S stainless steel (replaced by 224810)

Skip to content Jump to the navigation menu

                    Article Number
                    212270


no longer available since 11/2024

Added to Your Shopping Cart

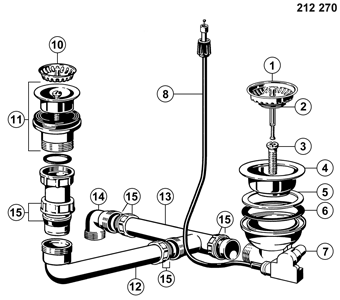

Spare Parts

Valid From	Name
Position Number	1	Art. ID	125555	Valid From	01/2000	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	117497	Valid From	01/2000	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number		Art. ID	125556	Valid From	01/2000	Name	Disc with seal Ø=53mm (replaced by 117497) VI
Position Number	3	Art. ID	125572	Valid From	01/2000	Name	Hollow screw M12 x 1.5 length = 28 mm VI
Position Number		Art. ID	125718	Valid From	01/2000	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	4	Art. ID	125568	Valid From	01/2000	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	5	Art. ID	125570	Valid From	01/2000	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125661	Valid From	01/2000	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	7	Art. ID	125573	Valid From	01/2000	Name	Drain valve 3.5" with overflow +bowden cable, white
Position Number		Art. ID	125641	Valid From	01/2000	Name	Sealing washer for overflow d=25 mm VI
Position Number		Art. ID	127766	Valid From	01/2000	Name	Drain valve with bowden cable 600 VI (replaced by 125573 and 125641), white
Position Number	8	Art. ID	128628	Valid From	01/2000	Name	Bowden cable 600 mm with nut VI
Position Number		Art. ID	901983	Valid From	01/2000	Name	Bowden cable length = 530 mm (replaced by 128628)
Position Number	10	Art. ID	125926	Valid From	01/2000	Name	Basket strainer 1.5" no pin no seal Ø= 51 mm (18 drainage slots) VI

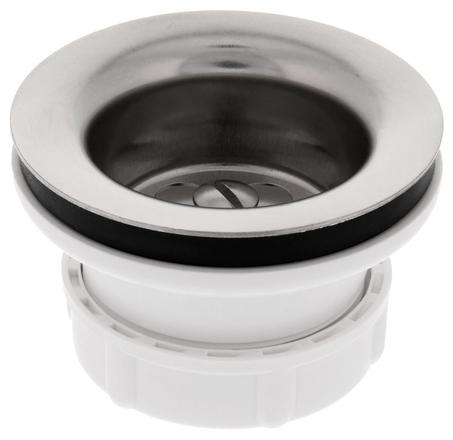

Position Number	11	Art. ID	117523	Valid From	01/2000	Name	Valve 1.5'' without overflow M6 outlet vertical D40 VI, white

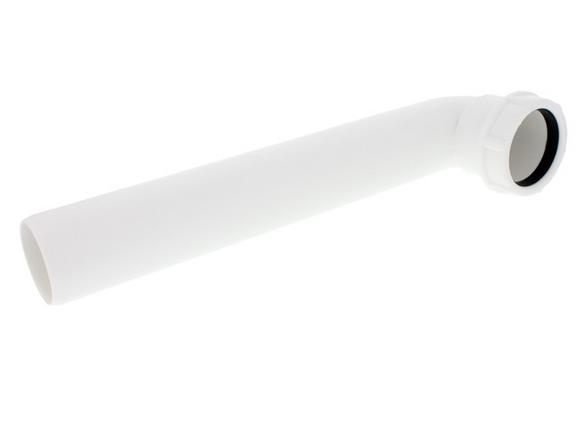

Position Number	12	Art. ID	139228	Valid From	01/2000	Name	L-outflow pipe Ø 40 mm, length: 50 x 245 mm VI
Position Number	13	Art. ID	125671	Valid From	01/2000	Name	T-piece Ø=40 mm x 230 mm complete VI
Position Number	14	Art. ID	118823	Valid From	01/2000	Name	Drain angle to siphon Ø 40 mm, length: 42 x 70 mm EB
Position Number		Art. ID	125670	Valid From	01/2000	Name	Drain angle to siphon 1,5" Ø 40 mm length: 70 mm (replaced by 118823 )VI
Position Number	15	Art. ID	125669	Valid From	01/2000	Name	Cap nut with seal Ø=40 mm VI
