                    Article Number
                    508153


no longer available since 10/2008

Added to Your Shopping Cart

Spare Parts

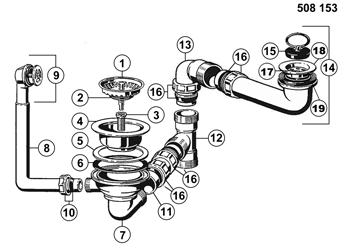

Valid From	Name
Position Number	1	Art. ID	125561	Valid From	01/1996	Name	Basket strainer 3.5" pin Ø=82 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	117497	Valid From	01/1996	Name	Seal for basket strainer Ø = 52 mm silicon (revised version) VI
Position Number		Art. ID	125556	Valid From	01/1996	Name	Disc with seal Ø=53mm (replaced by 117497) VI
Position Number	3	Art. ID	125572	Valid From	01/1996	Name	Hollow screw M12 x 1.5 length = 28 mm VI
Position Number		Art. ID	125718	Valid From	01/1996	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	4	Art. ID	125568	Valid From	01/1996	Name	Valve goblet hollow screw 3.5" stainless steel VI
Position Number	5	Art. ID	125570	Valid From	01/1996	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125661	Valid From	01/1996	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	7	Art. ID	125653	Valid From	01/1996	Name	Drain valve 3.5" with overflow for hollow screw VI, white
Position Number	8	Art. ID	125666	Valid From	01/1996	Name	Angled pipe overflow Ø 25 mm, length: 150 x 220 mm VI
Position Number	9	Art. ID	125351	Valid From	01/1996	Name	Overflow round complete with outflow pipe VI
Position Number	10	Art. ID	125668	Valid From	01/1996	Name	Cap nut Ø=25 mm with seal VI
Position Number	11	Art. ID	118567	Valid From	01/1996	Name	Pipe Ø 40 mm, length: 190 mm BL (AL)
Position Number		Art. ID	127788	Valid From	01/1996	Name	Pipe Ø 40 mm, length: 245 mm (replaced by 118567) VI
Position Number	12	Art. ID	128667	Valid From	01/1996	Name	T-piece Ø= 40 mm short + equipment connection VI
Position Number	13	Art. ID	139228	Valid From	01/1996	Name	L-outflow pipe Ø 40 mm, length: 50 x 245 mm VI
Position Number		Art. ID	139218	Valid From	01/1996	Name	L-connection pipe nut Ø 40 mm, length: 60 x 60 mm (replaced by 139228) VI
Position Number	14	Art. ID	116068	Valid From	01/1996	Name	Pipe, seal, plug VI, white
Position Number	15	Art. ID	901998	Valid From	01/1996	Name	Plug 1.5" 45 mm 10° black with ring
Position Number	16	Art. ID	125669	Valid From	01/1996	Name	Cap nut with seal Ø=40 mm VI
Position Number	17	Art. ID	125658	Valid From	01/1996	Name	Countersink screw valve M6 Length=35 mm VI
Position Number	18	Art. ID	116668	Valid From	01/1996	Name	Drainage strainer 1.5" for countersink screw VI
Position Number	19	Art. ID	125638	Valid From	01/1996	Name	Seal drain valve 58 x 80 x 10 VI
Position Number	99	Art. ID	222441	Valid From	01/1996	Name	Retrofit set 1 x 3.5'' with turning handle chrome with overflow Spareparts
Position Number		Art. ID	223162	Valid From	01/1996	Name	Retrofit set (without pull knob) VI Spareparts
Position Number		Art. ID	225112	Valid From	01/1996	Name	Pull pop-up control round plastic
Position Number		Art. ID	221339	Valid From	01/1996	Name	Pop-up control round chrome (metal) Spareparts
Position Number		Art. ID	221336	Valid From	01/1996	Name	Pop-up control round stainless steel finish Spareparts
Position Number		Art. ID	226540	Valid From	01/1996	Name	Pull up control round stainless steel
Position Number		Art. ID	222115	Valid From	01/1996	Name	Pull pop-up control round stainless steel satin polish Spareparts
Position Number		Art. ID	222118	Valid From	01/1996	Name	Pull pop-up control round stainless steel brushed finish Spareparts
Position Number		Art. ID	221901	Valid From	01/1996	Name	Pull pop-up control LEVOS chrome Spareparts
Position Number		Art. ID	221940	Valid From	01/1996	Name	Pull pop-up control LEVOS stainless steel satin polish Spareparts
Position Number		Art. ID	221941	Valid From	01/1996	Name	Pull pop-up control LEVOS stainless steel brushed finish Spareparts
Position Number		Art. ID	221902	Valid From	01/1996	Name	Pull pop-up control QUADRIS chrome Spareparts
Position Number		Art. ID	221942	Valid From	01/1996	Name	Pull pop-up control BLANCO QUADRIS stainless steel satin polish Spareparts
Position Number		Art. ID	221943	Valid From	01/1996	Name	Pull pop-up control QUADRIS stainless steel brushed finish Spareparts
Position Number		Art. ID	521294	Valid From	01/1996	Name	Pull pop-up control LIVIA chrome Spareparts
Position Number		Art. ID	521295	Valid From	01/1996	Name	Pull pop-up control LIVIA antique brass Spareparts
Position Number		Art. ID	521296	Valid From	01/1996	Name	Zug-Ablauffernbedienung LIVIA mangan Spareparts
Position Number	100	Art. ID	515399	Valid From	09/2011	Name	BLANCO SensorControl-BSC Spareparts
Position Number		Art. ID	515400	Valid From	01/1996	Name	SensorControl-BSC Spareparts
Position Number		Art. ID	125555	Valid From	01/1996	Name	Basket strainer 3.5" pop-up Ø=82 mm (24 drainage slots) VI Spareparts
