Fitting set with bowden cable MULTI brown

Skip to content Jump to the navigation menu

                    Article Number
                    503171


no longer available since 10/2004

Added to Your Shopping Cart

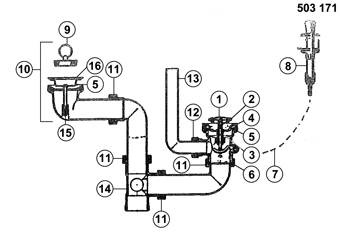

Spare Parts

Valid From	Name
Position Number	1	Art. ID	901996	Valid From	01/1985	Name	Plug 1.5" pop-up (0 drain trenches) VI Spareparts
Position Number	2	Art. ID	117498	Valid From	01/1985	Name	Seal for basket strainer Ø = 35 / 42 mm silicon (revised version) VI
Position Number		Art. ID	901992	Valid From	01/1985	Name	Seal for basket strainer (replaced by 117498)
Position Number	3	Art. ID	901995	Valid From	01/1985	Name	Hollow screw M12x1,5 length = 43 mm VI
Position Number		Art. ID	125718	Valid From	01/1985	Name	Hollow screw tool valve goblet sheet stainless steel
Position Number	4	Art. ID	116667	Valid From	01/1985	Name	Drainage strainer 1.5" for hollow screw VI
Position Number	5	Art. ID	125638	Valid From	01/1985	Name	Seal drain valve 58 x 80 x 10 VI
Position Number	6	Art. ID	125539	Valid From	01/1985	Name	Valve 1.5" with bowden cable VI, white
Position Number	7	Art. ID	128628	Valid From	01/1985	Name	Bowden cable 600 mm with nut VI
Position Number		Art. ID	901983	Valid From	01/1985	Name	Bowden cable length = 530 mm (replaced by 128628)
Position Number	8	Art. ID	225112	Valid From	01/1985	Name	Pull pop-up control round plastic
Position Number		Art. ID	901982	Valid From	01/1985	Name	Pull unit chrome (replaced by 225112)
Position Number		Art. ID	901979	Valid From	01/1985	Name	Pull unit brown VI (replaced by 901982)
Position Number	9	Art. ID	901998	Valid From	01/1985	Name	Plug 1.5" 45 mm 10° black with ring
Position Number	10	Art. ID	116068	Valid From	01/1985	Name	Pipe, seal, plug VI, white
Position Number	11	Art. ID	125669	Valid From	01/1985	Name	Cap nut with seal Ø=40 mm VI
Position Number	12	Art. ID	125668	Valid From	01/1985	Name	Cap nut Ø=25 mm with seal VI
Position Number	13	Art. ID	125666	Valid From	01/1985	Name	Angled pipe overflow Ø 25 mm, length: 150 x 220 mm VI
Position Number	14	Art. ID	128667	Valid From	01/1985	Name	T-piece Ø= 40 mm short + equipment connection VI
Position Number	15	Art. ID	125658	Valid From	01/1985	Name	Countersink screw valve M6 Length=35 mm VI
Position Number	16	Art. ID	116668	Valid From	01/1985	Name	Drainage strainer 1.5" for countersink screw VI
