Fitting set with pop-up white (replaced by 137968 + 137974)

Skip to content Jump to the navigation menu

                    Article Number
                    506509


no longer available since 01/1999

Added to Your Shopping Cart

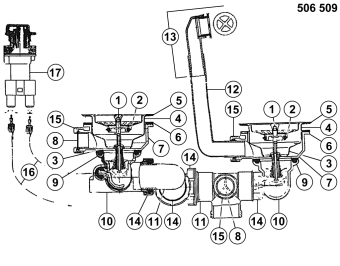

Spare Parts

Valid From	Name
Position Number	1	Art. ID	901990	Valid From	01/1997	Name	Basket strainer 3.5" pop up Ø 80 mm complete (16 drain trenches) Spareparts
Position Number	2	Art. ID	117498	Valid From	05/2008	Name	Seal basket Ø52 mm silicone (improved)
Position Number		Art. ID	901992	Valid From	01/1997	Name	Seal basket 117563
Position Number	3	Art. ID	901995	Valid From	01/1997	Name	Hollow screw M12x1.5, length 43 mm
Position Number		Art. ID	125718	Valid From	01/1997	Name	Hollow screw key valve cup stainless steel
Position Number	4	Art. ID	125659	Valid From	01/1997	Name	Valve cup 3.5" hollow screw stainless steel
Position Number	5	Art. ID	125570	Valid From	01/1997	Name	Seal valve cup 111.5 x 85 x 1
Position Number	6	Art. ID	125571	Valid From	01/1997	Name	Seal drain valve 108 x 84 x 3 mm
Position Number	7	Art. ID	128362	Valid From	01/1997	Name	Valve top part with overflow connection until 06/1996, white
Position Number	8	Art. ID	125641	Valid From	01/1997	Name	Sealing washer for overflow Ø25 mm
Position Number	9	Art. ID	125638	Valid From	01/1997	Name	Seal drain valve 58 x 80 x 10 mm
Position Number	10	Art. ID	125642	Valid From	01/1997	Name	90-degree bend with Bowden cable 600, white
Position Number	11	Art. ID	127793	Valid From	01/1997	Name	Valve angle 1.5", white
Position Number	12	Art. ID	125666	Valid From	01/1997	Name	Angle pipe overflow Ø 25 mm, length 150 x 220 mm
Position Number	13	Art. ID	125351	Valid From	01/1997	Name	Overflow round with drain pipe
Position Number	14	Art. ID	125552	Valid From	01/1997	Name	Extension pipe for overflow bend Ø 25 mm, length 90 mm
Position Number		Art. ID	125667	Valid From	01/1997	Name	Overflow extension Ø 25 mm, length 115 mm (replaced by 125552)
Position Number	15	Art. ID	125668	Valid From	01/1997	Name	Union nut with seal Ø 25 mm
Position Number	16	Art. ID	128628	Valid From	01/1997	Name	Bowden cable 600 mm long with nut
Position Number	17	Art. ID	137973	Valid From	01/2010	Name	Double turning unit chrome Spareparts
Position Number		Art. ID	125543	Valid From	01/2010	Name	Turn knob double rotary control chrome (replaced by 137973)
Position Number		Art. ID	137974	Valid From	01/1997	Name	Double turning unit white
