Fitting set

                    Article Number
                    504639


no longer available since 09/2008

Added to Your Shopping Cart

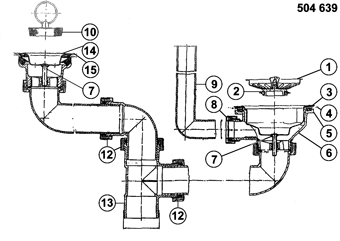

Spare Parts

Valid From	Name
Position Number	1	Art. ID	125654	Valid From	01/1985	Name	Basket strainer 3.5" manual closing Ø 80 mm (24 drain trenches) Spareparts
Position Number		Art. ID	901989	Valid From	01/1985	Name	Basket strainer 3.5" manual closing Ø 81 mm (16 drain trenches) (replaced by 125654) Spareparts
Position Number	2	Art. ID	117498	Valid From	01/1985	Name	Seal basket Ø52 mm silicone (improved)
Position Number		Art. ID	901992	Valid From	01/1985	Name	Seal basket 117563
Position Number	3	Art. ID	128651	Valid From	01/1985	Name	Valve cup countersunk screw stainless steel
Position Number	4	Art. ID	125570	Valid From	01/1985	Name	Seal valve cup 111.5 x 85 x 1
Position Number	5	Art. ID	125661	Valid From	01/1985	Name	Seal drain valve 105 x 90 x 4 mm
Position Number	6	Art. ID	128681	Valid From	01/1985	Name	Drain valve 3.5" vertical with overflow connection white, white
Position Number	7	Art. ID	125658	Valid From	01/1985	Name	Countersink screw M6, length 35 mm
Position Number	8	Art. ID	125668	Valid From	01/1985	Name	Union nut with seal Ø 25 mm
Position Number	9	Art. ID	137216	Valid From	01/1985	Name	Overflow bend Ø 25 mm, length 150 mm and Ø 32 mm, length 250 mm Miele
Position Number	10	Art. ID	901998	Valid From	01/1985	Name	Rubber plug 1.5" black with ring Ø 45 mm 10°
Position Number	12	Art. ID	125669	Valid From	01/1985	Name	Union nut with seal Ø 40 mm
Position Number	13	Art. ID	128667	Valid From	01/1985	Name	T-piece Ø 40 mm short with appliance connection
Position Number	14	Art. ID	116668	Valid From	01/1985	Name	Drain strainer 1.5" countersunk screw
Position Number	15	Art. ID	125638	Valid From	01/1985	Name	Seal drain valve 58 x 80 x 10 mm
