Fittingset 1 x 3.5" pop-up control C-overflow angled modify sieve

Skip to content Jump to the navigation menu

                    Article Number
                    225729


New turning unit (119293) since 23.04.2012!

Added to Your Shopping Cart

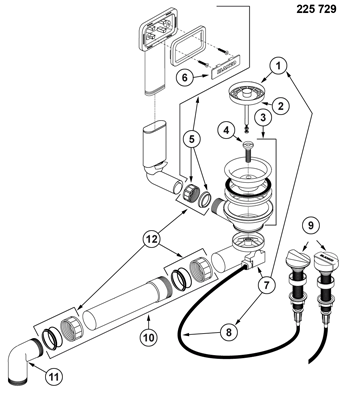

Spare Parts

Valid From	Name
Position Number	1	Art. ID	119145	Valid From	01/2011	Name	Basket strainer 3.5" RADIAL pop up (20 drain trenches) Spareparts
Position Number	2	Art. ID	116116	Valid From	01/2011	Name	Seal basket Ø35/42 mm silicone (improved)
Position Number	3	Art. ID	120666	Valid From	01/2011	Name	Valve 3.5" plug-in, white
Position Number	4	Art. ID	119741	Valid From	01/2011	Name	Hollow screw thread 1/4", length 35 mm
Position Number		Art. ID	125718	Valid From	01/2011	Name	Hollow screw key valve cup stainless steel
Position Number	5	Art. ID	118802	Valid From	01/2011	Name	Overflow C-overflow length 92 mm stainless steel
Position Number	6	Art. ID	117552	Valid From	01/2011	Name	Cover clip for Overflow rectangular
Position Number	7	Art. ID	118981	Valid From	01/2011	Name	Retrofit set put-on with Bowden standard (without pull knob) AL Spareparts
Position Number		Art. ID	118982	Valid From	01/2011	Name	Retrofit set put-on with Bowden modified tamis (without pull knob) AL (replaced by 118981 and 119145) Spareparts
Position Number	8	Art. ID	139373	Valid From	01/2011	Name	Bowden cable 700 mm long
Position Number	9	Art. ID	119293	Valid From	01/2011	Name	Pop-up turning unit stainless steel round
Position Number	10	Art. ID	118927	Valid From	01/2011	Name	Extension pipe Ø 40 mm, length 250 mm
Position Number	11	Art. ID	118518	Valid From	01/2011	Name	Drain angle 90° Ø 40 mm, length 53 x 59 mm
Position Number	12	Art. ID	120676	Valid From	01/2011	Name	Seal set and screws
Position Number	100	Art. ID	515399	Valid From	01/2011	Name	BLANCO SensorControl-BSC sensor-controlled remote drain control Spareparts
