Pop-up set 3.5'' brown (replaced by 137965)

Skip to content Jump to the navigation menu

                    Article Number
                    508859


no longer available since 02/2012

Added to Your Shopping Cart

Spare Parts

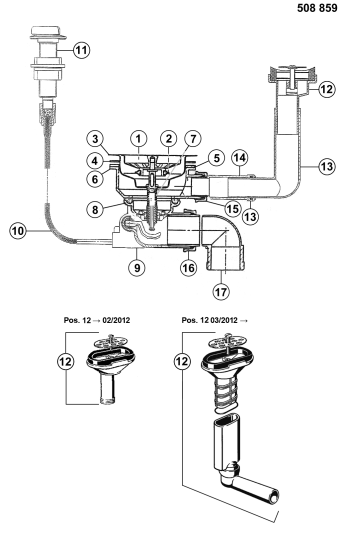

Valid From	Name
Position Number	1	Art. ID	901990	Valid From	01/1993	Name	Basket strainer 3.5" pop up Ø 80 mm complete (16 drain trenches) Spareparts
Position Number	2	Art. ID	117498	Valid From	01/1993	Name	Seal basket Ø52 mm silicone (improved)
Position Number		Art. ID	901992	Valid From	01/1993	Name	Seal basket 117563
Position Number	3	Art. ID	125659	Valid From	01/1993	Name	Valve cup 3.5" hollow screw stainless steel
Position Number		Art. ID	125718	Valid From	01/1993	Name	Hollow screw key valve cup stainless steel
Position Number	4	Art. ID	125570	Valid From	01/1993	Name	Seal valve cup 111.5 x 85 x 1
Position Number	5	Art. ID	125571	Valid From	01/1993	Name	Seal drain valve 108 x 84 x 3 mm
Position Number	6	Art. ID	128362	Valid From	01/1993	Name	Valve top part with overflow connection until 06/1996, white
Position Number	7	Art. ID	901995	Valid From	01/1993	Name	Hollow screw M12x1.5, length 43 mm
Position Number	8	Art. ID	125638	Valid From	01/1993	Name	Seal drain valve 58 x 80 x 10 mm
Position Number	9	Art. ID	125642	Valid From	01/1993	Name	90-degree bend with Bowden cable 600, white
Position Number	10	Art. ID	128628	Valid From	01/1993	Name	Bowden cable 600 mm long with nut
Position Number		Art. ID	901983	Valid From	01/1993	Name	Bowden cable length 530 mm (replaced by 128628)
Position Number	11	Art. ID	119293	Valid From	01/1993	Name	Pop-up turning unit stainless steel round
Position Number		Art. ID	118321	Valid From	01/1993	Name	Pop-up turning unit stainless steel (replaced by 119293)
Position Number		Art. ID	217830	Valid From	01/1993	Name	Pop-up turning unit stainless steel thread grey (replaced by 118321)
Position Number		Art. ID	137418	Valid From	01/1993	Name	Pop-up turning unit brown (replaced by 217830)
Position Number	12	Art. ID	117519	Valid From	02/2012	Name	Overflow long plug-in oval
Position Number		Art. ID	125643	Valid From	01/1993	Name	Overflow V-shaped oval (replaced by 117519)
Position Number	13	Art. ID	137216	Valid From	01/1993	Name	Overflow bend Ø 25 mm, length 150 mm and Ø 32 mm, length 250 mm Miele
Position Number	14	Art. ID	125552	Valid From	01/1993	Name	Extension pipe for overflow bend Ø 25 mm, length 90 mm
Position Number	15	Art. ID	125668	Valid From	01/1993	Name	Union nut with seal Ø 25 mm
Position Number	16	Art. ID	125669	Valid From	01/1993	Name	Union nut with seal Ø 40 mm
Position Number	17	Art. ID	139202	Valid From	01/1993	Name	Drain angle to siphon Ø 40 mm, length 50 x 245 mm
