Retrofit set 2 x 3,5" with doubleturning handle chrome with overflow

Skip to content Jump to the navigation menu

                    Article Number
                    222440


no longer available since 01/2020

Added to Your Shopping Cart

Spare Parts

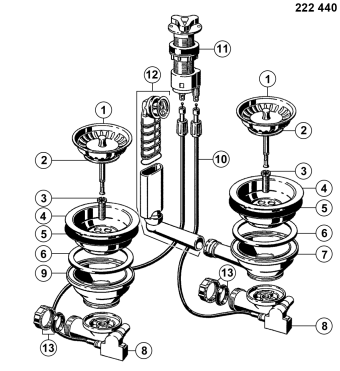

Valid From	Name
Position Number	1	Art. ID	125555	Valid From	08/2008	Name	Basket strainer 3.5" pop up Ø 82 mm (24 drain trenches) Spareparts
Position Number	2	Art. ID	117497	Valid From	08/2008	Name	Seal base
Position Number	3	Art. ID	125572	Valid From	08/2008	Name	Hollow screw M12x1.5, length 28 mm
Position Number	4	Art. ID	125568	Valid From	08/2008	Name	Valve cup 3.5" hollow screw stainless steel
Position Number	5	Art. ID	125570	Valid From	08/2008	Name	Seal valve cup 111.5 x 85 x 1
Position Number	6	Art. ID	125661	Valid From	08/2008	Name	Seal drain valve 105 x 90 x 4 mm
Position Number	7	Art. ID	117505	Valid From	08/2008	Name	Valve top part 3.5" with overflow connection 60 mm, white
Position Number	8	Art. ID	117516	Valid From	08/2008	Name	Valve bottom part M12 with Bowden cable, white
Position Number	9	Art. ID	117504	Valid From	08/2008	Name	Valve top part 3.5" without overflow connection, white
Position Number	10	Art. ID	128628	Valid From	08/2008	Name	Bowden cable 600 mm long with nut

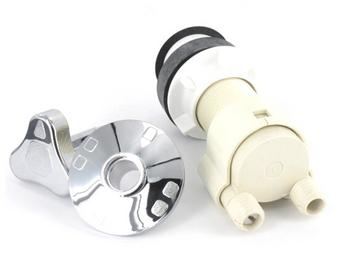

Position Number	11	Art. ID	137973	Valid From	08/2008	Name	Double turning unit chrome Spareparts
Position Number		Art. ID	125543	Valid From	08/2008	Name	Turn knob double rotary control chrome (replaced by 137973)
Position Number	12	Art. ID	117520	Valid From	08/2008	Name	Overflow plug-in round
Position Number	13	Art. ID	125669	Valid From	08/2008	Name	Union nut with seal Ø 40 mm
