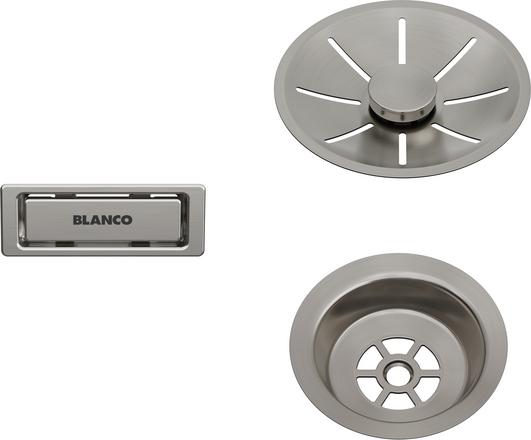

Waste fitting set 1x3,5'' RC InFino SPL, satin platinum

                    Article Number
                    207435


InFino

Added to Your Shopping Cart

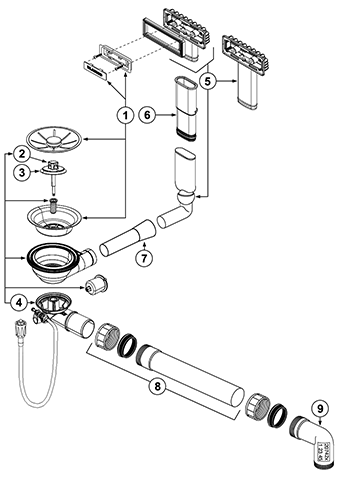

Spare Parts

Valid From	Name
Position Number	1	Art. ID	207406	Valid From	01/2024	Name	Set: outlet/overflow satin platinum single bowl, satin platinum Spareparts
Position Number	2	Art. ID	121711	Valid From	01/2024	Name	Plug pop-up InFino
Position Number		Art. ID	122714	Valid From	01/2024	Name	Socket wrench hexagon (key size 4mm)
Position Number	3	Art. ID	121715	Valid From	01/2024	Name	lip seal curved Ø53
Position Number	4	Art. ID	232461	Valid From	01/2024	Name	Valve complete 3,5'' pop-up InFino, grey
Position Number		Art. ID	122713	Valid From	01/2024	Name	Special hex key (key size 8mm)
Position Number	5	Art. ID	117554	Valid From	01/2024	Name	Set C-overflow rectangular length = 49 mm SILGRANIT AL
Position Number		Art. ID	117553	Valid From	01/2024	Name	Set C-overflow rectangular length = 84 mm SILGRANIT AL
Position Number	6	Art. ID	125604	Valid From	01/2024	Name	Connection piece overflow length: 125 mm AL
Position Number	7	Art. ID	125614	Valid From	01/2024	Name	Extension pipe overflow Ø 30 mm, length: 130 mm AL
Position Number	8	Art. ID	118927	Valid From	01/2024	Name	Extension pipe Ø 40 mm, length: 250 mm AL
Position Number	9	Art. ID	118518	Valid From	01/2024	Name	Drain angle 90° Ø 40 mm, length: 53 x 59 mm AL
