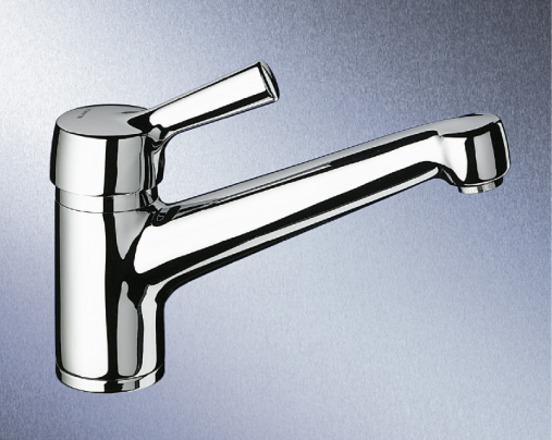

BLANCO ELIPSO, brass galvanic, chrome, Low pressure

BLANCO ELIPSO, brass galvanic, chrome, Low pressure

                    Article Number
                    511229


no longer available since 09/2008

Article-Version: Article also available in other versions!

BLANCO ELIPSO, brass galvanic, black, Low pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	126875	Valid From	02/1999	Name	Lever ELIPSO chrome HA, chrome
Position Number	2	Art. ID	119362	Valid From	02/1999	Name	Hex socket screw for lever 2,5 mm NF+DV
Position Number		Art. ID	123285	Valid From	02/1999	Name	Hex socket screw for lever 2,5 mm VE (replaced by 119362)
Position Number		Art. ID	125742	Valid From	02/1999	Name	Hex socket screw for lever M5x6 2,5 mm HA (replaced by 123285)
Position Number		Art. ID	139188	Valid From	02/1999	Name	Box spanner hex key AF 2,5 mm
Position Number	3	Art. ID	125743	Valid From	02/1999	Name	Color cap lever blue/red HA
Position Number	4	Art. ID	126881	Valid From	02/1999	Name	Cover ring ELIPSO chrome HA
Position Number	5	Art. ID	125745	Valid From	02/1999	Name	Locknut cartridge ELIPSO, MIRA HA
Position Number		Art. ID	127433	Valid From	02/1999	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel
Position Number	6	Art. ID	121492	Valid From	02/1999	Name	Cartridge LP 40 mm KE, blue, Low pressure
Position Number		Art. ID	120089	Valid From	02/1999	Name	Cartridge 40 mm LP KI (replaced by 121492), blue, Low pressure
Position Number		Art. ID	116646	Valid From	02/1999	Name	Cartridge ND (replaced by 120089) MZ, grey, Low pressure
Position Number		Art. ID	116611	Valid From	02/1999	Name	Cartridge ND since 5/2007 (replaced by 116646) HA, grey, Low pressure
Position Number		Art. ID	125818	Valid From	02/1999	Name	Cartridge LP (replaced by 116611), blue, Low pressure

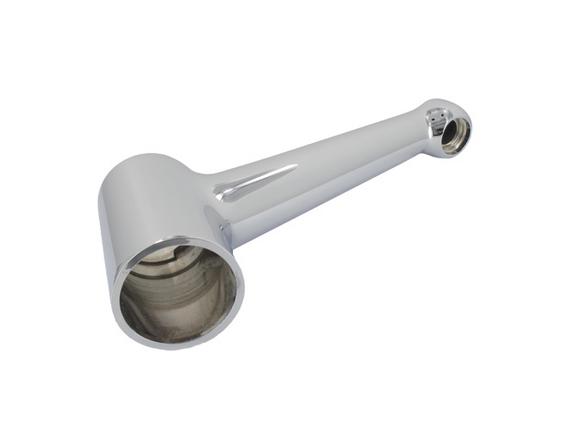

Position Number	7	Art. ID	127158	Valid From	02/1999	Name	Spout ELIPSO chrome HA
Position Number	8	Art. ID	127397	Valid From	02/1999	Name	Jet splitter LP OT M24x1 AF22 chrome AM, Low pressure Spareparts
Position Number		Art. ID	125829	Valid From	02/1999	Name	Jet splitter set LP chrome (replace by 127397) HA, Low pressure Spareparts
Position Number		Art. ID	117501	Valid From	02/1999	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	511324	Valid From	02/1999	Name	Key for jet regulator/-splitter (1 piece)
Position Number	9	Art. ID	126319	Valid From	02/1999	Name	O-ring ARGON,ELIPSO,LAVA,MIRA 2.62 x 29.83
Position Number	10	Art. ID	126498	Valid From	02/1999	Name	Cartridge seat LP ARGON, ELIPSO, LAVA HA
Position Number	11	Art. ID	126789	Valid From	02/1999	Name	Flow limiter ELIPSO-S LP
Position Number	12	Art. ID	126891	Valid From	02/1999	Name	Inner body ELIPSO + base chrome
Position Number	13	Art. ID	139324	Valid From	09/2005	Name	O-Ring 3.53 X 41.28 (Ø~48 mm) HA
Position Number		Art. ID	126812	Valid From	02/1999	Name	O-Ring 3.53 X 42.86 (Ø~50 mm) HA
Position Number		Art. ID	117933	Valid From	02/1999	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	02/1999	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	14	Art. ID	123182	Valid From	01/2019	Name	Assembly set FELISA /-S MZ
Position Number		Art. ID	125761	Valid From	02/1999	Name	Assembly set ARGON,ELIPSO,MIRA,LAVA HA (replaced by 123182)
Position Number	15	Art. ID	116521	Valid From	02/1999	Name	O-ring 3,53 X 42,86 x Ø = 50 mm HA
Position Number	16	Art. ID	126758	Valid From	02/1999	Name	Seal assembly set ARGON, ELIPSO (replaced by 125761 or 128721) HA
Position Number	17	Art. ID	126945	Valid From	02/1999	Name	Stabilization triangle mixer taps BLANCO
Position Number		Art. ID	126759	Valid From	02/1999	Name	Stabilisation plate plastic (replaced by 126945)
Position Number	18	Art. ID	126760	Valid From	02/1999	Name	Metal disc assemblyset (replaced by 125761 or 128721 or 116455 or 139544) HA
Position Number	19	Art. ID	126761	Valid From	02/1999	Name	Nut assembly set ARGON, ELIPSO (replaced by 125761)
Position Number	20	Art. ID	121656	Valid From	02/1999	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913	Valid From	02/1999	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)
Position Number		Art. ID	126492	Valid From	02/1999	Name	Flexible hose blue with integrated seal 50 cm metal M10x1 (replaced by 119913) HA
Position Number	21	Art. ID	128923	Valid From	02/1999	Name	Flexible hose red with integrated seal 50 cm metal M10x1 (replaced by119913) HA
Position Number	22	Art. ID	117464	Valid From	02/1999	Name	Seal HA
Position Number		Art. ID	126478	Valid From	02/1999	Name	Seal 15 x 10 x 3 (replaced by 117464) HA
Position Number	30	Art. ID	117272	Valid From	09/2005	Name	Inner body ELIPSO LP chrome since 09/2005 HA
Position Number	31	Art. ID	139537	Valid From	09/2005	Name	Teflon ring top HA
Position Number	33	Art. ID	139540	Valid From	09/2005	Name	Teflon ring bottom HA
Position Number	34	Art. ID	128721	Valid From	09/2005	Name	Assembly set ELIPSO HA
Position Number	38	Art. ID	126819	Valid From	09/2005	Name	Thread rod ARGON-A
Position Number	39	Art. ID	126820	Valid From	09/2005	Name	Flange HA
Position Number	40	Art. ID	126821	Valid From	09/2005	Name	Nut assembly set ELIPSO,ARGON-A (replaced by 128721)
Position Number	43	Art. ID	126493	Valid From	09/2005	Name	Flow limiter LP ARGON,ELIPSO,LAVA without seals HA, yellow
Position Number		Art. ID	513383	Valid From	09/2005	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	02/1999	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	02/1999	Name	Flexible sealing tape
