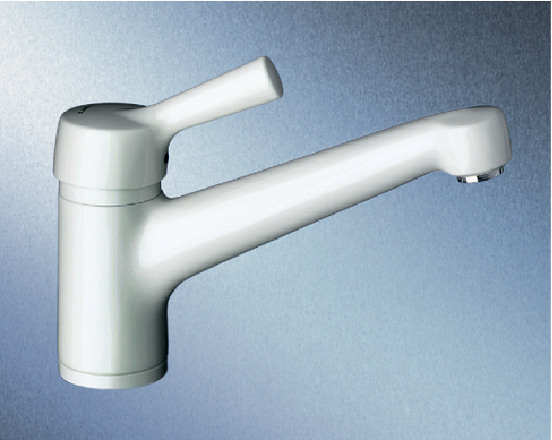

BLANCO ELIPSO, brass galvanic, white, Low pressure

BLANCO ELIPSO, brass galvanic, white, Low pressure

                    Article Number
                    511231


no longer available since 03/2003

Article-Version: Article also available in other versions!

BLANCO ELIPSO, brass galvanic, brown, Low pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name
Position Number	1	Art. ID	126877	Valid From	02/1999	Name	Lever white, white
Position Number	2	Art. ID	119362	Valid From	02/1999	Name	Screw lever hexagon socket 2.5 mm
Position Number		Art. ID	123285	Valid From	02/1999	Name	Screw lever hexagon socket 2.5 mm (replaced by 119362)
Position Number		Art. ID	125742	Valid From	02/1999	Name	Screw lever M5x6 hexagon socket 2.5 mm (replaced by 123285)
Position Number		Art. ID	139188	Valid From	02/1999	Name	Hex key SW 2.5 mm
Position Number	3	Art. ID	125743	Valid From	02/1999	Name	Color cap lever blue/red

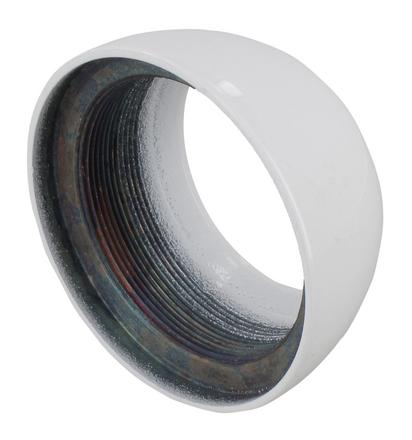

Position Number	4	Art. ID	126883	Valid From	02/1999	Name	Cover ring white
Position Number	5	Art. ID	125745	Valid From	02/1999	Name	Cartridge lock nut
Position Number		Art. ID	127433	Valid From	02/1999	Name	Cartridge spannerhex SW 30 mm and 36 mm
Position Number	6	Art. ID	121492	Valid From	02/1999	Name	Kartusche ND 40 mm, blue, Low pressure
Position Number		Art. ID	120089	Valid From	02/1999	Name	Kartusche ND 40 mm (ersetzt durch 121492), blue, Low pressure
Position Number		Art. ID	116646	Valid From	02/1999	Name	Kartusche ND 40 mm (ersetzt durch 120089), grey, Low pressure
Position Number		Art. ID	116611	Valid From	02/1999	Name	Kartusche ND 40 mm ab 05/2007 (ersetzt durch 116646), grey, Low pressure
Position Number		Art. ID	125818	Valid From	02/1999	Name	Kartusche ND 40 mm (ersetzt durch 116611), blue, Low pressure

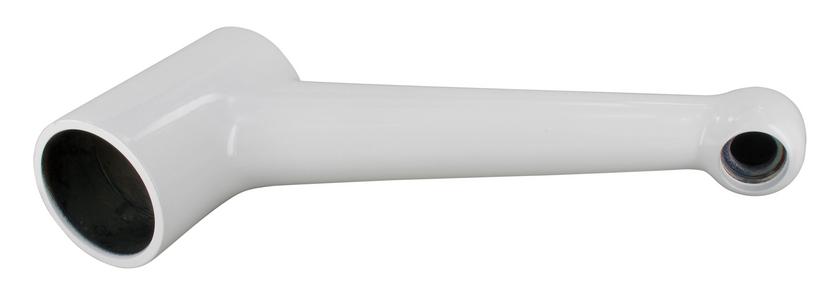

Position Number	7	Art. ID	127160	Valid From	02/1999	Name	Spout white
Position Number	8	Art. ID	126891	Valid From	02/1999	Name	Inner body and base chrome
Position Number	9	Art. ID	123182	Valid From	01/2019	Name	Assembly set
Position Number		Art. ID	125761	Valid From	02/1999	Name	Assembly set (replaced by 123182)
Position Number		Art. ID	126945	Valid From	02/1999	Name	Stabilization triangle kitchen fitprewtergs plastic
Position Number		Art. ID	126758	Valid From	02/1999	Name	Seal Assembly set (replaced by 125761 or 128721)
Position Number		Art. ID	126760	Valid From	02/1999	Name	Metal washer Assembly set (replaced by 125761 or 128721 or 116455 or 139544)
Position Number		Art. ID	126761	Valid From	02/1999	Name	Assembly nut (replaced by 125761)
Position Number	11	Art. ID	127397	Valid From	02/1999	Name	Jet splitter LP chrome OT M24x1, Low pressure Spareparts
Position Number		Art. ID	125829	Valid From	02/1999	Name	Jet splitter LP chrome OT M24x1 SW22 (replaced by 127397), Low pressure Spareparts
Position Number		Art. ID	117501	Valid From	02/1999	Name	Seal aerator TT 11.0 x 15.0 x 1.5 mm
Position Number		Art. ID	511324	Valid From	02/1999	Name	Aerator/distributor key
Position Number	12	Art. ID	121656	Valid From	02/1999	Name	Flexible hose 55 cm metal neutral 3/8"-M10x1 with integrated gasket without label
Position Number		Art. ID	119913	Valid From	02/1999	Name	Flexible hose C 55 cm metal M10x1 with integrated gasket (replaced by 121656)
Position Number		Art. ID	128923	Valid From	02/1999	Name	Flexible hose 50 cm metal red M10x1 with integrated gasket (replaced by 119913)
Position Number		Art. ID	126492	Valid From	02/1999	Name	Flexible hose 50 cm blue metal M10x1 with integrated gasket (replaced by 119913)
Position Number		Art. ID	117464	Valid From	02/1999	Name	Fiber seal
Position Number		Art. ID	126478	Valid From	02/1999	Name	Seal 15 x 10 x 3 mm (replaced by 117464)
Position Number	13	Art. ID	126493	Valid From	02/1999	Name	Flow limiter LP, yellow
Position Number	14	Art. ID	126498	Valid From	02/1999	Name	Cartridge seat LP
Position Number	15	Art. ID	126319	Valid From	02/1999	Name	O-Ring 2.62 x 29.83 mm
Position Number	16	Art. ID	126812	Valid From	02/1999	Name	O-Ring 3.53 x 42.86 mm (Ø 50 mm)
Position Number		Art. ID	117933	Valid From	02/1999	Name	Tap grease 25 g tube Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	02/1999	Name	Tap grease 5 g pouch Berulub Sihaf 2
Position Number		Art. ID	513383	Valid From	09/2005	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	02/1999	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	120055	Valid From	02/1999	Name	Flexible sealing tape (3 x 150 mm)
